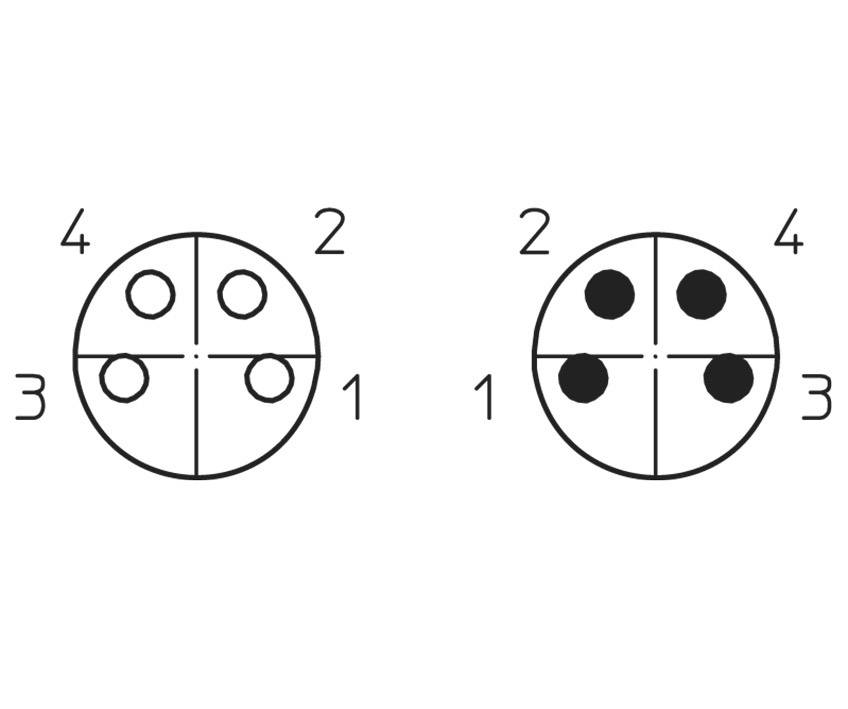

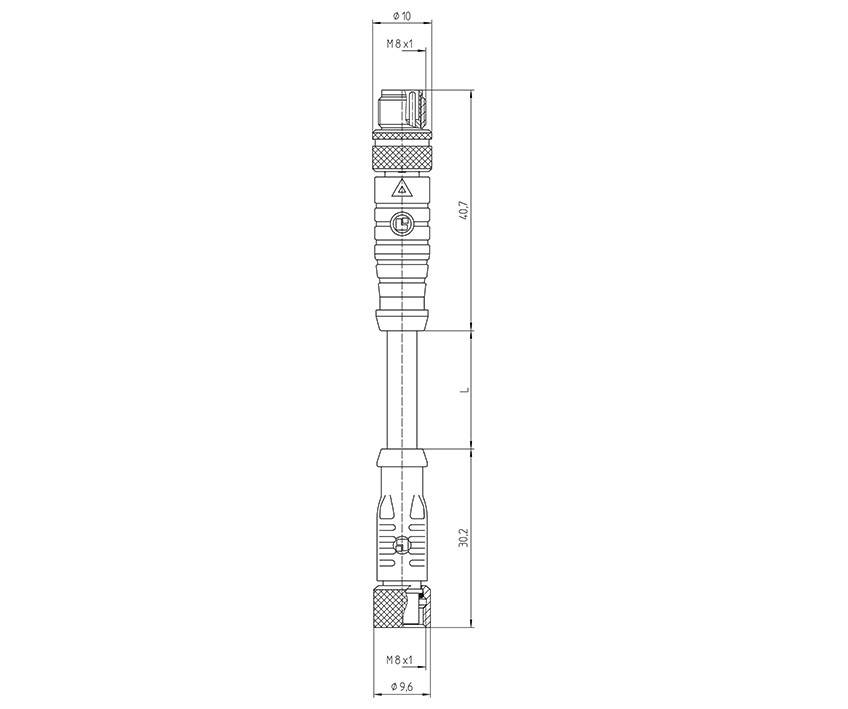

Stroke drawing/circuit diagram
1/3
Stroke drawing/circuit diagram
Lutronic 1056 Sensor/actuator cable M8 0.60 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
M8 socket, straight
No. of pins
4
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Type
0810 0800 04 301 0,6m
- Product type
Sensor/actuator cable
- Connector standard
Sensor connector
- Connection side A
M8 plug, straight
- Connection side B
M8 socket, straight
- No. of pins
4
- Cable length
0.60 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
10 mm
- Factory colour
Black
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Cable colour
Black
- Coding
A
- Contact material
Brass, nickel and gold plated
- Contact surface
TPU
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
1056
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1910549 Lutronic 1056 Sensor/actuator cable M8 0.60 m No. of pins (RJ): 4 1 pc(s)
