Lutronic 1065 Sensor/actuator connector (pre-fab) M12 Connector, straight 2.00 m No. of pins (RJ): 4 1 pc(s)

Technical drawing of a connector with dimensions: Total length 42.8 mm, diameter 14.5 mm, thread M 12 x 1.

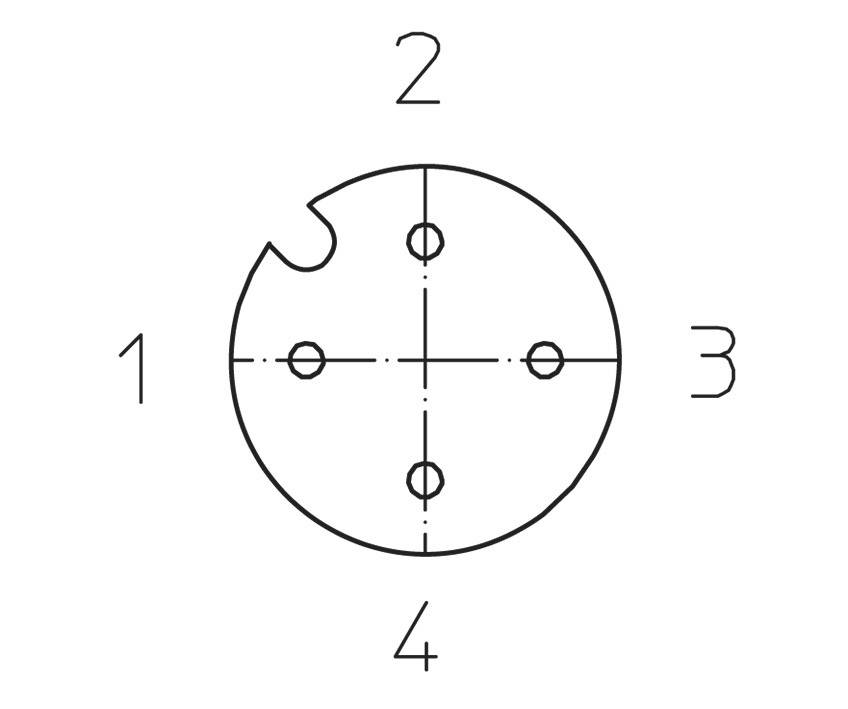

A circular diagram with four numbered points (1 to 4) along the circumference and a notch near point 1.

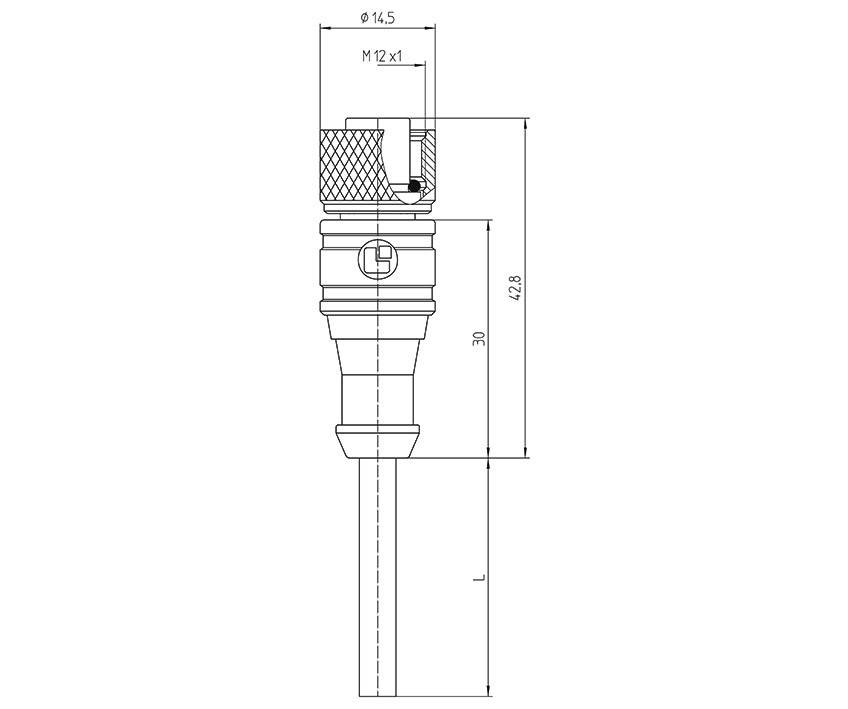

Technical drawing of a connector with M 12 thread. Dimensions: height 42.8 mm, diameter 14.5 mm. Detailed cross-section view.
1/3
Stroke drawing/circuit diagram
Product type
Sensor/actuator connector (pre-fab)
Connector type
Connector, straight
Connection side A
M12 socket, straight
Connection side B
Cable, open end
No. of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
8 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 12.99 / piece)
€ 12.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 8 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Type

1200 04 002 2m

Product type

Sensor/actuator connector (pre-fab)

Connector type

Connector, straight

Connection side A

M12 socket, straight

Connection side B

Cable, open end

No. of pins

4

Cable length

2.00 m

Jacket material

PVC

Nominal voltage

250 V

Nominal current

4.0 A

Nominal current - rounded value

4 A

Outside Ø

14.5 mm

Factory colour

Black

Thread type connection side

M12

Cable colour

Black

Coding

A

Contact material

Brass, nickel and gold plated

Contact surface

PVC

IP67

Min. temperature

-25 °C

Max. temperature

80 °C

Seal type

Screw-on

Manufacturer part #

1065

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1910566 Lutronic 1065 Sensor/actuator connector (pre-fab) M12 Connector, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
