Lutronic 1073 Sensor/actuator connector (pre-fab) M12 Connector, right angle 5.00 m No. of pins (RJ): 4 1 pc(s)

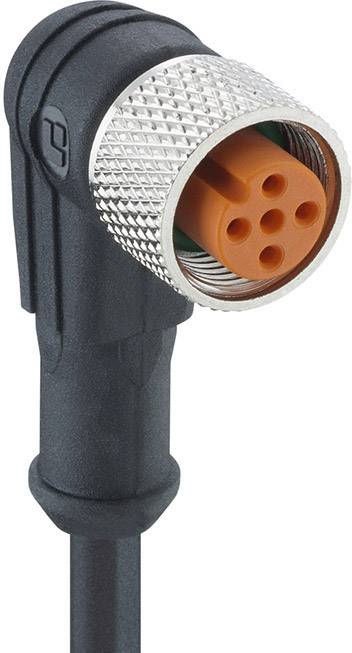

Black connector with metallic rim and orange insert.
Diagram with a circle divided into four equal segments, numbered from 1 to 4. Segment 1 has an indentation.

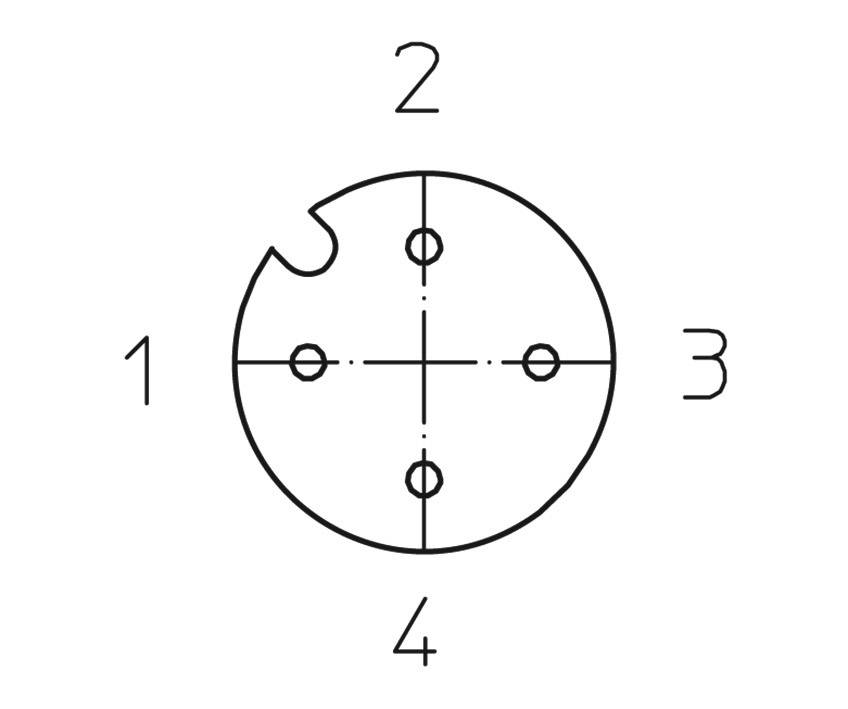

A circular diagram with four numbered segments: 1 top left, 2 top, 3 right, 4 bottom. Segment 1 has a notch.

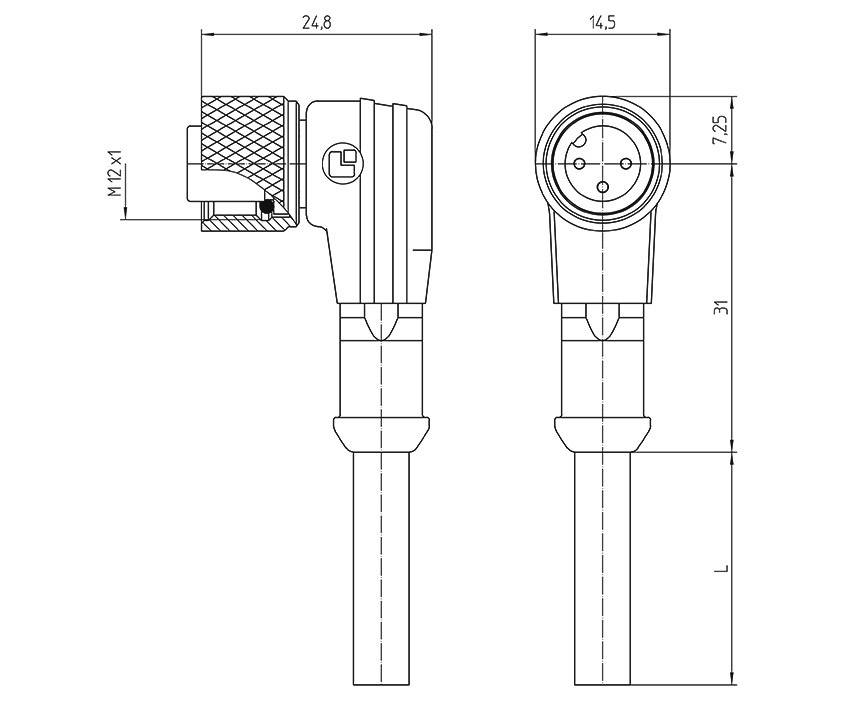

Technical drawing of an angled plug connector. Dimensions are specified: length 24.8 mm, width 14.5 mm, height 31 mm.
1/4
Product type
Sensor/actuator connector (pre-fab)
Connector type
Connector, right angle
Connector standard
Sensor connector
Connection side A
M12 socket, right angle
Connection side B
Cable, open end
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
18 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 16.99 / piece)
€ 16.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

1205 04 301 5m

Product type

Sensor/actuator connector (pre-fab)

Connector type

Connector, right angle

Connector standard

Sensor connector

Connection side A

M12 socket, right angle

Connection side B

Cable, open end

No. of pins

4

Cable length

5.00 m

Jacket material

PUR

Nominal voltage

250 V

Nominal current

4.0 A

Nominal current - rounded value

4 A

Outside Ø

14.5 mm

Factory colour

Black

Thread type connection side

M12

Cable colour

Black

Coding

A

Contact material

Brass, nickel and gold plated

Contact surface

TPU

IP67

Min. temperature

-25 °C

Max. temperature

80 °C

Seal type

Screw-on

Manufacturer part #

1073

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1910544 Lutronic 1073 Sensor/actuator connector (pre-fab) M12 Connector, right angle 5.00 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1910544 Lutronic 1073 Sensor/actuator connector (pre-fab) M12 Connector, right angle 5.00 m No. of pins (RJ): 4 1 pc(s)
