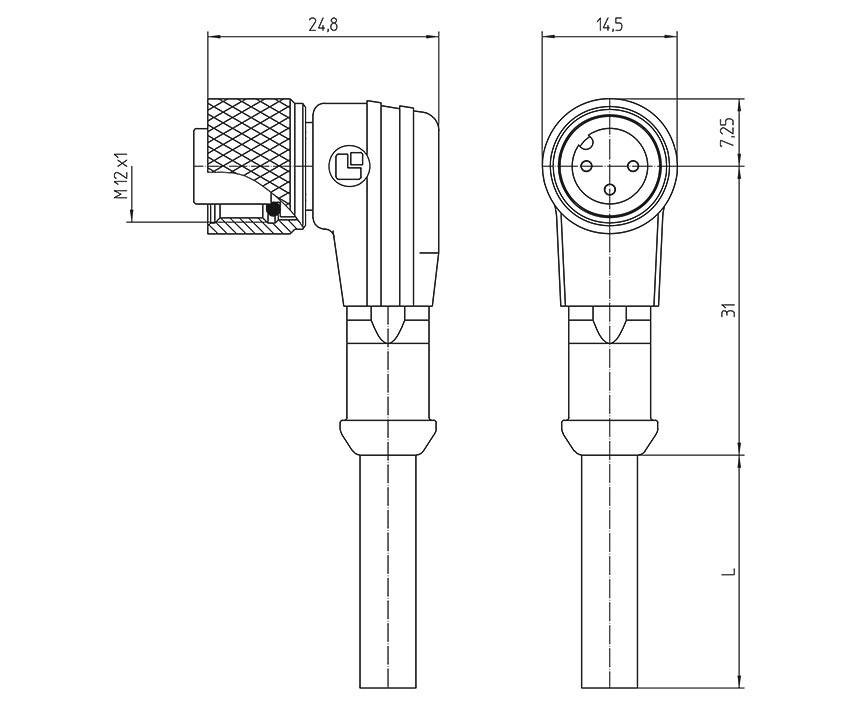

Stroke drawing/circuit diagram
1/3
Stroke drawing/circuit diagram
Lutronic 1078 Sensor/actuator connector (pre-fab) M12 Connector, right angle 2.00 m No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Connector, right angle
Connector standard
Sensor connector
Connection side A
M12 socket, right angle
Connection side B
Cable, open end
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.95
€ 20.89
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Technical specifications
- Type
1205 08 004 2m
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Connector, right angle
- Connector standard
Sensor connector
- Connection side A
M12 socket, right angle
- Connection side B
Cable, open end

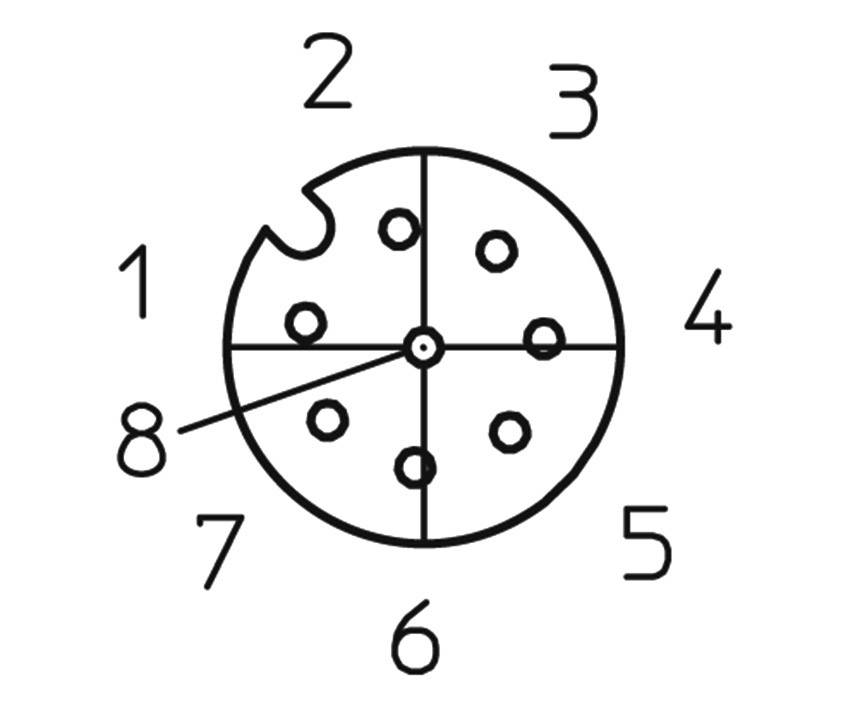

- No. of pins
8
- Cable length
2.00 m
- Jacket material
PVC
- Nominal voltage
30 V
- Nominal current
2.0 A
- Nominal current - rounded value
2 A
- Outside Ø
14.5 mm
- Factory colour
Black
- Thread type connection side
M12
- Cable colour
Black
- Coding
A
- Contact material
Brass, nickel and gold plated
- Contact surface
PVC
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
1078
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1910604 Lutronic 1078 Sensor/actuator connector (pre-fab) M12 Connector, right angle 2.00 m No. of pins (RJ): 8 1 pc(s)
