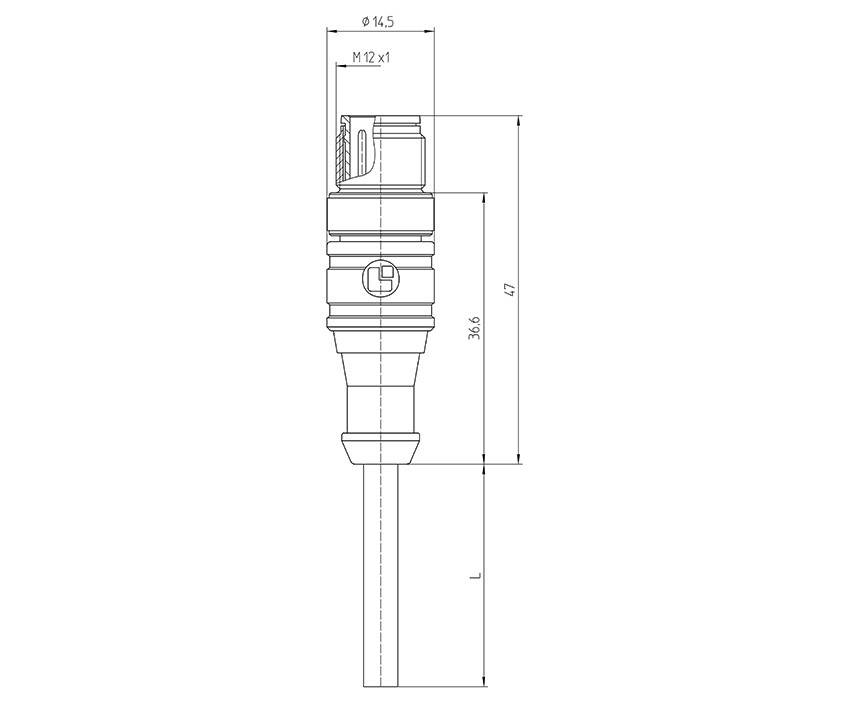

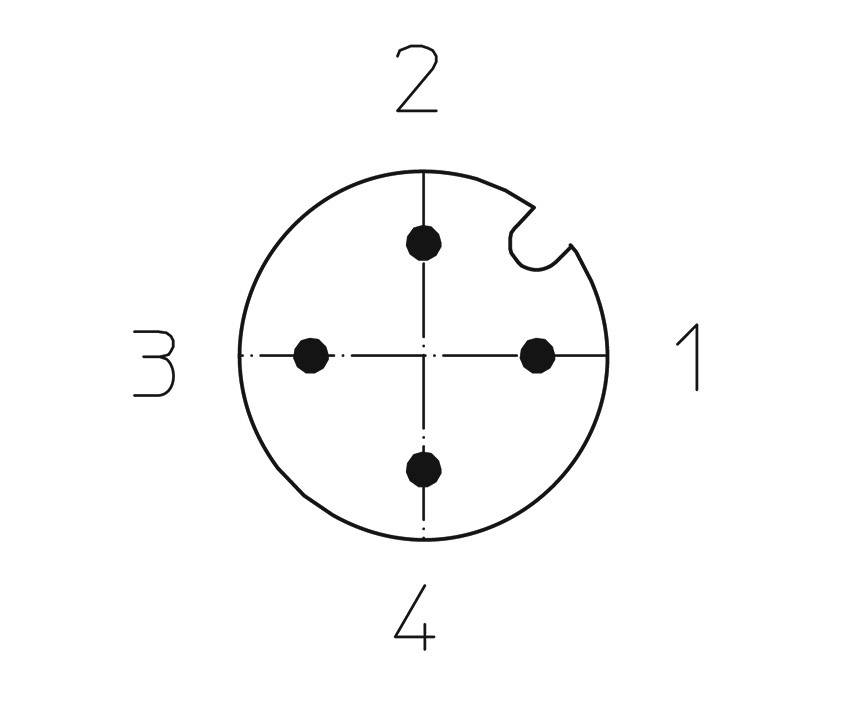

Stroke drawing/circuit diagram
Lutronic 1083 Sensor/actuator connector (pre-fab) M12 Plug, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
Cable, open end
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 11.99 / piece)
€ 11.99
incl. VAT
Only 9 Piece(s) available
Technical specifications
- Type
1210 04 002 2m
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
M12 plug, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
2.00 m
- Jacket material
PVC
- Nominal voltage
250 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
14.5 mm
- Factory colour
Black
- Thread type connection side
M12
- Cable colour
Black
- Coding
A
- Contact material
Brass, nickel and gold plated
- Contact surface
PVC
IP67
- Min. temperature
-25 °C
- Max. temperature
+80 °C
- Seal type
Screw-on
- Manufacturer part #
1083
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1910558 Lutronic 1083 Sensor/actuator connector (pre-fab) M12 Plug, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
