Lutronic 1095 Sensor/actuator cable M12 Plug, straight 5.00 m No. of pins (RJ): 4 1 pc(s)

Drawing of a cylindrical connector with precise dimensional specifications and thread indications. Diameter and thread sizes are particularly distinctive.

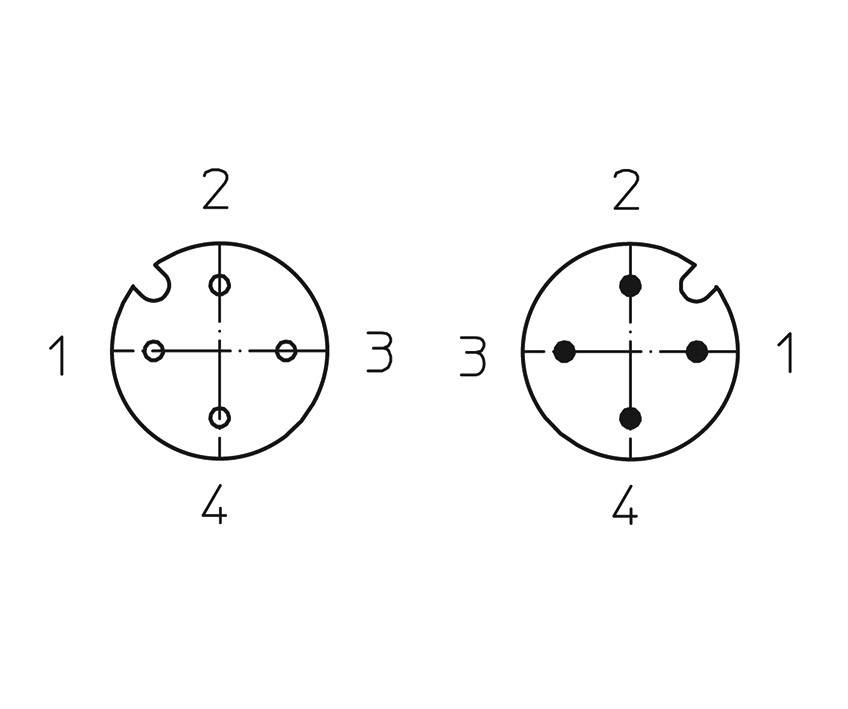

'Wiring diagram for 4-pole control cable' with 2 open positions on the left, 2 closed positions on the right.

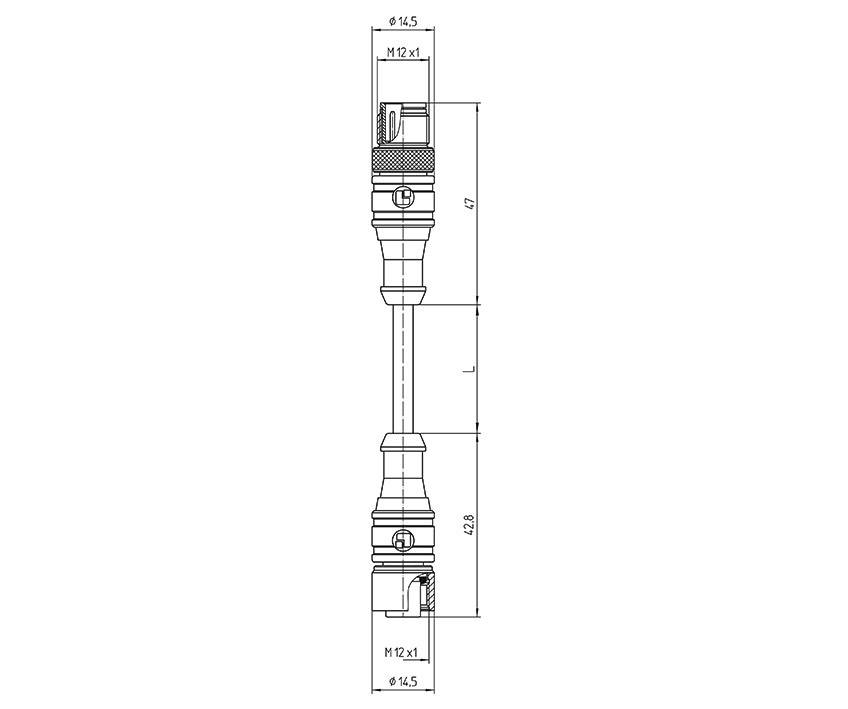

Technical drawing of a connector with dimensions. Shows detailed view and dimensions of the component in side profile.
1/3

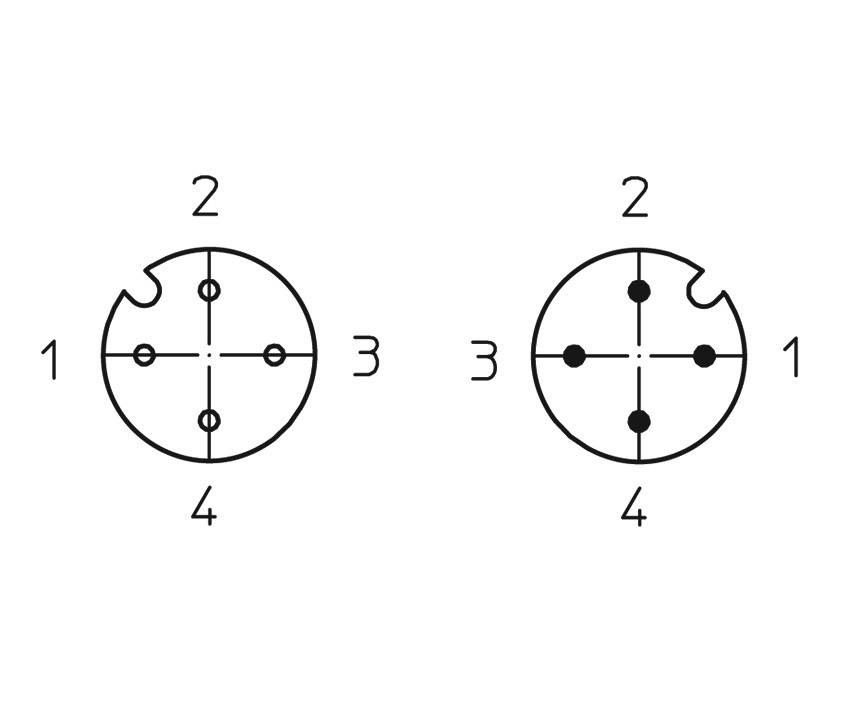

Stroke drawing/circuit diagram
Product type
Sensor/actuator cable
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
M12 socket, straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 25.99 / piece)
€ 25.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Type

1210 1200 04 301 5m

Product type

Sensor/actuator cable

Connector type

Plug, straight

Connector standard

Sensor connector

Connection side A

M12 plug, straight

Connection side B

M12 socket, straight

No. of pins

4

Cable length

5.00 m

Jacket material

PUR

Nominal voltage

250 V

Nominal current

4.0 A

Nominal current - rounded value

4 A

Outside Ø

14.5 mm

Factory colour

Black

Thread type connection side

M12

Thread type (wiring and installation)

M12

Cable colour

Black

Coding

A

Contact material

Brass, nickel and gold plated

Contact surface

TPU

IP67

Min. temperature

-25 °C

Max. temperature

80 °C

Seal type

Screw-on

Manufacturer part #

1095

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1910578 Lutronic 1095 Sensor/actuator cable M12 Plug, straight 5.00 m No. of pins (RJ): 4 1 pc(s)
