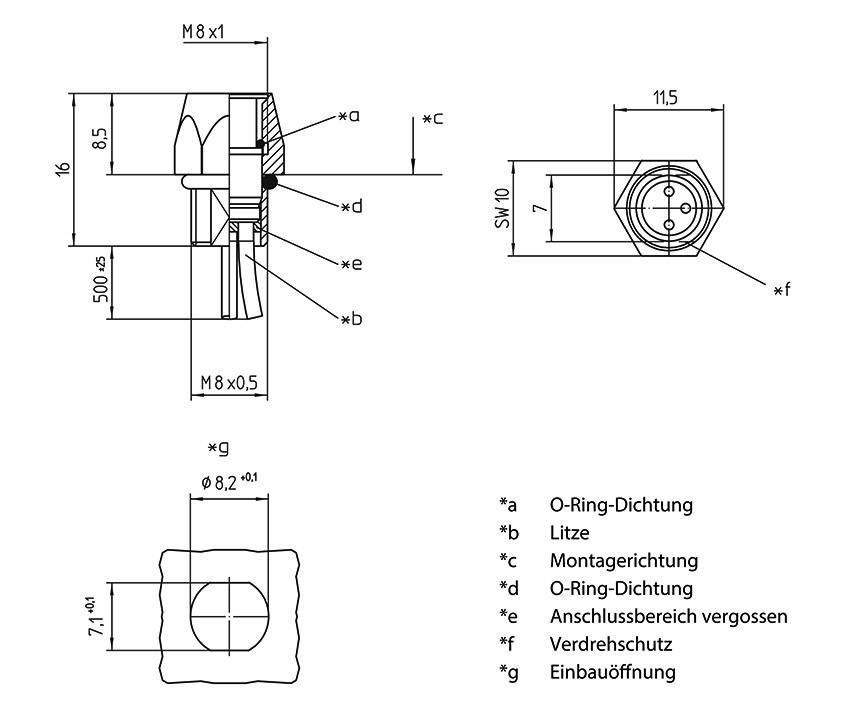

Stroke drawing/circuit diagram
1/3

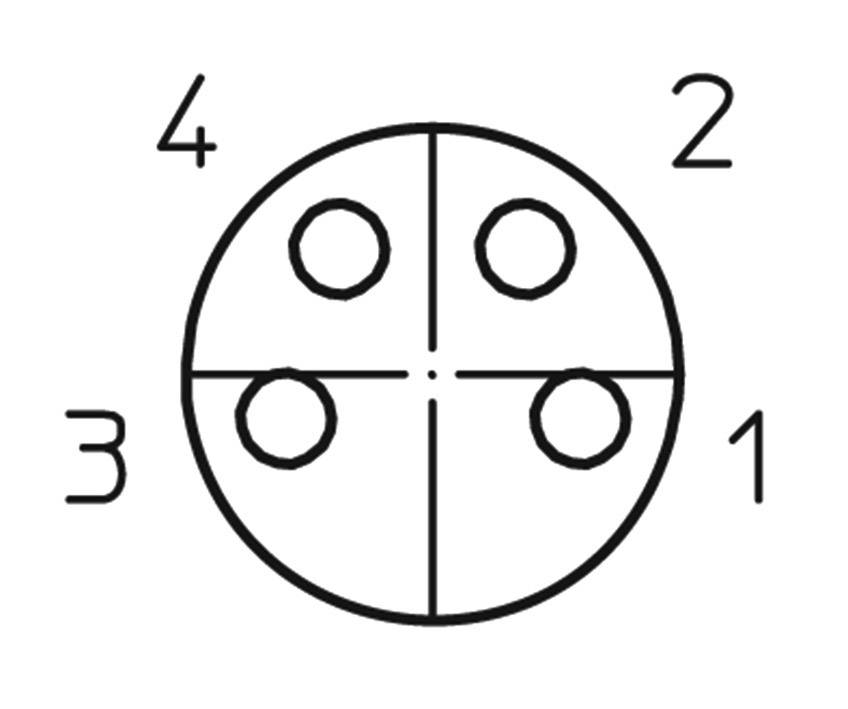

Stroke drawing/circuit diagram
Lutronic 1223 Sensor/actuator built-in connector M8 Socket, built-in 0.50 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Socket, built-in
Connector standard
Sensor connector
Connection side A
M8 socket, built-in
Connection side B
Cable, open end
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Technical specifications
- Type
0820 04 T8CW 0,5m
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, built-in
- Connector standard
Sensor connector
- Connection side A
M8 socket, built-in
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
0.50 m
- Jacket material
PVC
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
11.5 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Screw terminal
- Factory colour
Metal
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Coding
A
- Contact material
Brass, nickel and gold plated
- Contact surface
Brass nickel plated
- Sensor/actuator connectivity fittings
M8 front panel fitting
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
1223
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1910633 Lutronic 1223 Sensor/actuator built-in connector M8 Socket, built-in 0.50 m No. of pins (RJ): 4 1 pc(s)
