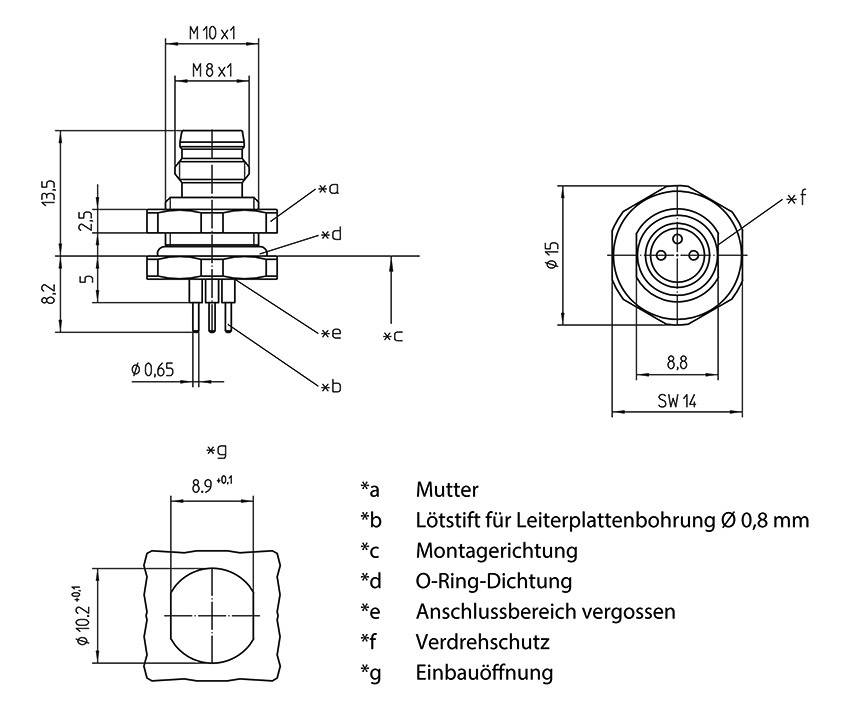

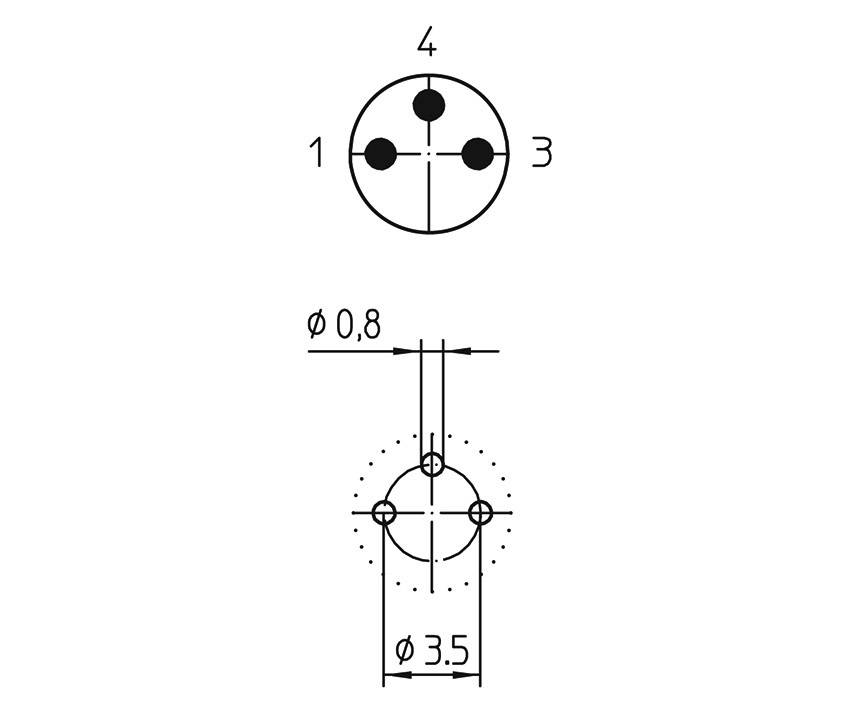

Stroke drawing/circuit diagram
Lutronic 1224 Sensor/actuator built-in connector M8 Plug, mount No. of pins (RJ): 3 1 pc(s)
Product type
Sensor/actuator built-in connector
Connector type
Plug, mount
Connector standard
Sensor connector
Connection side A
M8 plug, built-in
No. of pins
3
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 7.99 / piece)
€ 7.99
incl. VAT
Only 7 Piece(s) available
Technical specifications
- Type
0831 03 T10CP
- Product type
Sensor/actuator built-in connector
- Connector type
Plug, mount
- Connector standard
Sensor connector
- Connection side A
M8 plug, built-in
- No. of pins
3
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
15 mm
- Connection
Print
Soldering
- Factory colour
Metal
- Thread type connection side
M8
- Thread type (wiring and installation)
M10
- Coding
A
- Contact material
Brass, nickel and gold plated
- Contact surface
Brass nickel plated
- Sensor/actuator connectivity fittings
M8 rear panel fitting
IP67
- Features
A-coded
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
1224
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1910653 Lutronic 1224 Sensor/actuator built-in connector M8 Plug, mount No. of pins (RJ): 3 1 pc(s)
