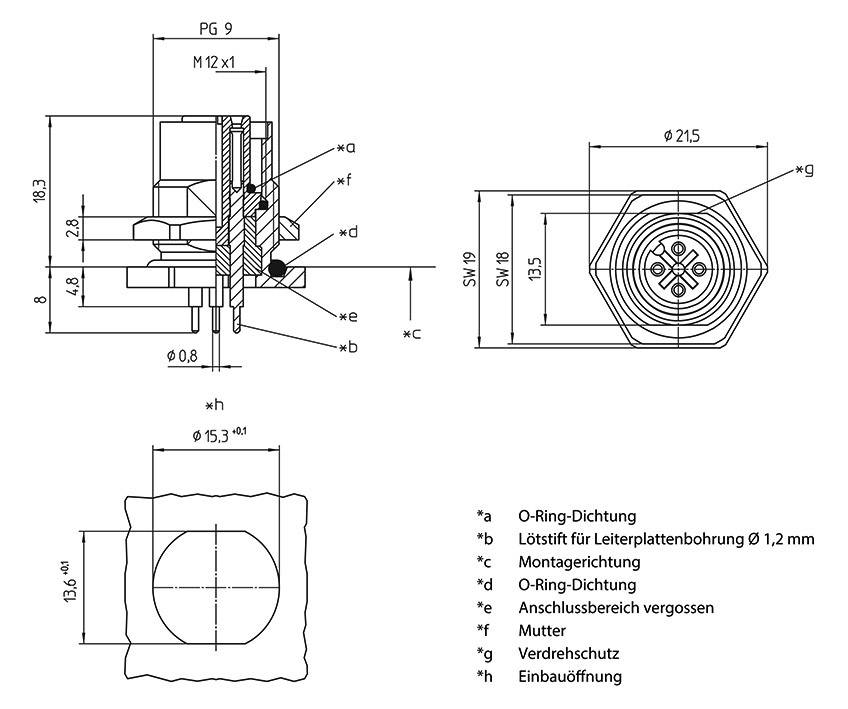

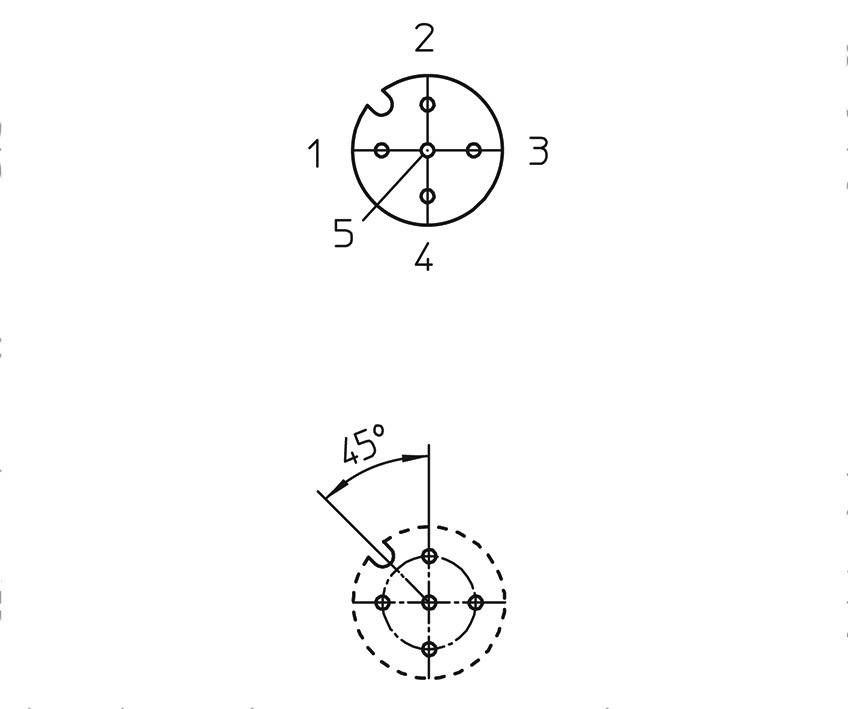

Stroke drawing/circuit diagram

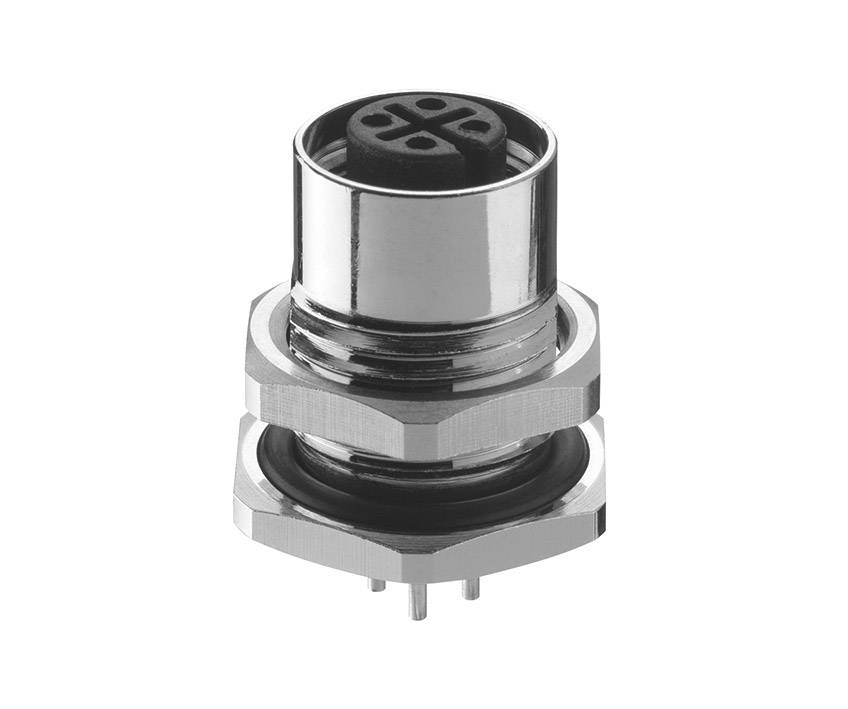

Lutronic 1229 Sensor/actuator built-in connector M12 Socket, built-in No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator built-in connector
Connector type
Socket, built-in
Connector standard
Sensor connector
Connection side A
M12 socket, built-in
No. of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 11.99 / piece)
€ 11.99
incl. VAT
14-day return policy included
Technical specifications
- Type
1221 05 T9CP
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, built-in
- Connector standard
Sensor connector
- Connection side A
M12 socket, built-in
- No. of pins
5
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
21.5 mm
- Connection
Print
Soldering
- Factory colour
Metal
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Coding
A
- Contact material
Brass, nickel and gold plated
- Contact surface
Brass nickel plated
- Sensor/actuator connectivity fittings
PG9 rear panel fitting
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
1229
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1910614 Lutronic 1229 Sensor/actuator built-in connector M12 Socket, built-in No. of pins (RJ): 5 1 pc(s)
