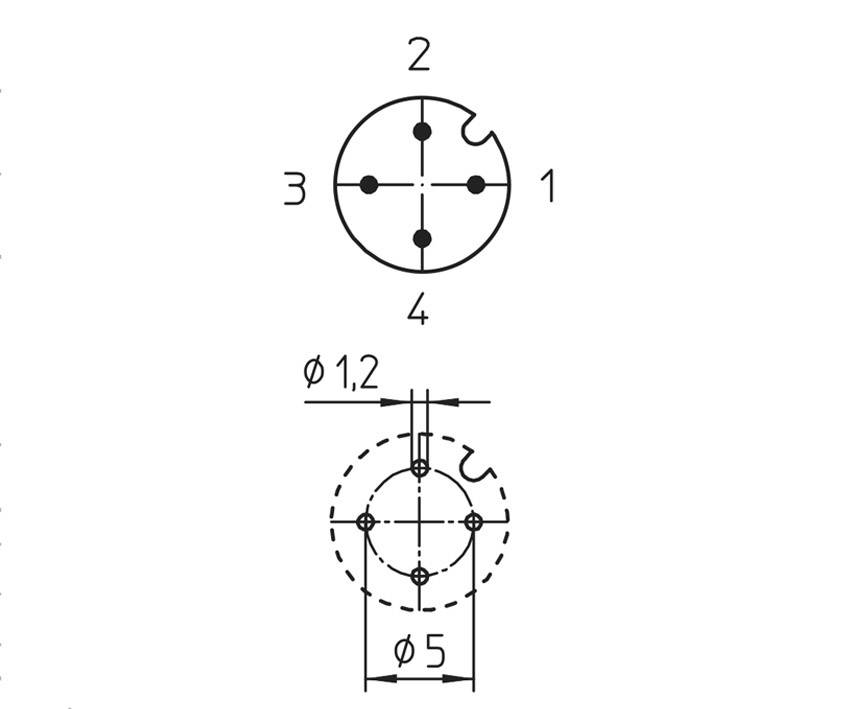

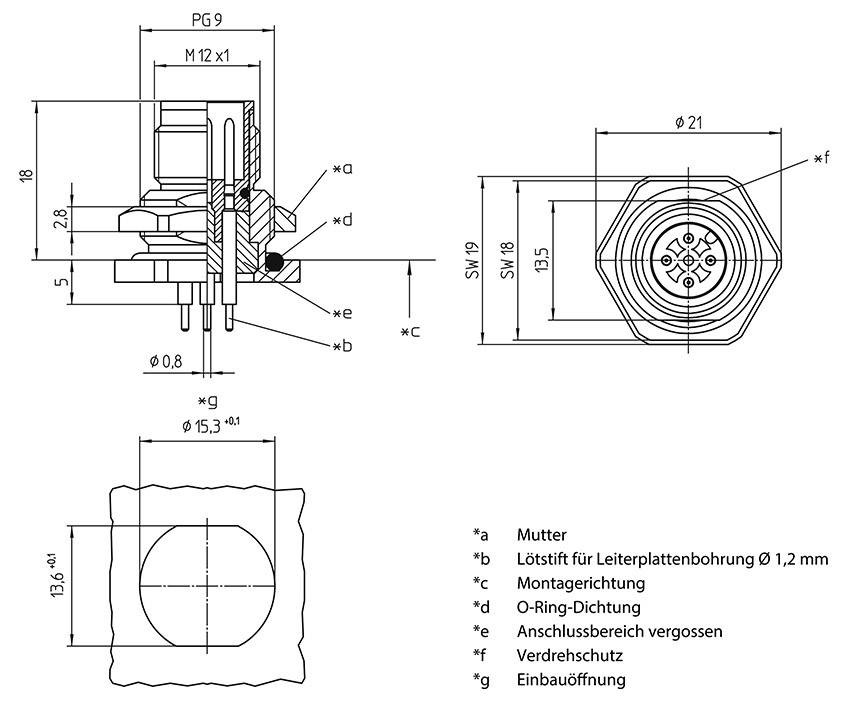

Stroke drawing/circuit diagram
1/3
Stroke drawing/circuit diagram
Lutronic 1234 Sensor/actuator built-in connector M12 Plug, mount No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Plug, mount
Connector standard
Sensor connector
Connection side A
M12 plug, built-in
No. of pins
4
Datasheet (PDF)
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Technical specifications
- Type
1231 04 T9CP
- Product type
Sensor/actuator built-in connector
- Connector type
Plug, mount
- Connector standard
Sensor connector
- Connection side A
M12 plug, built-in
- No. of pins
4
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
21 mm
- Connection
Print
Soldering
- Factory colour
Metal
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Coding
A
- Contact material
Brass, nickel and gold plated
- Contact surface
Brass nickel plated
- Sensor/actuator connectivity fittings
PG9 rear panel fitting
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
1234
- Content
1 pc(s)
