Lutronic 2340 02 T06 CB A DIN connector Connector, straight Total number of pins: 2 1 pc(s)

A black, cylindrical electrical plug with two socket connections and a marked 'L' position for cable connection.

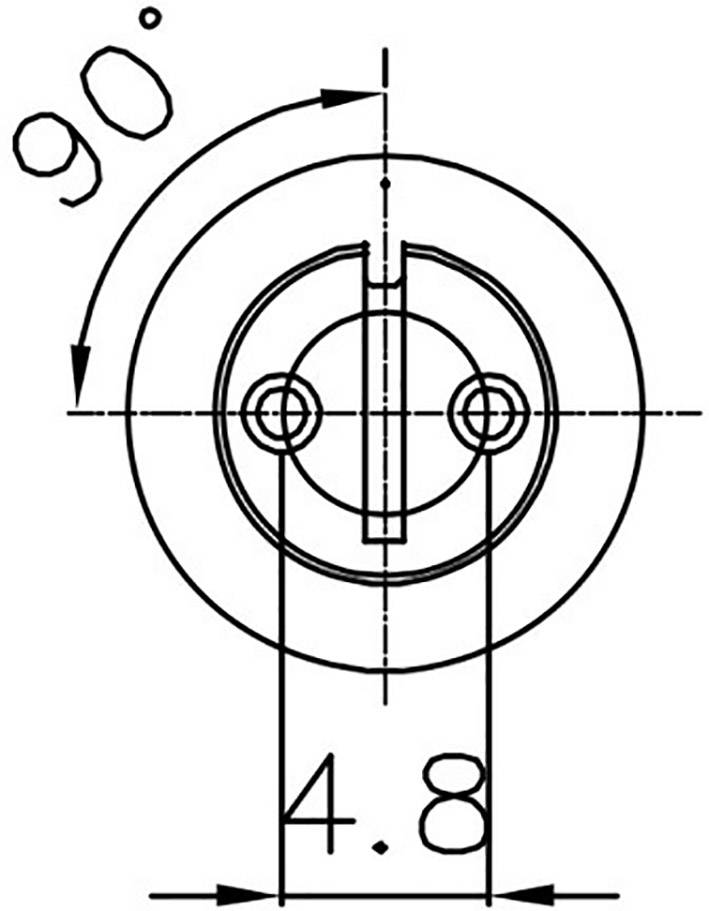

Technical drawing of a circular component with a rotation angle of 90 degrees and a dimensional specification of 4.8.
1/2
Image similar
Product type
DIN connector
Connector type
Connector, straight
Total no. of pins
2
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
90 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.49 / piece)
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

2340 02 T06 CB A

Product type

DIN connector

Connector type

Connector, straight

Total no. of pins

2

Connection

Soldering

Factory colour

Black

Content

1 pc(s)

Max. temperature

80 °C

Nominal current

5 A

Min. temperature

-40 °C

Nominal current - rounded value

5 A

Seal

Quick Lock

Nominal voltage

125 V

Contact material

Bronze, gold plated

Cable Ø (max.)

6 mm

Cable Ø up to

3 mm

Case material

PBT

Manufacturer part #

2340 02 T06 CB A

Cable Ø range

3 - 6 mm

Number of pins

2

IP67 (when connected)

Documents & Downloads

Datasheet

Datasheet 1784492 Lutronic 2340 02 T06 CB A DIN connector Connector, straight Total number of pins: 2 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1784492 Lutronic 2340 02 T06 CB A DIN connector Connector, straight Total number of pins: 2 1 pc(s)
