1/2
Image similar

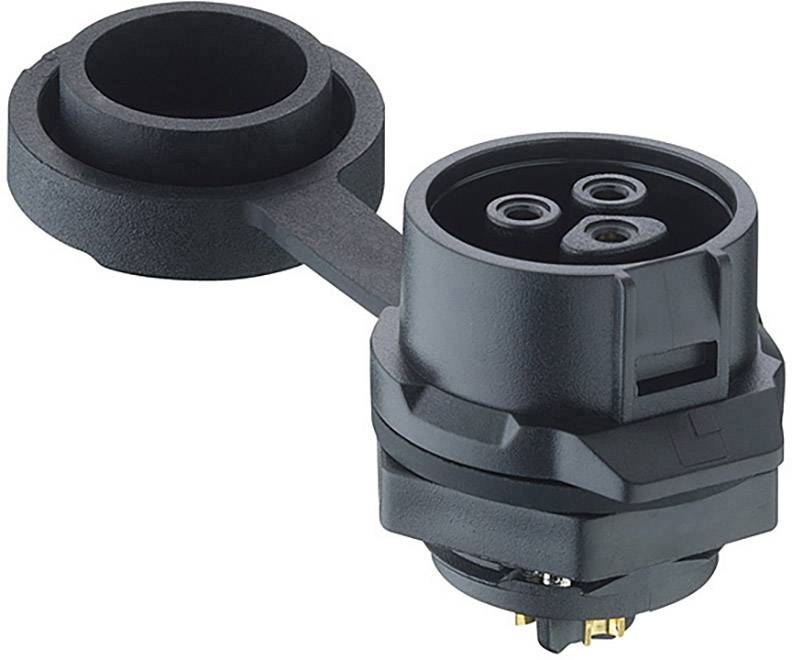

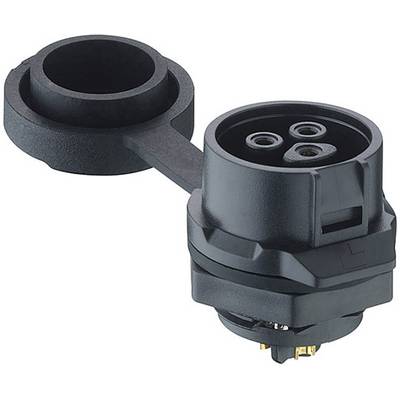

Lutronic 2420 08 T18 CB 100 DIN connector Connector, mount Total number of pins: 8 1 pc(s)
Product type
DIN connector
Connector type
Connector, mount
Total no. of pins
8
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 8.49 / piece)
€ 8.49
incl. VAT
14-day return policy included
Technical specifications
- Type
2420 08 T18 CB 100
- Product type
DIN connector
- Connector type
Connector, mount
- Total no. of pins
8
- Connection
Soldering
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
80 °C
- Nominal current
5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
5 A
- Seal
Quick Lock
- Nominal voltage
400 V
- Contact material
Bronze, gold plated
- Case material
PBT
- Mounting hole diameter
18,5 mm
- Manufacturer part #
2420 08 T18 CB 100
- Number of pins
8
IP67 (when connected)
Documents & Downloads
Datasheet
Datasheet 1784496 Lutronic 2420 08 T18 CB 100 DIN connector Connector, mount Total number of pins: 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1784496 Lutronic 2420 08 T18 CB 100 DIN connector Connector, mount Total number of pins: 8 1 pc(s)
