Lutronic 2650 02 T12 CB T DIN connector Plug, straight Total number of pins: 2 1 pc(s)

Electrical connector with a black housing and silver locking mechanism. Marked with 'Push' for easy release.

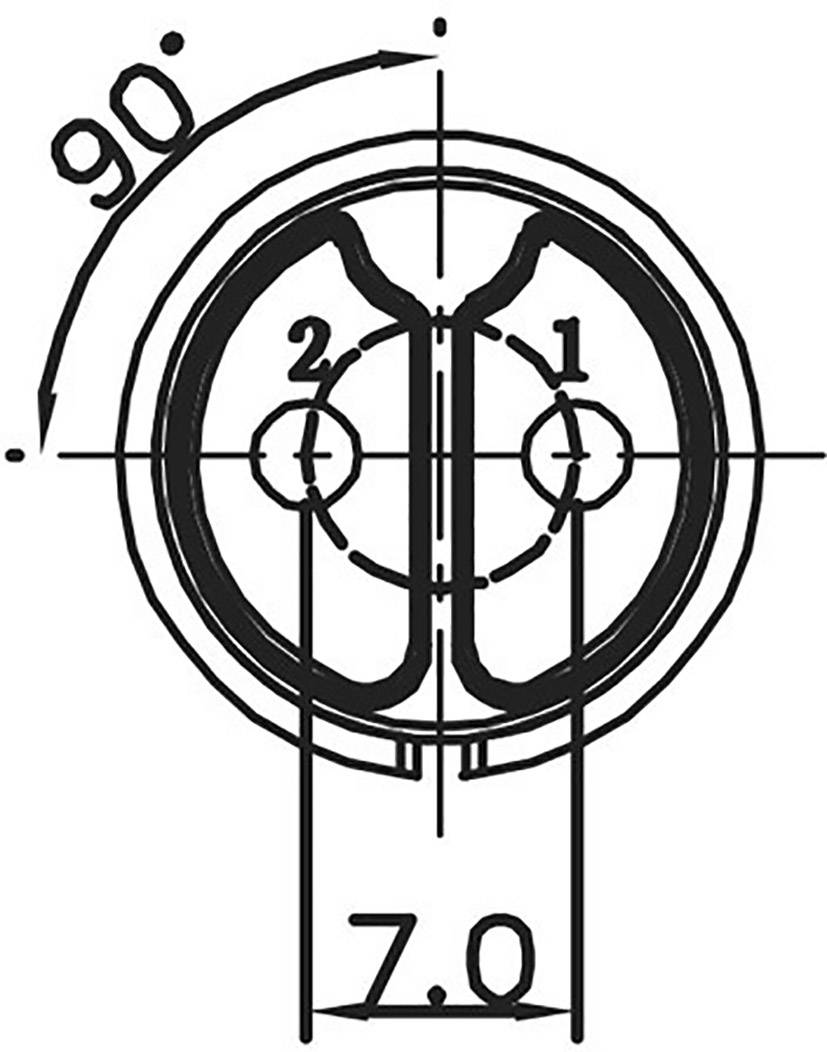

Technical drawing of a disc with two central circles, marked as '1' and '2'. The angle is 90 degrees, the diameter 7.0.
1/2
Image similar
Product type
DIN connector
Connector type
Plug, straight
Total no. of pins
2
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
20 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 13.99 / piece)
€ 13.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

2650 02 T12 CB T

Product type

DIN connector

Connector type

Plug, straight

Total no. of pins

2

Connection

Soldering

Factory colour

Black

Content

1 pc(s)

Max. temperature

80 °C

Nominal current

20 A

Min. temperature

-40 °C

Nominal current - rounded value

20 A

Seal

Quick Lock

Nominal voltage

500 V

Contact material

Brass gold plated

Cable Ø (max.)

11.5 mm

Cable Ø up to

4 mm

Case material

PBT

Manufacturer part #

2650 02 T12 CB T

Cable Ø range

4 - 11.5 mm

Number of pins

2

IP67 (when connected)

Documents & Downloads

Datasheet

Datasheet 1784517 Lutronic 2650 02 T12 CB T DIN connector Plug, straight Total number of pins: 2 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1784517 Lutronic 2650 02 T12 CB T DIN connector Plug, straight Total number of pins: 2 1 pc(s)
