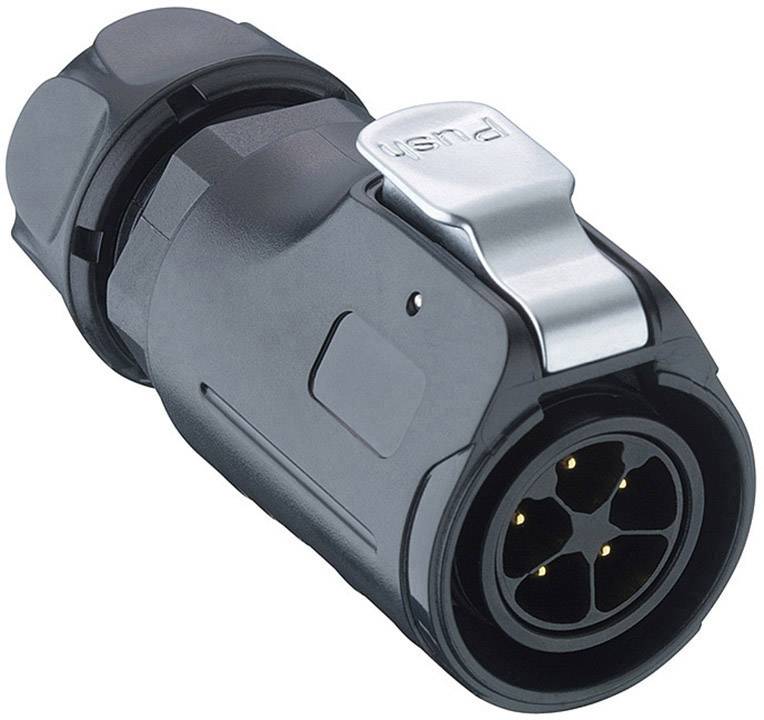

Lutronic 2650 05 T12 CB T DIN connector Plug, straight Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
DIN connector
Connector type
Plug, straight
Total no. of pins
5
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Technical specifications
- Type
2650 05 T12 CB T
- Product type
DIN connector
- Connector type
Plug, straight
- Total no. of pins
5
- Connection
Soldering
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
80 °C
- Nominal current
12 A
- Min. temperature
-40 °C
- Nominal current - rounded value
12 A
- Seal
Quick Lock
- Nominal voltage
500 V
- Contact material
Brass gold plated
- Cable Ø (max.)
11.5 mm
- Cable Ø up to
4 mm
- Case material
PBT
- Manufacturer part #
2650 05 T12 CB T
- Cable Ø range
4 - 11.5 mm
- Number of pins
5
IP67 (when connected)
Documents & Downloads
Datasheet
Datasheet 1784533 Lutronic 2650 05 T12 CB T DIN connector Plug, straight Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1784533 Lutronic 2650 05 T12 CB T DIN connector Plug, straight Total number of pins: 5 1 pc(s)
