Luxonis Camera unit MBS-SES-267-02
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 154.99 / piece)
€ 154.99
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Sensor IMX214
- DFOV / HFOV / VFOV:81° / 69° / 54°
- Resolution 13MP (4208x3120)
- Focus:FF: 8 cm - infinity
- Max. Frame rate: 60FPS
- Product type
Camera unit
- Length
54.2 mm
- Width
36 mm
- Manufacturer part #
MBS-SES-267-02
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3089862 Luxonis Camera unit MBS-SES-267-02
Description

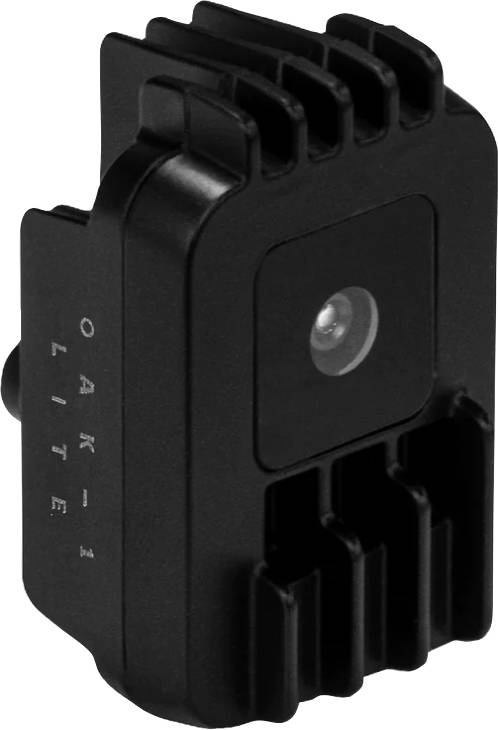

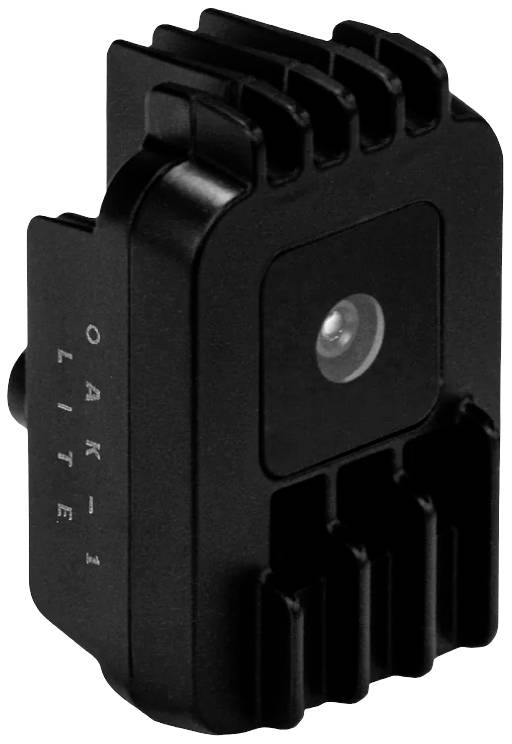

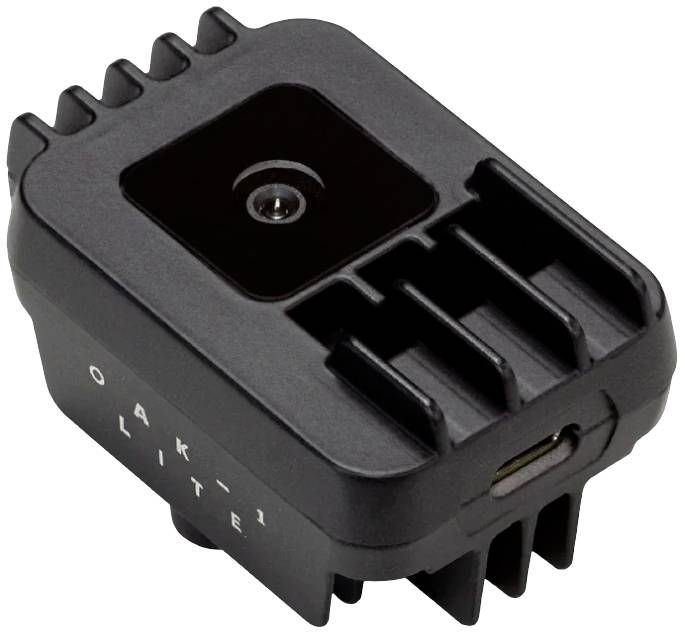

The OAK-1 Lite is the lighter-weight version of the OAK-1 and has another 13MP color camera. It is perfectly suitable for applications that require a processing power of the Robotics Vision Core 2 VPU (RVC2) but do not require deep perception.
Features

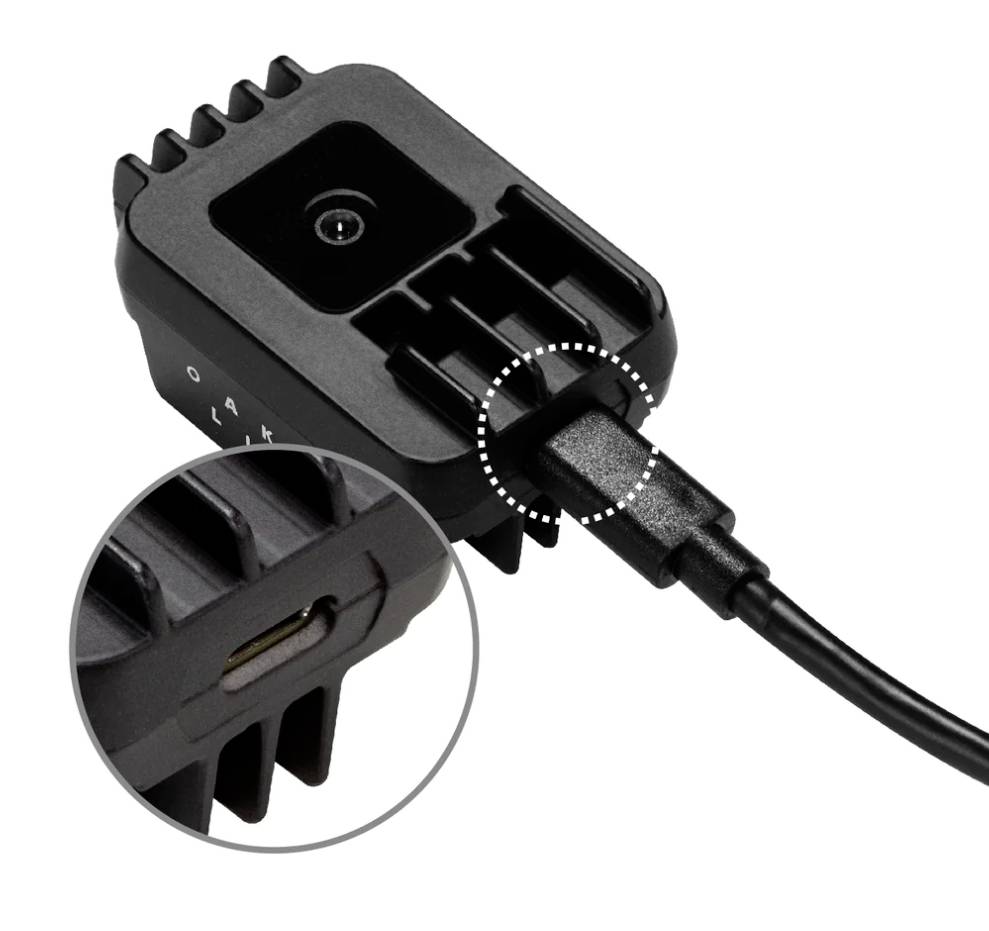

USB-C connection, supports USB2- and USB3-protocol (5 Gbps/10 Gbps)
4TOPS computing power (1.4 TOPS for AI)
Runs with every AI-model
ENCODING: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
Computer Vision: Warp/dewarp, resize, crop , edge detection, feature tracking
Object tracking: 2D and 3D

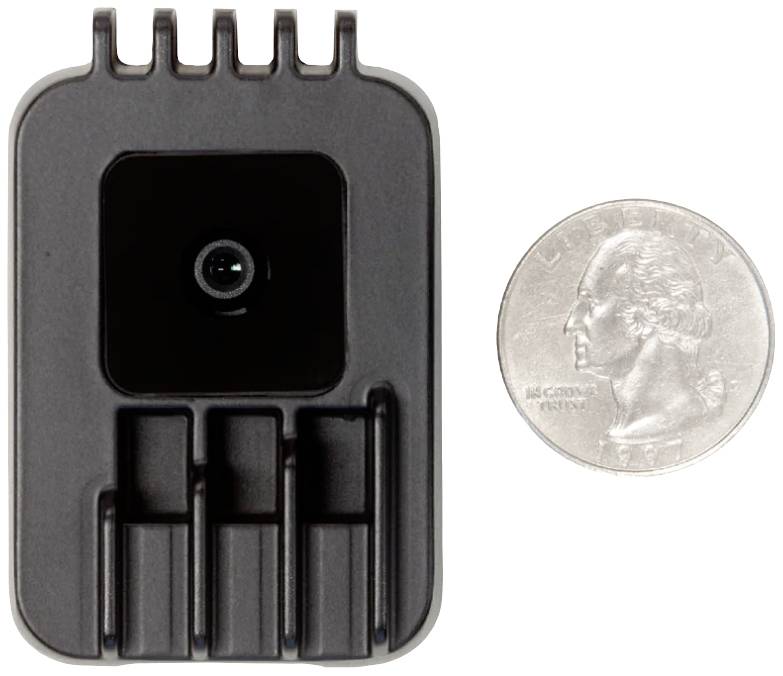

Size: 36x54.2x27.8 mm
Weight: 53.1 g
Auto-Focus: Lens position is dynamically controlled using electromagnets, recommended for objects between 10 cm and 50 cm from the device. Manually adjustable to specific focus position, use DepthAI API
This text is machine translated.
Features
USB-C connection, supports USB2- and USB3-protocol (5 Gbps/10 Gbps)
4TOPS computing power (1.4 TOPS for AI)
Runs with every AI-model
ENCODING: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
Computer Vision: Warp/dewarp, resize, crop , edge detection, feature tracking
Object tracking: 2D and 3D
Size: 36x54.2x27.8 mm
Weight: 53.1 g
Auto-Focus: Lens position is dynamically controlled using electromagnets, recommended for objects between 10 cm and 50 cm from the device. Manually adjustable to specific focus position, use DepthAI API
This text is machine translated.
Features
- Version: Auto-Focus
- Lighter version of the OAK-1
- USB-C port
- 4 TOPS processing power
Scope of delivery
- OAK-1 Lite camera
- Cleaning cloth
- Cable USB-ca, 1m ( for Lite W)
