Luxonis Expansion board MBS-SES-275
EAN:
Part number:
Item no:
Total (€ 349.00 / piece)
€ 349.00
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Dimensions 30 x 45 x 4 mm
- Weight: 5 g
- Product type
Expansion board
- Length
30 mm
- Width
45 mm
- Manufacturer part #
MBS-SES-275
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3204940 Luxonis Expansion board MBS-SES-275
Description

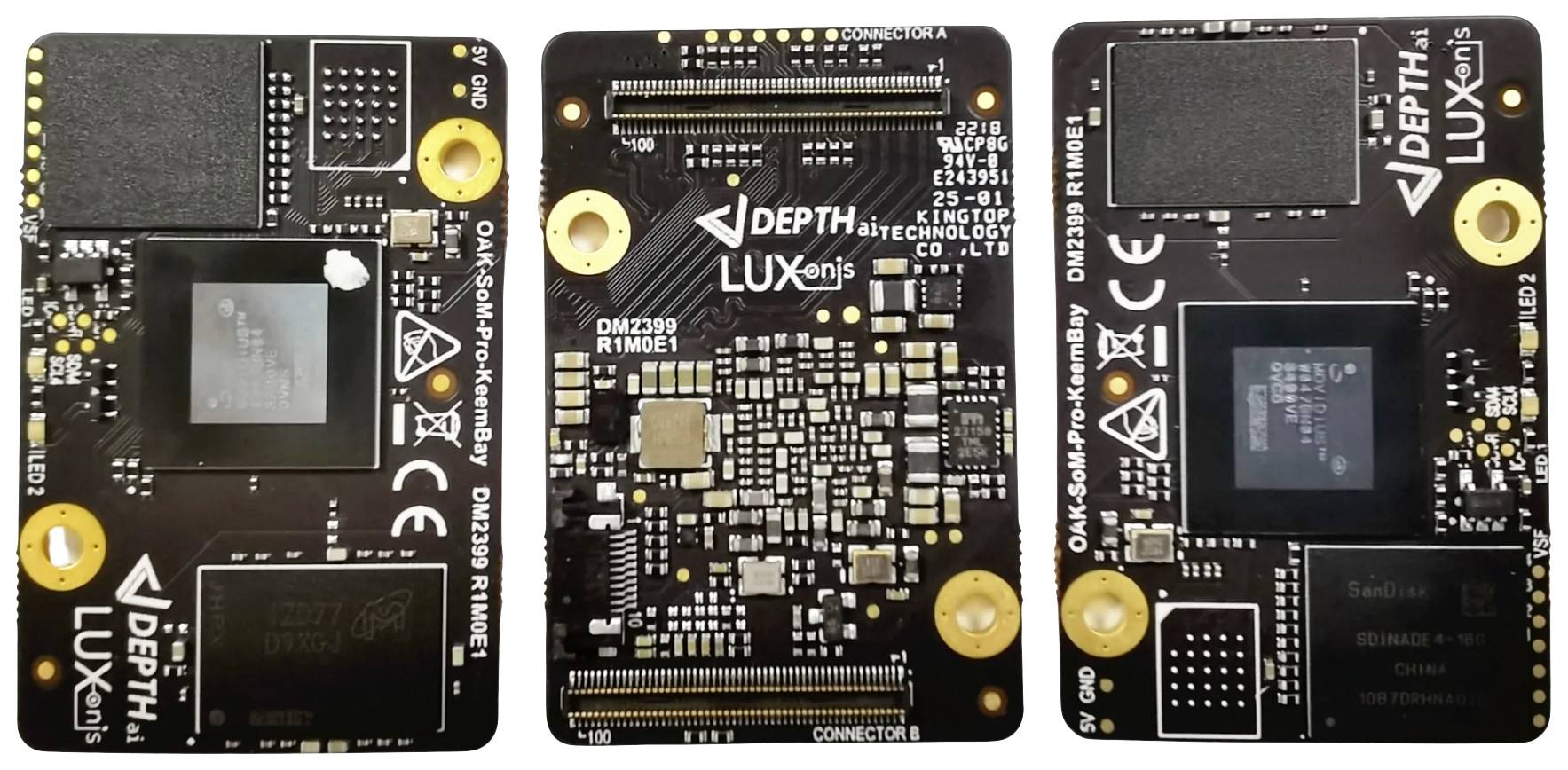

The OAK-SOM Pro S3 has a quad-core ARM CPU and the Robotics Vision Core 3. The dimensions and pin assignment are the same as for the OAK-SOM Pro, so it can be easily installed in OAK cameras. It is perfectly suited for use in industrial automation, robotics and security systems. The OAK-SOM Pro S3 was developed primarily for evaluation and backward compatibility. The OAK-SOM Max is recommended for new products.
This text is machine translated.
This text is machine translated.
Features
- 3.0 TOPS for AI
- Imaging: ISP, max 6 cameras, 500 MP/s HDR, 3A
- Executes each AI model, even self-developed models
- Encoding/decoding: H.264, H.265, MJPEG - 4K/30fps, 1080P/60fps
- Computer Vision: Warp/dewarp, resize, crop, edge detection, object tracking
- Stereo depth perception with filtering, post-processing, RGB depth matching and high configurability
- Object tracking: 2D and 3D tracking
- Interface to system: Two 100-pole 10Gbps connectors (DF40C-100DP-0.4V (51))
- Connector: 2x 100-pin mezzanine connector with the same pin assignment as OAK-Som Pro
- 2x 4-Lane and 2x 2-Lane MIPI RX lines
- RAM: 2x DDR RAM due to size/shape restrictions
- Supported boot modes: NOR, eMMC, USB, Ethernet (EEPROM)
- Supports SD-cards
- USB 3.1 1st Gen 2
Scope of delivery
- 1x Luxonis OAK SOM Pro S3
