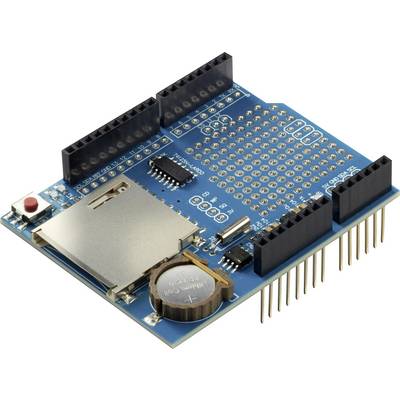

MAKERFACTORY Data-logging shield compatible with Arduino
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
Technical specifications
- Pufferbatterie: CR1220-Batterie (mitgeliefert) • Abmessungen: 43 x 17 x 9 mm
- Product type
Shield
- Suitable for
Arduino UNO
- Suitable for
Arduino
- Compatible with
Arduino
Arduino UNO
Fayaduino
Freeduino
Seeeduino
Seeeduino ADK
pcDuino
- Interfaces
SD card
- Tool type
Expansion board
- Internal ports
Pin header
- Compatible with
Arduino
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2144970 MAKERFACTORY Data-logging shield compatible with Arduino
User & Safety Instructions 2144970 MAKERFACTORY Data-logging shield compatible with Arduino
Circuit diagramm
Circuit diagramm 2144970 MAKERFACTORY Data-logging shield compatible with Arduino
Description
Practical Measurement data acquisition shield for Arduino. The SD card interface works with formatted in FAT16 or FAT32-cards. Thanks to the 3.3 V level converter damage to the SD card can be avoided. The real-time clock measures the physical clock even if the ARDUINO is switched off. The backup battery has a autonomy of several years. Works with Arduino UNO, Duemilanove, Diecimila, Leonardo or ADK/Mega R3 or higher. ADK/Mega R2 or lower are not supported.
This text is machine translated.
This text is machine translated.
Features
- Plug-in terminal pin strips
- Reset key
- Prototypes area (120 solder pads) for soldering connections, switches or sensors
- Supplied with backup battery for real-time clock
- Uses the Arduino SD and RTC library
- With integrated 3.3 V level converter for SD-cards
