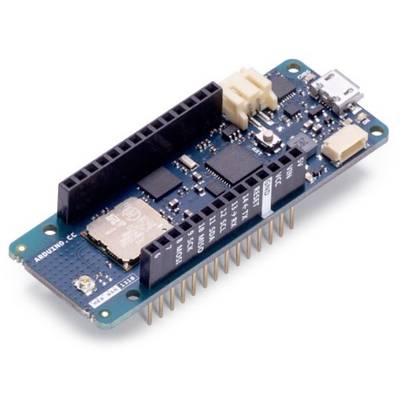

Arduino ABX00029 Expansion module Arduino® MKR WAN 1310 (LoRa) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Highlights & Details
Arduino® MKR WAN 1310 (Lora)
- The new Lora board of the MKR series from Arduino®
Technical specifications
- Microcontroller: SAMD21 Cortex®-M0 + 32-bit ARM MCU with low power consumption (data sheet)
- Radio module: CMWX1ZZABZ ( Data sheet )
- BOARD POWER SUPPLY (USB / VIN): 5 V.
- Circuit operating voltage: 3.3V
- Digital I/O pins: 8
- PWM pins: 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
- Product type
Arduino add-on PCB
- Length
67.64 mm
- Width
25 mm
- Suitable for
Arduino
- Compatible with
Arduino
- Interfaces
Radio
- Series
MKR
- Series
Atmel SAMD21
- Tool type
Expansion board
- Weight
32
- Compatible with
Arduino
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2362289 Arduino ABX00029 Expansion module Arduino® MKR WAN 1310 (LoRa) Compatible with (development kits): Arduino
User & Safety Instructions
User & Safety Instructions 2362289 Arduino ABX00029 Expansion module Arduino® MKR WAN 1310 (LoRa) Compatible with (development kits): Arduino
Description
The Arduino MKR WAN 1310 board provides a convenient and cost-effective solution to add Lora® connectivity to projects that require low power consumption. This open source board can be connected to the Arduino IoT Cloud, your own Lora® network using the Arduino Lora® PRO gateway, an existing LoRaWAN infrastructure such as The Things Network, or even other boards using Direct Connectivity mode.
The MKR WAN 1310 brings a number of improvements compared to its predecessor, the MKR WAN 1300. The MKR WAN 1310 is still based on the Microchip® SAMD21 Low Power Processor, Murata CMWX1ZZABZ Lora® Module and the MKR family's characteristic crypto chip (the ECC508), but has a new battery charger, a 2 MB SPI flash and improved regulation of the board's power consumption.
The last modifications have significantly improved the battery life of the MKR WAN 1310. With the correct configuration, the power consumption is now only 104uA! It is also possible to supply the board with power (5V) via the USB port.Data logging and other OTA functions (Over The Air) are now possible, since the board has a 2 MB flash memory. With this new feature, you can transfer configuration files from the infrastructure to the board (2 MByte Flash), create your own script commands, or simply store data locally to send the data when the connection is best. The MKR WAN 1310 crypto chip provides additional security by storing credentials and certificates in the embedded Secure Element.
This text is machine translated.
The MKR WAN 1310 brings a number of improvements compared to its predecessor, the MKR WAN 1300. The MKR WAN 1310 is still based on the Microchip® SAMD21 Low Power Processor, Murata CMWX1ZZABZ Lora® Module and the MKR family's characteristic crypto chip (the ECC508), but has a new battery charger, a 2 MB SPI flash and improved regulation of the board's power consumption.
The last modifications have significantly improved the battery life of the MKR WAN 1310. With the correct configuration, the power consumption is now only 104uA! It is also possible to supply the board with power (5V) via the USB port.Data logging and other OTA functions (Over The Air) are now possible, since the board has a 2 MB flash memory. With this new feature, you can transfer configuration files from the infrastructure to the board (2 MByte Flash), create your own script commands, or simply store data locally to send the data when the connection is best. The MKR WAN 1310 crypto chip provides additional security by storing credentials and certificates in the embedded Secure Element.
This text is machine translated.
Scope of delivery
- Arduino® MKR WAN 1310 (Lora)
