TRU COMPONENTS Protoshield Prototyping Board Prototyping board
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Technical specifications
- Product type
Prototyping board
- Compatible with
Arduino
Arduino UNO
Fayaduino
Freeduino
Seeeduino
Seeeduino ADK
pcDuino
- Interfaces
Terminals
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2144973 TRU COMPONENTS Protoshield Prototyping Board Prototyping board
Description
Proto shield makes it easy to build your own circuits. You can use different components to the test set-up to a private project to create soldering. Or you can use the proto shield with a plug-in board use, when you quickly want to test a circuit without soldering. The Proto shield has connections for all I/O pins on the Arduino boards. In addition, it has free areas, in order to plug-in or soft circuits.
This text is machine translated.
This text is machine translated.

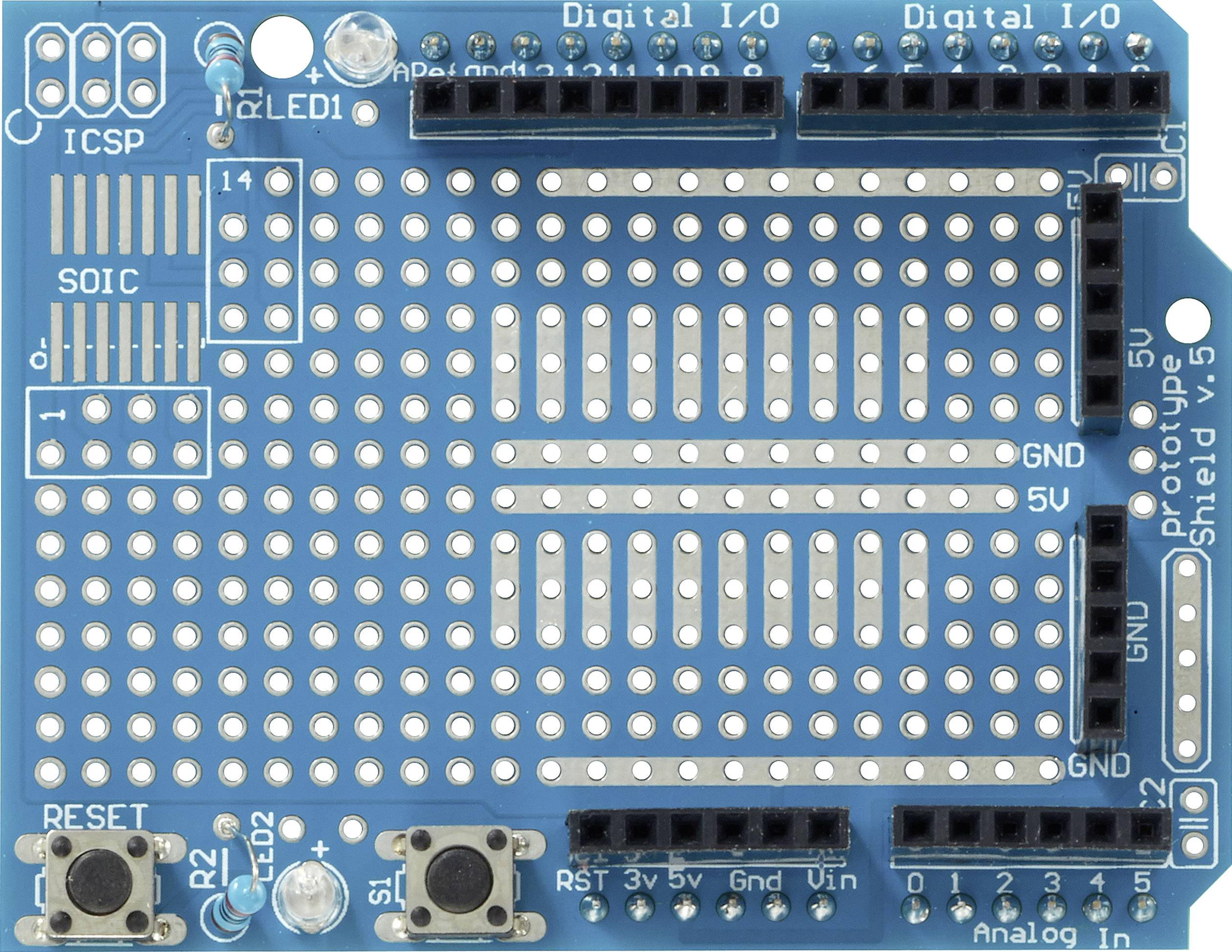

Features
- Arduino 1.0 pin assignment
- Reset button
- Button + LED
- Point for ICSP connection
- 14-pin SMD connection area
- 20-pin Through holes

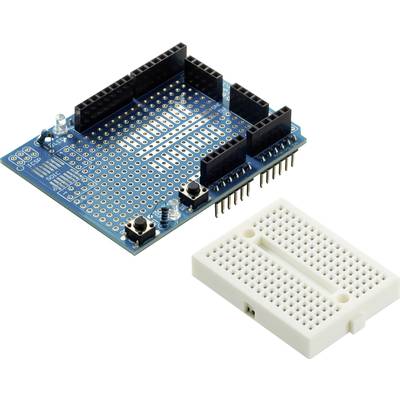

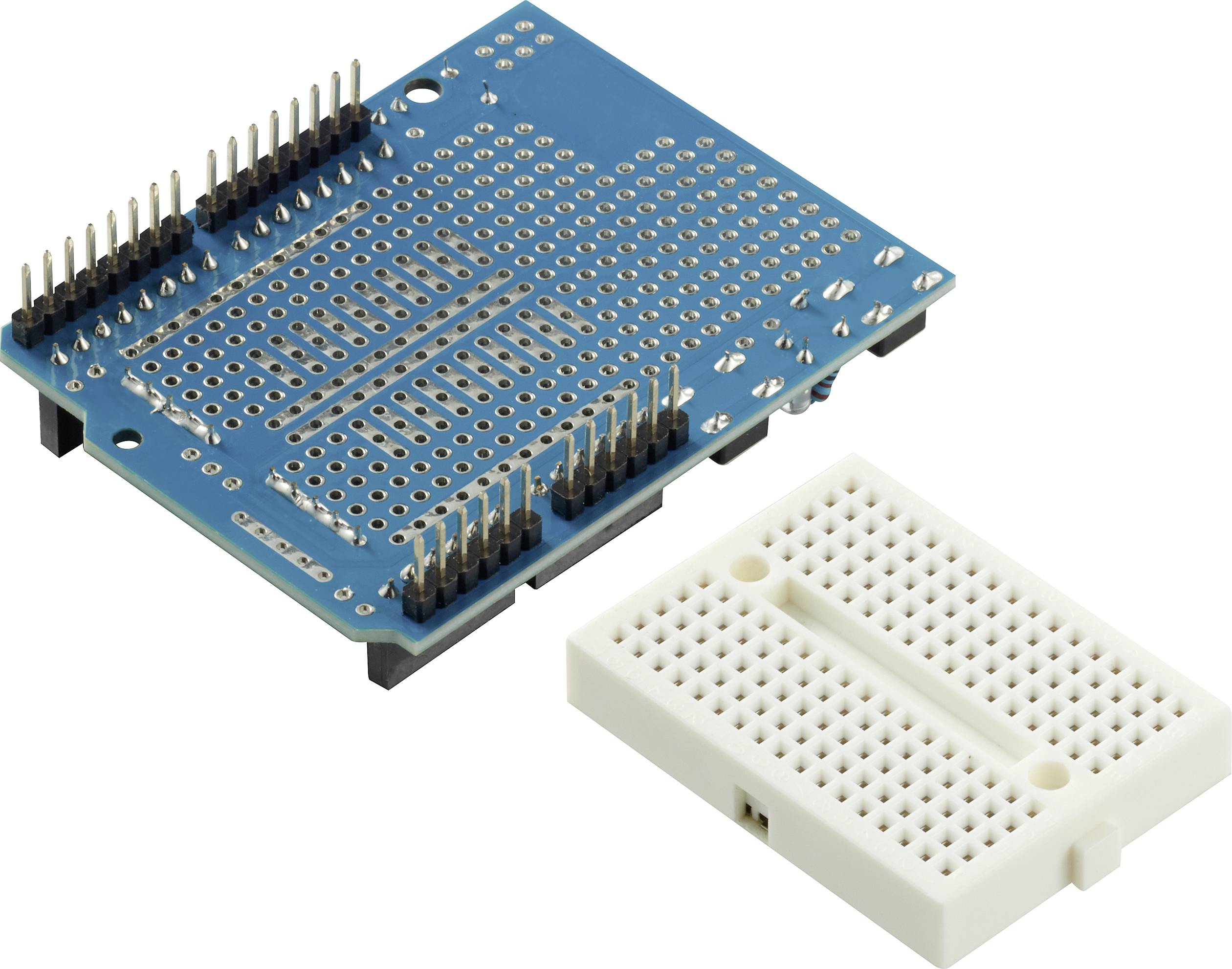

- Supplied with a 170-hole self-adhesive printed circuit board
- compatible with: Leonardo, Uno, Mega, Classic
