Buy TRU COMPONENTS TC-9072492 Expansion board Compatible with (development kits): Arduino

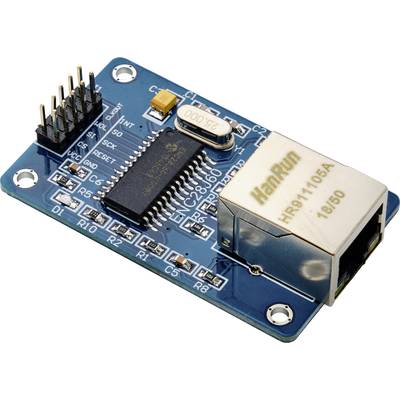

An Ethernet module with circuits and connectors for connecting computer networks. Printed label: 'HanRun HR911105A 19/50'.

Back of a blue electronic circuit board with visible solder points and connector pins on the side.

'ENC28J60 Ethernet Module' with integrated circuits and capacitors on a blue printed circuit board. Used for network connections in electronic projects.

A blue electronic circuit board with multiple solder points, two black screws, and visible circuit traces.

Arduino board with multiple colourful cables connected to an Ethernet shield. The setup is used for electronic control and networking.

1/5

Our service for you

Fast track dispatch on Wed, 5 Aug

336 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 13.44 / piece)

€ 13.44

plus VAT.

Report legal concerns

Highlights & Details

Network Module ENC28J60 for Arduino

Integrated Chip : ENC28J60
25MHZ Crystal
3.3 V Power Supply Pin

Technical specifications

Network Module ENC28J60 Ethernet LAN
Chip ENC28J60-I/SO
Crystal 25MHZ
Network interface HR911105A

Packaging type: Bulk

Product type: Expansion board

Compatible with: Arduino

Interfaces: Pin header
Ethernet

Suitable for: Arduino

Height: 15 mm

Length: 34 mm

Width: 56 mm

Weight: 14.7 g

Compatible with: Arduino

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2268123 TRU COMPONENTS TC-9072492 Expansion board Compatible with (development kits): Arduino

Description

It is a small breakout board for the ENC28J60 Ethernet chip. Contains all the necessary hardware to device an Ethernet Interface including the isolation transformer and LINK/STATUS and power LEDs. SPI interface makes this one of the easiest 10Base-T ICs yet. It's 3.3V with 8KB buffer.
