TRU COMPONENTS TC-9072472 Relay board 1 pc(s) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Highlights & Details

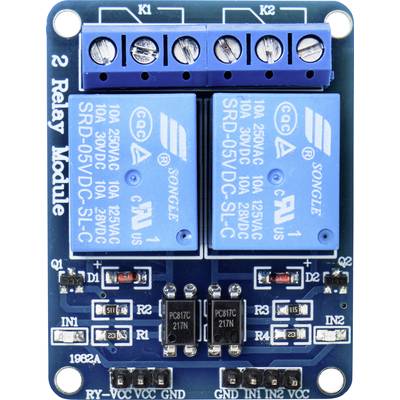

2-channel relay module for Arduino
- 2-channel relay module with optocoupler
- MAXIMUM OUTPUT POWER: DC 30V/10A, AC 250V/10A
Technical specifications
- 5V 2 Channel Relay Module
- Packaging type
Bulk
- Product type
Relay board
- Compatible with
Arduino
- Output voltage (max.)
30 V DC
250 V AC
- Suitable for
Arduino
- Height
16 mm
- Length
38 mm
- Width
50 mm
- No. of outputs
2 x
- Weight
30 g
- Compatible with
Arduino
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2268118 TRU COMPONENTS TC-9072472 Relay board 1 pc(s) Compatible with (development kits): Arduino
User & Safety Instructions
User & Safety Instructions 2268118 TRU COMPONENTS TC-9072472 Relay board 1 pc(s) Compatible with (development kits): Arduino
Conformity certificate
Conformity certificate 2268118 TRU COMPONENTS TC-9072472 Relay board 1 pc(s) Compatible with (development kits): Arduino
Description

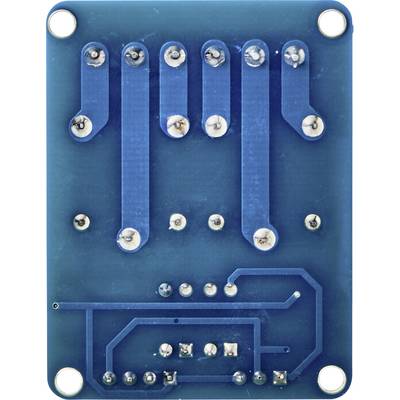

This is a LOW Level 5V 2-channel relay interface card and each channel requires a 15-20mA driver current. It can be used to control various devices and equipment with high current. It is equipped with a high current relay operating under AC250V 10A or DC30V 10A. The card has a standard interface that can be directly controlled by a microcontroller. The plate with four fixed screw holes all around, hole diameter 3.1 mm, convenient installation and fixed loose relay, relay selection of the quality single-pole double throw. A common end and start, a normally closed end isolation of optical coupling, anti-interference performance is well low level off, released at hohem. Suction status indicator on the right, enable status when the light is off VCC for system performance, JD_VCC power supply for the relays. The standard 5V relay, with jumper cap
This text is machine translated.
This text is machine translated.
Features
- 2-channel relay module with optocoupler LOW-level trigger expansion card compatible with arduino
- Standard interface that can be controlled directly from the microcontroller ( 8051, AVR, *PIC, DSP, ARM, ARM, MSP430, TTL logic)
- a common connection, a normally open and normally closed connection
- optocoupler isolation, good anti-jamming
Scope of delivery
- 5V 2-channel relay module
