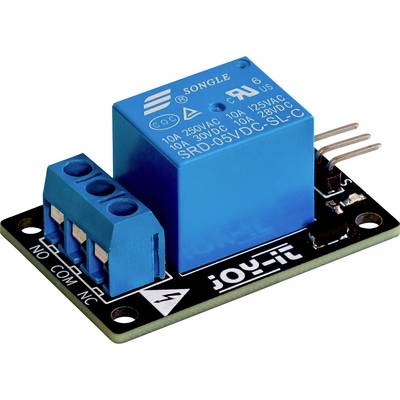

Joy-it 5V-Relais Relay board 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Highlights & Details
5V RELAY MODULE, 6-10A / 230V AC / 30V DC
- Maximum load: 6A / 230V AC / 30V DC
- Maximum load with cooling: 10A / 230V AC / 30V DC
- LOAD CONNECTIONS COM, NO, NC
- Control connections: VCC, GND, signal
Technical specifications
- Relay for switching higher voltages with the help of a
- 5V output
- Maximum load:
- 6A/230V AC, 6A/30V DC
- Maximum load with cooling:
- 10A/230V AC, 10A/30V DC
- LOAD CONNECTIONS COM, NO, NC
- Control connections: VCC,GND, signal
- Operating voltage: 5V DC
- Product type
Relay board
- Interfaces
Pin strip (3-pin)
- Max. operating voltage
230 V
- Output voltage (max.)
230 V AC
- Tool type
I/O module
- Height
27 mm
- Length
19 mm
- Width
45 mm
- Weight
15 g
Documents & Downloads
Datasheet
Datasheet 3385741 Joy-it 5V-Relais Relay board 1 pc(s)
Datasheet 3385741 Joy-it 5V-Relais Relay board 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3385741 Joy-it 5V-Relais Relay board 1 pc(s)
User & Safety Instructions 3385741 Joy-it 5V-Relais Relay board 1 pc(s)
Description
Our 5 V relay module is a robust and efficient solution for switching high loads in various applications.
It can switch loads up to 6 A at 230 V AC or 30 V DC. With additional cooling, the module is even capable of handling up to 10 A at the same voltages. This makes it Ideal for industrial applications, home automation and development projects that require precise control.
The module is characterized by its compact size and the simple control over a 5 V logic voltage, WAS simplifies the integration in existing systems. It is perfectly suited for DIY projects and professional installations that require reliable and high-performance switching.
