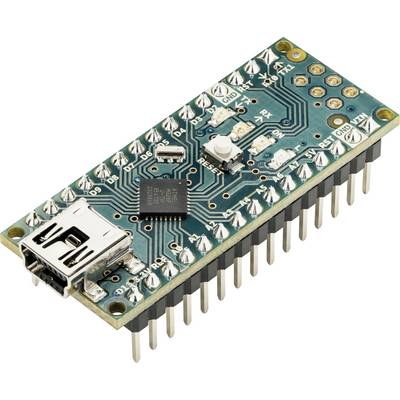

Arduino A000005 Board Nano Core, Nano ATMega328
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Highlights & Details
Nano Board
- Specially developed for the work with plug-in boards
- Fits on almost all the conventional connector systems
- Compact design and yet almost functional scope of the UNOs
Technical specifications
- RAM: 2 KB
- EPROM: 1KB
- Clock speed: 16 MHz
- LEDs: RXD, TXD, Power, Pin 13
- Size: 0.73" x 1.70" (approx. 1.85 cm x 4.3 cm)
- Maximum current per I/O pin: 40 mA
- Load-carrying capacity of the 3.3 V, output: 50 mA.
- Series
Core
Nano
- Product type
Board
- MC layout
8-bit
- Interfaces
Mini USB
ISP
I²C
SPI™
Serial
ICSP
- Series
ATMega328
- No. of digital inputs
8
- No. of analogue inputs
6
- No. of digital inputs
14
- No. of digital outputs
14
- I/O number
14
- EEPROM
1 kB
- Max. output current
50 mA
- Output voltage (max.)
5 V
- Output voltage (min.)
0 V
- Operating voltage
5 V
- Input voltage (max.)
12 V
- Input voltage (min.)
7 V
Documents & Downloads
Datasheet
Datasheet 1172623 Arduino A000005 Board Nano Core, Nano ATMega328
User & Safety Instructions
User & Safety Instructions 1172623 Arduino A000005 Board Nano Core, Nano ATMega328
Description
The Nano is a particularly small Arduino ™, specially designed for the work with plug-in boards were developed. The via pin strips down and out-run pins and the practical size fits on almost all common plug systems. This makes it even easier to try out new ideas and projects "just".
Despite the compact design corresponds to the range of functions of the nano-almost an Arduino Uno. This is mainly due to the powerful microcontroller type ATmega328, which has proven itself on several Arduino board. The Mini-USB socket, you can use both board and circuit with storm supply as well as new programs comfortably on the controller.
This text is machine translated.
Despite the compact design corresponds to the range of functions of the nano-almost an Arduino Uno. This is mainly due to the powerful microcontroller type ATmega328, which has proven itself on several Arduino board. The Mini-USB socket, you can use both board and circuit with storm supply as well as new programs comfortably on the controller.
This text is machine translated.
