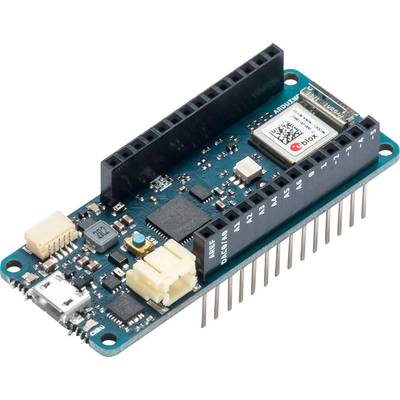

Arduino ABX00023 Board MKR WIFI 1010 MKR
EAN:
Part number:
Item no:
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
Finally WLAN directly on the board!
Highlights & Details
- Do you want to add a WiFi interface to your devices? Get the MKR WIFI 1010! It connects easily with other Arduino products and is configurable with Arduino software - and you don't have to be a network expert. This is the latest version of the MKR 1000 WIFI, but with a ESP32 module of U-BLOX on board.
Technical specifications
- Series
MKR
32 kB
- Clock speed
48 MHz
- Memory type
FLASH
- Memory capacity
256 kB
- Wi-Fi
built-in
- Length
61.5 mm
- Width
8.20 mm
- Height
2.50 mm
- Output current
7 mA
- Product type
Board
- MC layout
ARM Cortex-M0+
- Suitable for
Arduino
- Interfaces
UART
- Technology
32-bit MCU
- Tool type
Development kit
- Depth
6.00 mm
- Screen size diagonal (inches)
1 inch
- Keyboard layout
German, QWERTZ
- Weight
21.0000
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1969871 Arduino ABX00023 Board MKR WIFI 1010 MKR
Description
The MKR WIFI 1010 is a significant improvement over the MKR 1000 WIFI. It is equipped with a ESP32 module from U-BLOX. This board aims to accelerate and simplify prototyping of WiFi-based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption.
This text is machine translated.
This text is machine translated.
Features
- SAMD21 Cortex-M0+ 32bit Low power ARM MCU Low power
- on-board power supply (USB/VIN) 5V
- supported battery(*) Li-Po single cell, 3.7V, 700mAh minimum
- circuit operating voltage 3.3V
- Digital I/O pins 8
- PWM pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 - or 19)
- UART 1
- SPI 1
- I2C 1
- I2S 1
- connectivity WiFi
- analogue input pins 7 (ADC 8/10/12 bit)
- analogue output pins 1 (DAC 10 bit)
- external interrupts 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
- Direct current per I/O Pin 7 mA
- Flash memory 256 KB
- SRAM 32 KB
- EEPROM No
- clock frequency 32.768 kHz (RTC), 48 MHz
- LED_BUILTIN 6
- full-speed USB device and integrated host including
- LED_BUILTIN 6
- length 61.5 mm
- width 25 mm
- weight 32 g.
Scope of delivery
- Arduino Board MKR WiFi 1010
