Joy-it SEN-KY032IR IR transmitter 1 pc(s) Compatible with (development kits): Arduino, BBC micro:bit, Raspberry Pi®
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Highlights & Details
Infrared proximity sensor (2 to 20cm)
- Detection range 2 to 20cm
- Enable PIN ( switch on/off via controller )
- Operating temperature: -10 to + 50 degrees Celsius
- Detection angle 35 degrees
Technical specifications
- Product type
IR transmitter
- Compatible with
Arduino
Raspberry Pi
BBC micro:bit
- Interfaces
Pin header
- Min. operating voltage
3 V
- Max. operating voltage
5 V
- Output voltage (max.)
5 V
- Suitable for
Arduino
BBC micro:bit
Raspberry Pi®
- Tool type
Development kit
- Height
11 mm
- Length
41 mm
- Width
17 mm
- Internal ports
Pin header
- No. of outputs
1 x
- Weight
15 g
- Compatible with
Arduino
BBC micro:bit
Raspberry Pi®
Documents & Downloads
Datasheet
Datasheet 2306254 Joy-it SEN-KY032IR IR transmitter 1 pc(s) Compatible with (development kits): Arduino, BBC micro:bit, Raspberry Pi®
User & Safety Instructions
User & Safety Instructions 2306254 Joy-it SEN-KY032IR IR transmitter 1 pc(s) Compatible with (development kits): Arduino, BBC micro:bit, Raspberry Pi®
Description

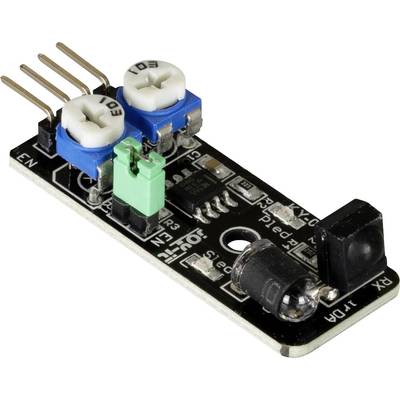

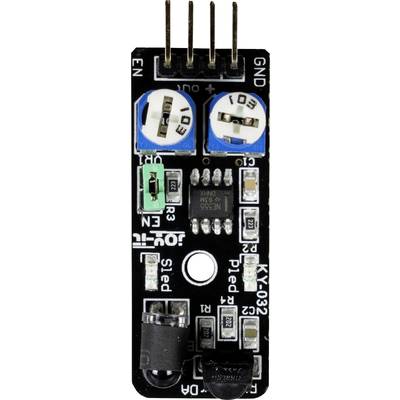

This sensor sends an infrared light, which is reflected when it hits an obstacle and received by the photodiode. The sensitivity of the receiver as well as the strength of the transmitter can be set. This allows you to set the distance at which the sensor is triggered. This is done with two different potentiometers.
The sensor can be used to control autonomous robots, among other things.
This text is machine translated.
The sensor can be used to control autonomous robots, among other things.
This text is machine translated.
Scope of delivery
- Infrared sensor module
