TRU COMPONENTS TC-9072548 Sensor module 1 pc(s) Compatible with (development kits): BBC micro:bit
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Highlights & Details

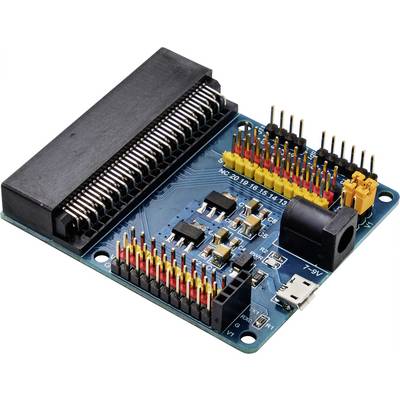

Sensor Shield PIO to 3 pin for BBC micro:bit
- Power supply via DC socket connection and micro USB
- Support 3.3V / 5V
- Supports SPI / I2C / serial interface
Technical specifications
- Packaging type
Bulk
- Product type
Sensor module
- Compatible with
BBC micro:bit
- Interfaces
DC 5.5 socket
Pin header
Micro USB
- Min. operating voltage
3.3 V
- Suitable for
BBC micro:bit
- Height
12 mm
- Length
65 mm
- Width
58 mm
- Weight
31.5 g
- Compatible with
BBC micro:bit
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2268137 TRU COMPONENTS TC-9072548 Sensor module 1 pc(s) Compatible with (development kits): BBC micro:bit
Description
The sensor screen V2 breaks off all PIO ports on the micro:bit control board into a 3-PIN interface (GND, VCC, signal), so that the BBC micro:bit control board and other sensor modules can be connected very easily. It also extends some frequently used serial communication interfaces in pin or socket strips with 2.54 mm pin spacing, such as I2C and SPI communication pins. This shielding allows communication between the micro:bit control board and other communication devices.
This text is machine translated.
This text is machine translated.
Features
- Current input: Black DC socket (DC 7-9V) or micro USB port (DC 5V)
- Voltage output: Select 3.3V or 5V via jumper cap V1/V2
- supplied with a power indicator
- Extends micro:bit PIO to 3PIN interface
- pin for serial communication
- I2C communication pin
- SPI communication pin
