TRU COMPONENTS TC-9072556 Motor 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Highlights & Details

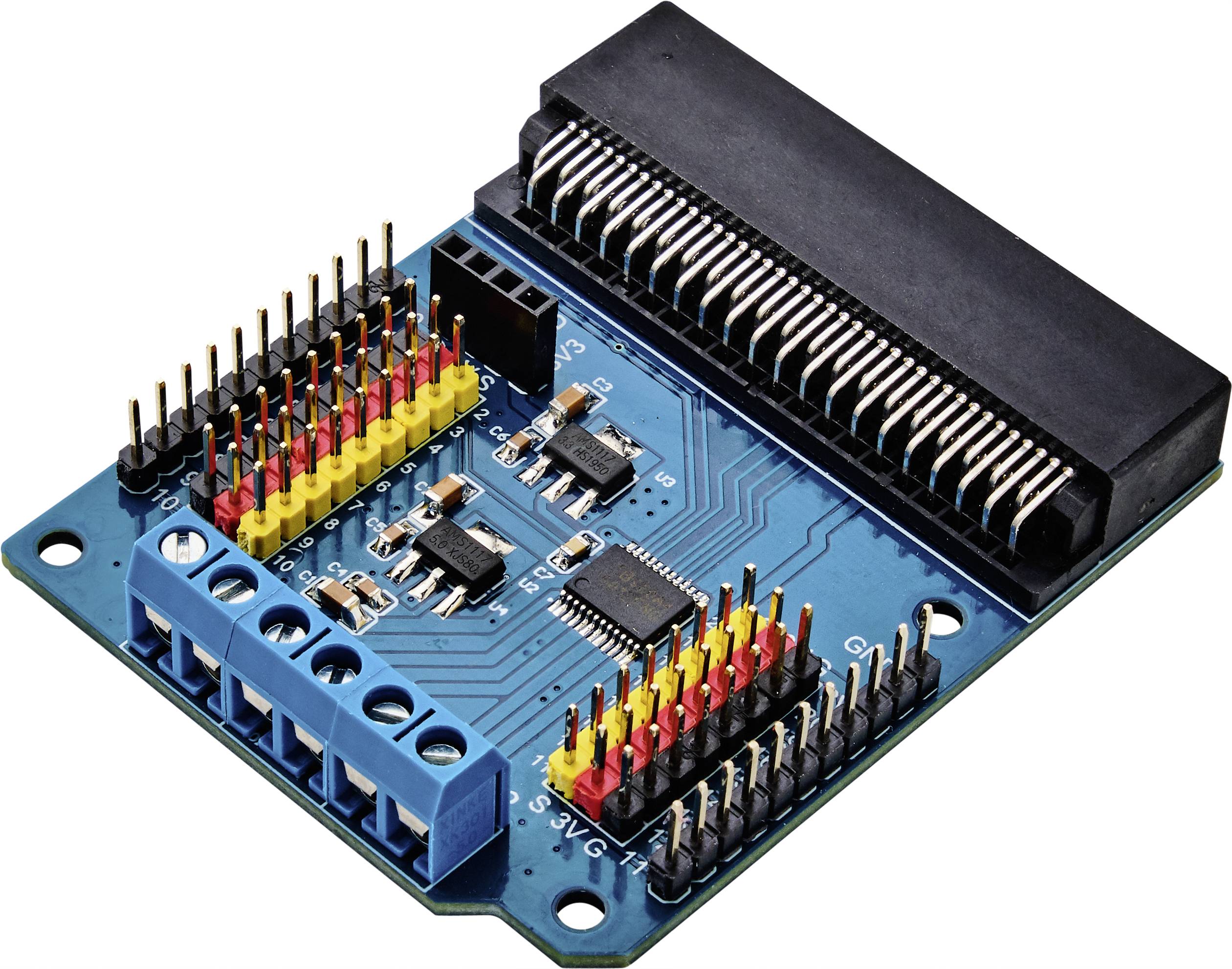

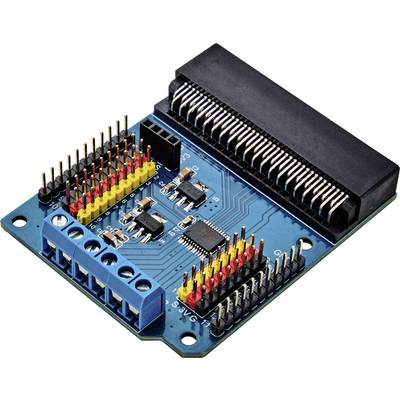

Motor control board for BBC micro:bit
- Integrated TB6612FNG chip
- Four motor control modes: Forward/reverse/brake/stop.
- Continuous output current up to 1.2A
- Integrated with 3.3V and 5V voltage regulator chip
Technical specifications
- Motor Driver Board for BBC Microbit
- Packaging type
Bulk
- Product type
Motor
- Compatible with
BBC micro:bit
- Min. operating voltage
6 V
- Max. operating voltage
12 V
- Suitable for
BBC micro:bit
- Height
12 mm
- Length
70 mm
- Width
58 mm
- Weight
35.2 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2268139 TRU COMPONENTS TC-9072556 Motor 1 pc(s)
Description
This motor driver board makes it easier for the BBC micro:bit to control a DC motor. Four engine control modes: Forward/ reverse/ brake/ stop. Access for connecting the 3-pin pin pin pin pin connector.
The motor driver board integrates the TB6612FNG chip. It can deliver up to 1.2 A continuous driver current per channel, with peak currents of up to 2A / 3.2A. And the PWM-support frequency is up to 100 kHz. There are 4 engine control modes: Forward/ reverse/ brake/ stop. And the PWM-support frequency is up to 100 kHz. For wiring, the board breaks out all pins with the 3-PIN interface so that you can connect other sensors with 3-pin wires to the circuit board. At the same time, a 3.3V and 5V voltage-controlled chip is integrated on the breakout board, which leads to a 3.3V and 5V power output interface. The board is also equipped with a serial communication port to facilitate connection of the Bluetooth module.
This text is machine translated.
The motor driver board integrates the TB6612FNG chip. It can deliver up to 1.2 A continuous driver current per channel, with peak currents of up to 2A / 3.2A. And the PWM-support frequency is up to 100 kHz. There are 4 engine control modes: Forward/ reverse/ brake/ stop. And the PWM-support frequency is up to 100 kHz. For wiring, the board breaks out all pins with the 3-PIN interface so that you can connect other sensors with 3-pin wires to the circuit board. At the same time, a 3.3V and 5V voltage-controlled chip is integrated on the breakout board, which leads to a 3.3V and 5V power output interface. The board is also equipped with a serial communication port to facilitate connection of the Bluetooth module.
This text is machine translated.
Features
- Access to 3Pin header connection
- integrated with 3.3V and 5V voltage regulator chip
- comes with Communication pins for the serial interface
