Buy TRU COMPONENTS TC-9072508 N/A Compatible with (development kits): BBC micro:bit

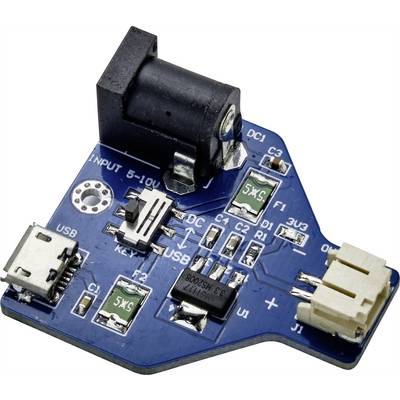

'Blue electronic circuit board with multiple connections and components, suitable for electronic projects and applications.'

A blue electronic module with multiple round contacts and a connector socket. It is intended for electronic applications.

A blue electronic circuit with multiple white connectors, a black switch, and green components. Text reads 'INPUT 5-10V', 'OUTPUT 3V3'.

A blue electronic circuit board with various round and hexagonal contact points and connectors on its surface.

'Microcontroller connected with cable, illuminated display and switch on circuit board. Electronic device for controlling projects.'

1/5

Our service for you

Fast track dispatch on Mon, 14 Sep

293 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2.09 / piece)

€ 2.09

plus VAT.

Report legal concerns

Highlights & Details

Power adapter for BBC micro: bit

Powered by the black DC port or USB
DC input voltage: DC 5-10V
Output current: 1A

Technical specifications

Power Adapter Board
Output voltage: DC 3.3V
Output current: 1A
Maximum power: 3W

Packaging type: Bulk

Product type: Adapter

Compatible with: BBC micro:bit

Interfaces: Micro USB
DC 5.5 socket

Min. operating voltage: 5 V

Max. operating voltage: 10 V

Output voltage (max.): 3.3 V

Suitable for: BBC micro:bit

Height: 12 mm

Length: 32 mm

Width: 33000 mm

Weight: 5.8 g

Compatible with: BBC micro:bit

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2268127 TRU COMPONENTS TC-9072508 N/A Compatible with (development kits): BBC micro:bit

Description

The adapter board can supply power through the black DC port or USB. The DIP switch of the adapter board needs to dial through the DC terminal when supplying DC 5-10V by DC port. the DIP switch needs to dial through the USB end, when providing power by USB. After powering up, the output terminal (2 mm gray-white interface) gives out DC 3.3V to power a micro:bit control board.
