Name: Manhattan Current Cable [1x C5 Mickey Mouse socket - 1x PG plug] 3 m Black
Brand: Manhattan
SKU: 3630427
Availability: InStock

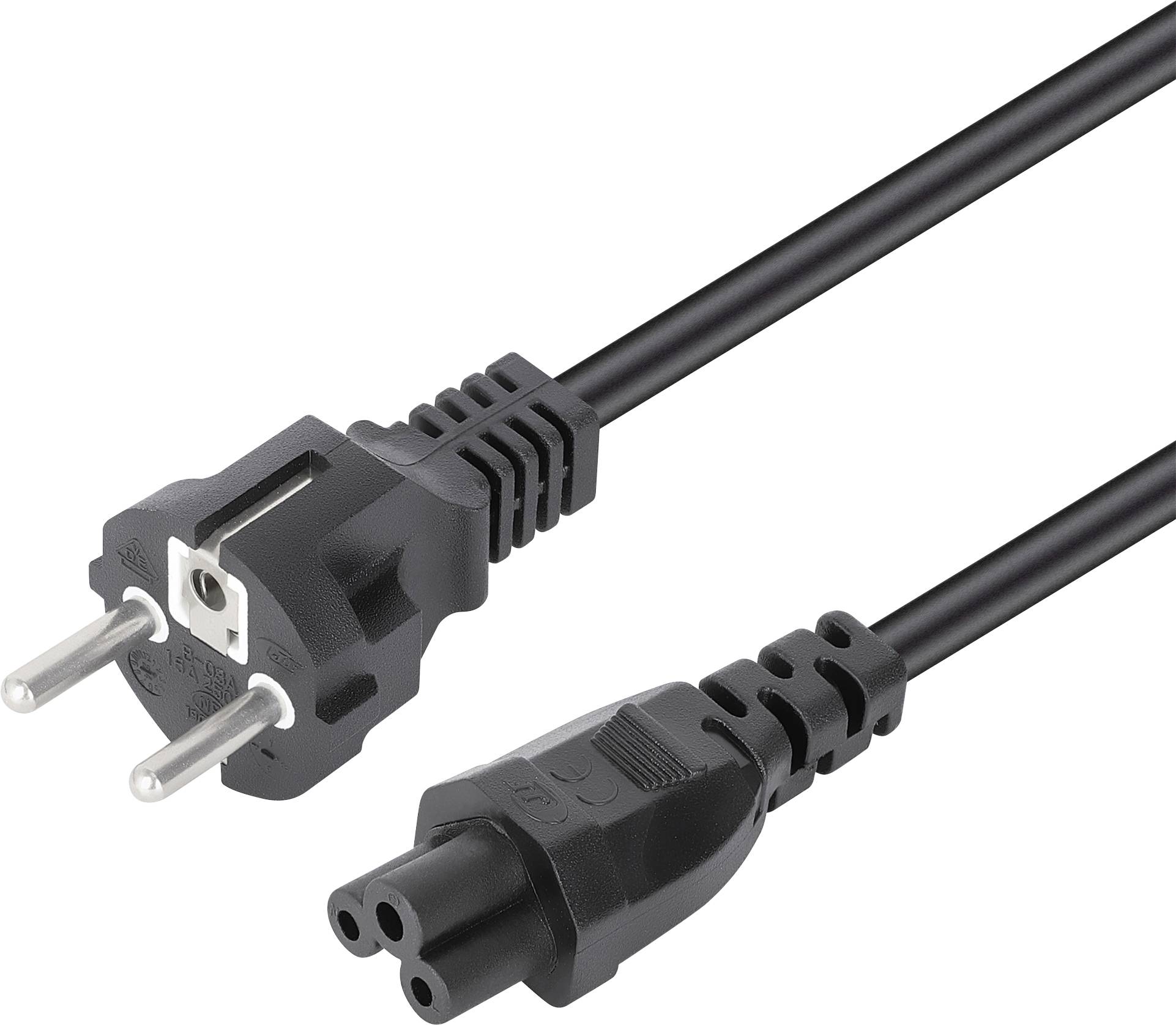

An electrical power cable with a European plug on one end and a three-pin connector on the other.

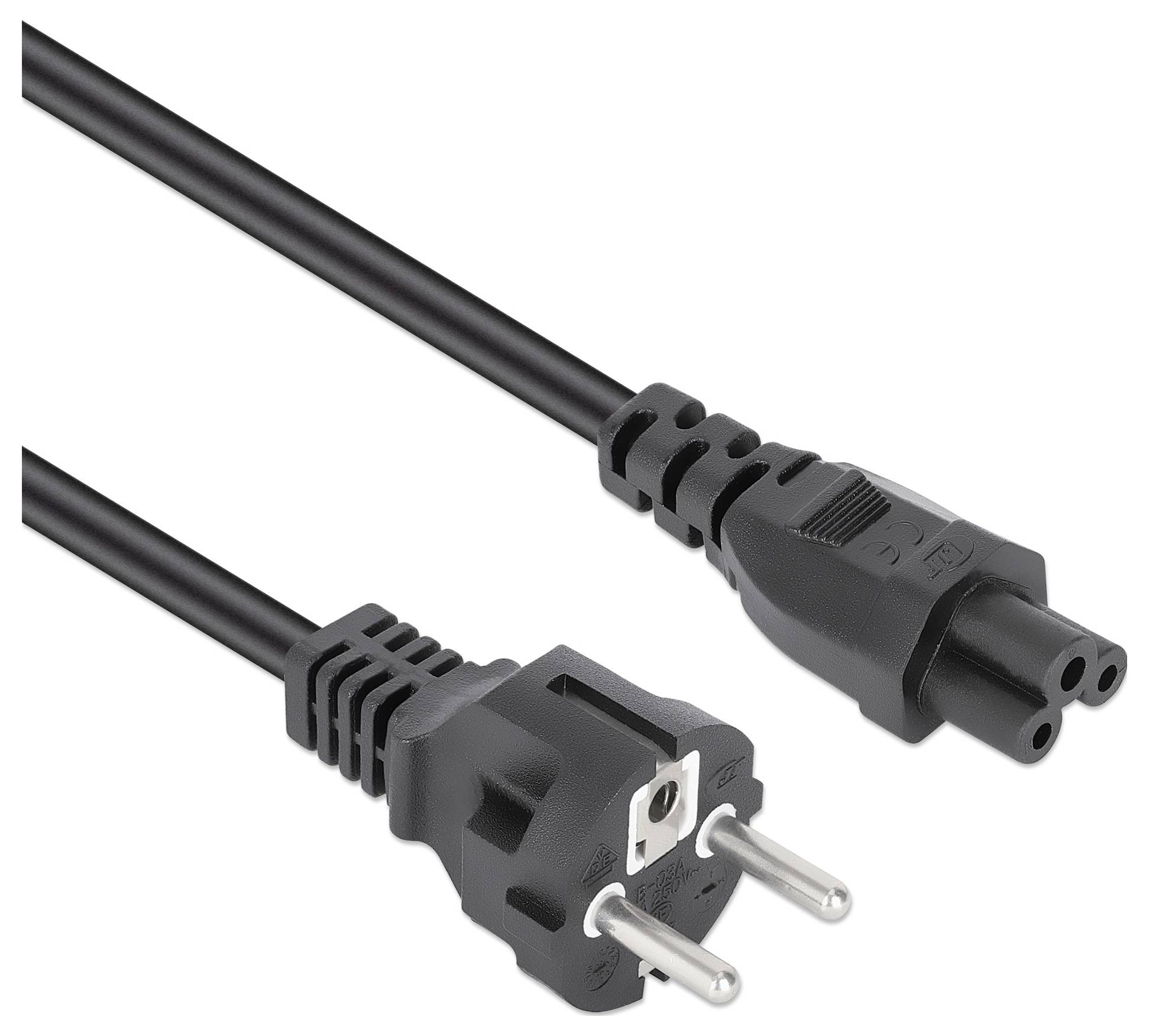

A black European power cable, showing both the Europlug and appliance connectors.

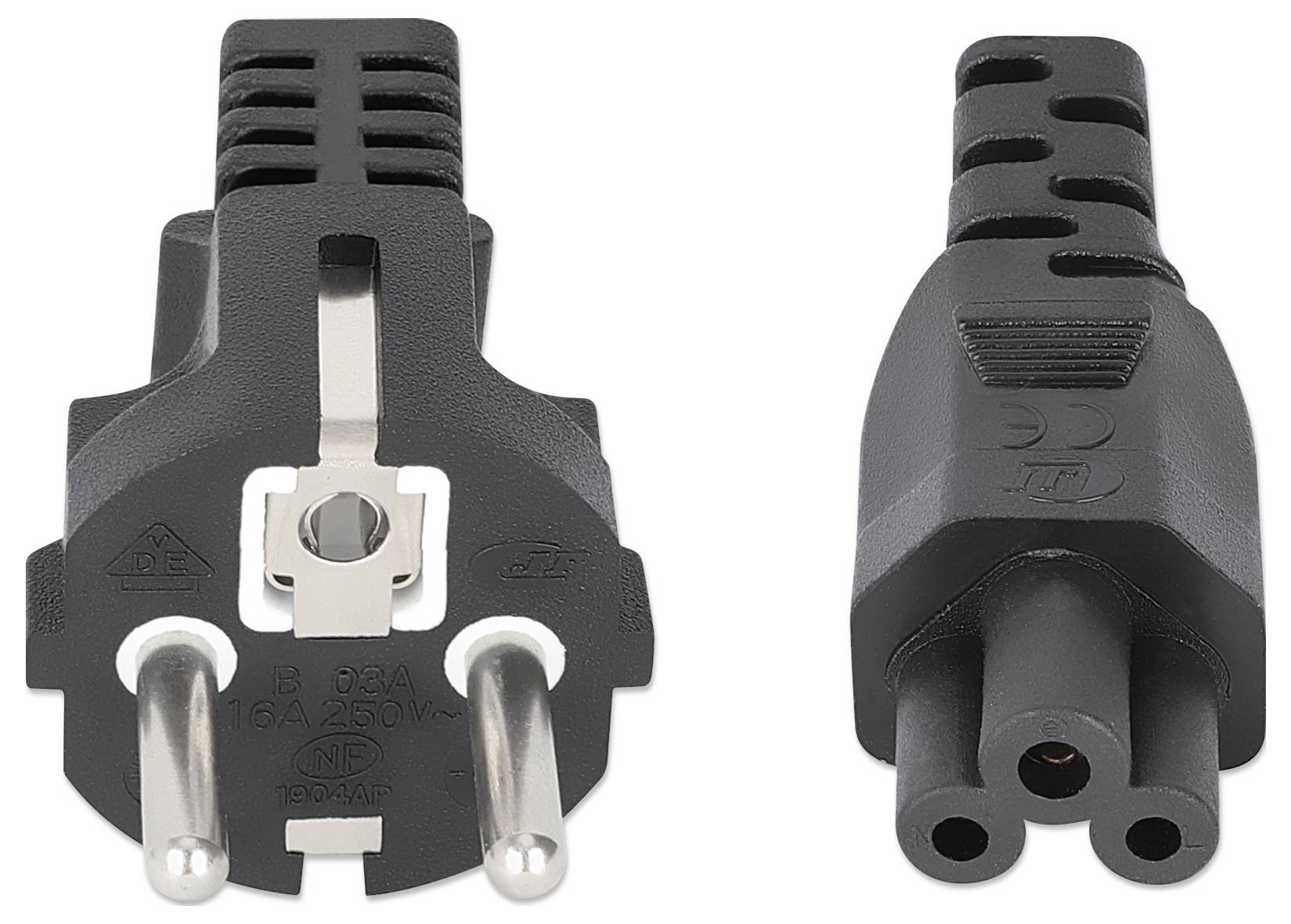

'Image showing a European Schuko plug on the left and a C5 connector on the right, both used for electrical connections.'

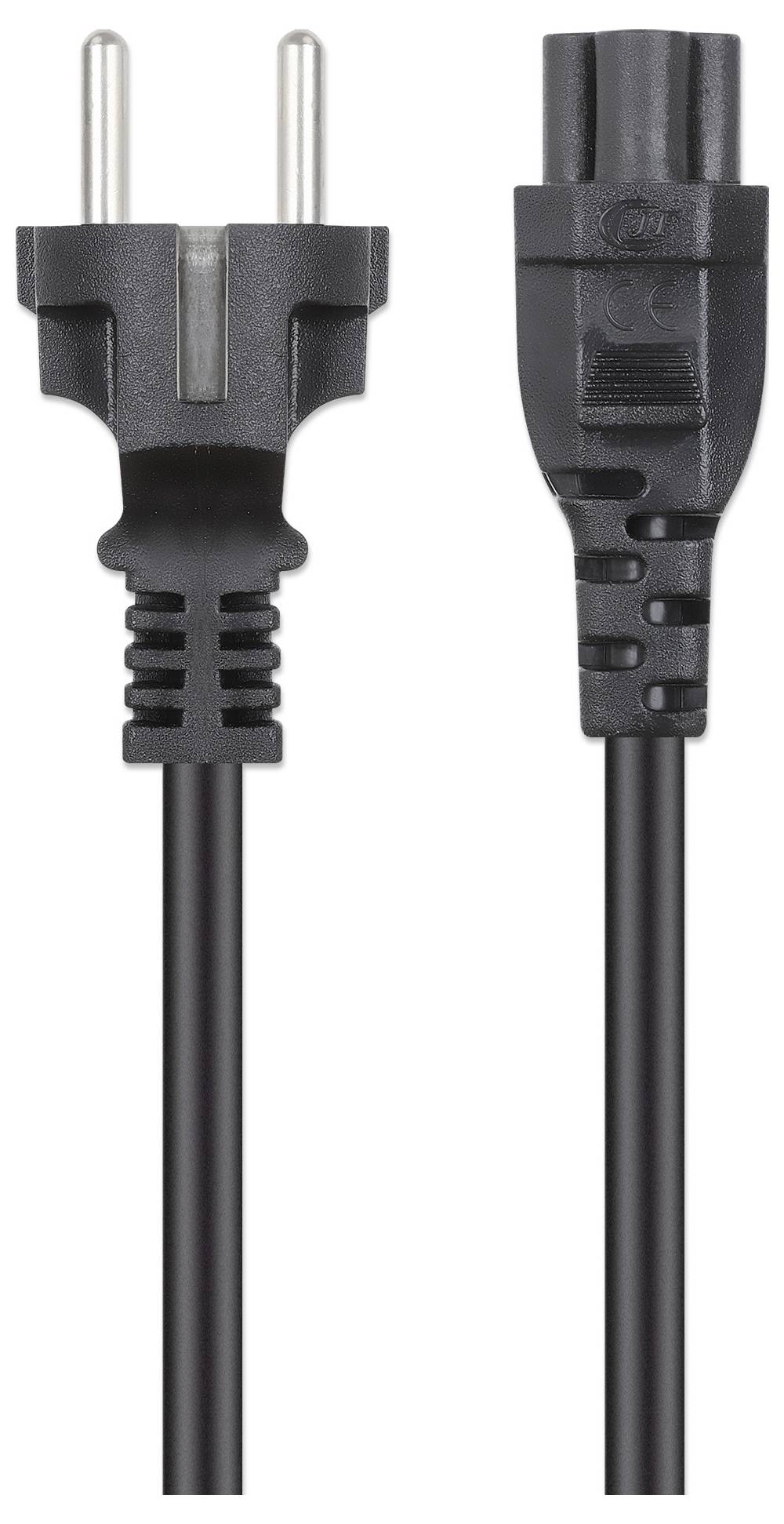

A black electrical power cable with a European plug on the left and a figure-eight connector on the right.

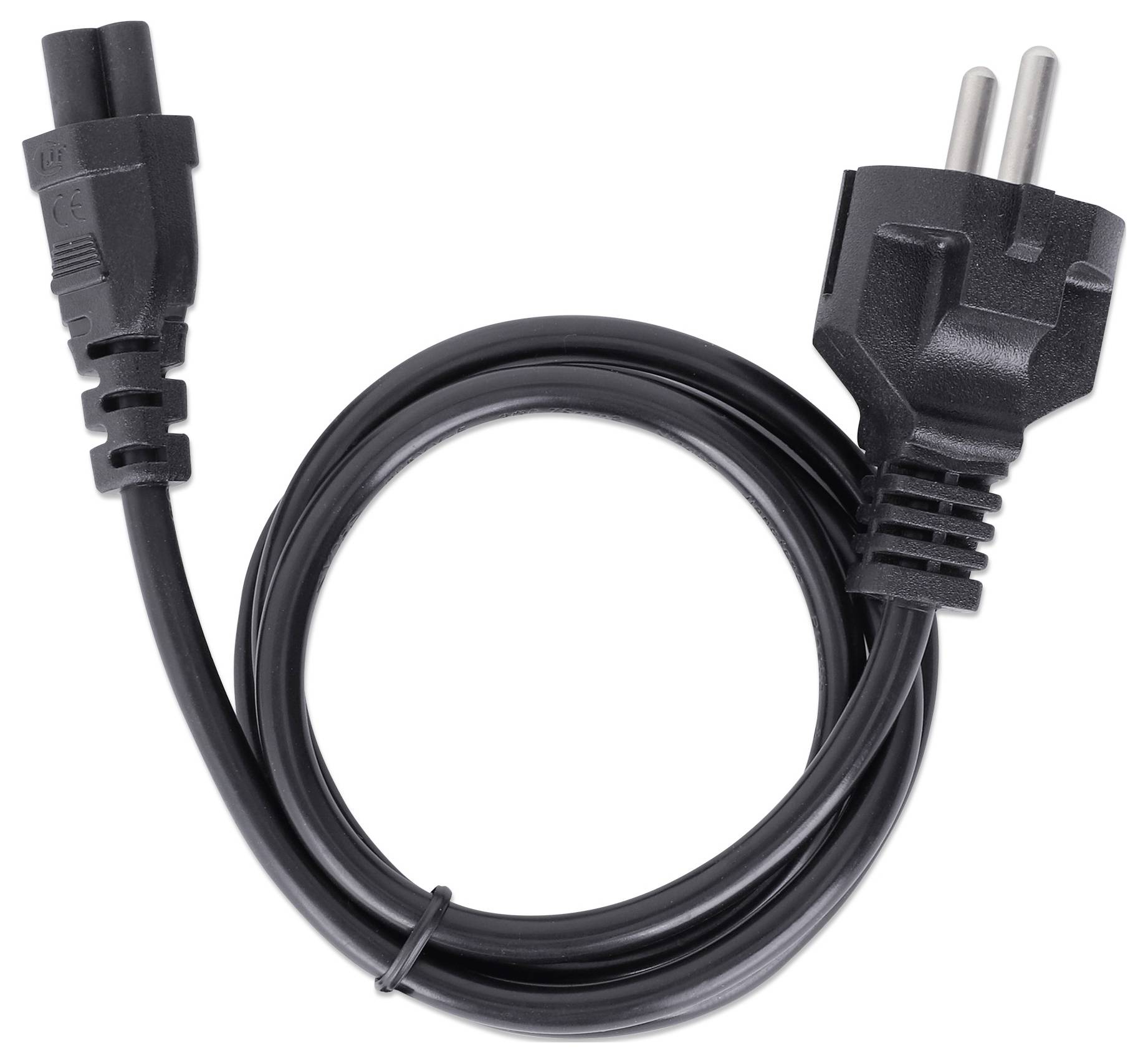

A black electrical power cord, coiled with two-prong male plug on one end and female connector on the other, placed on a light background.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

19 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.49 / piece)

€ 7.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Manhattan power cable C5 to EU protective contact CEE 7/7 3 m power cable "cloverleaf" on 2-pin European earthing contact mains plug

For connecting a device with IEC 60320 C6-interface to a two-pin standard EU-socket or similar socket
Ideal for notebook power supplies, printers and more
Ideal replacement, upgrade or additional power cable for a lost or worn cable
Universal CEE 7/7 hybrid plug fits both European F-type sockets and French E-type sockets
Pure, bare copper wire for maximum conductivity

Technical specifications

Product type: Current Cable

Connection type: IEC devices

No. of A connectors: 1 x

Type A: C5 Mickey Mouse socket

No. of B connections: 1 x

Type B: PG plug

Cable length: 3 m

Factory colour: Black

Connector version: straight

Cable use: Current

Version: Cable

: Copper

Cable design: Round

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3630427 Manhattan Current Cable [1x C5 Mickey Mouse socket - 1x PG plug] 3 m Black

Description

Laptop power cable 3M - Ideal as a replacement or reserve power cable for notebooks and printers
The Manhattan EU power cable CEE 7/7 to C5 (sometimes also referred to as a "Mickey Mouse" plug) connects a laptop power adapter, printer or other compatible device with a C6 connection to an electrical outlet. Ideal as a replacement or for new systems it offers certified quality to ensure reliable connections. These include a cast connector with strain relief and a hard-wearing PVC sheath that provides flexibility even with demanding wiring.

General
1 x CEE 7/7 plug
1 x IEC 60320 C5-socket
Maximum current 2.5 A.
Maximum voltage 250.0 V AC

Physical details
Cable: 100% pure plain copper (Cu)
Material jacket and sleeve: PVC
Number of cores: 3
Number of flex / core strength 24 / 0.2 mm
Insulation thickness 0.6 mm
Jacket thickness 0.8 mm
Total diameter 6.8 mm
Length: 3 m
Cable type: H05VV-F 3G 0.75 mm²
Net weight: 240 g
Gross weight 250 g

Ambient conditions
Operating ambient temperature -10 - 60°C.
Operating humidity (non-condensing): 10 - 85%
Ambient temperature during storage -20 - 70°C.
Storage humidity (non-condensing): 5 - 90%

This text is machine translated.
