Manhattan USB cable USB 3.2 1st Gen USB-A plug, USB-A socket 5.00 m Black 150712
EAN:
Part number:
Item no:
Product type
USB cable
Cable specs
USB 3.2 1st Gen
Version
Cable extension
Connection type
USB-A to USB-A
Connections
USB-A plug
USB-A socket
Datasheet (PDF)
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
Only 7 Piece(s) available

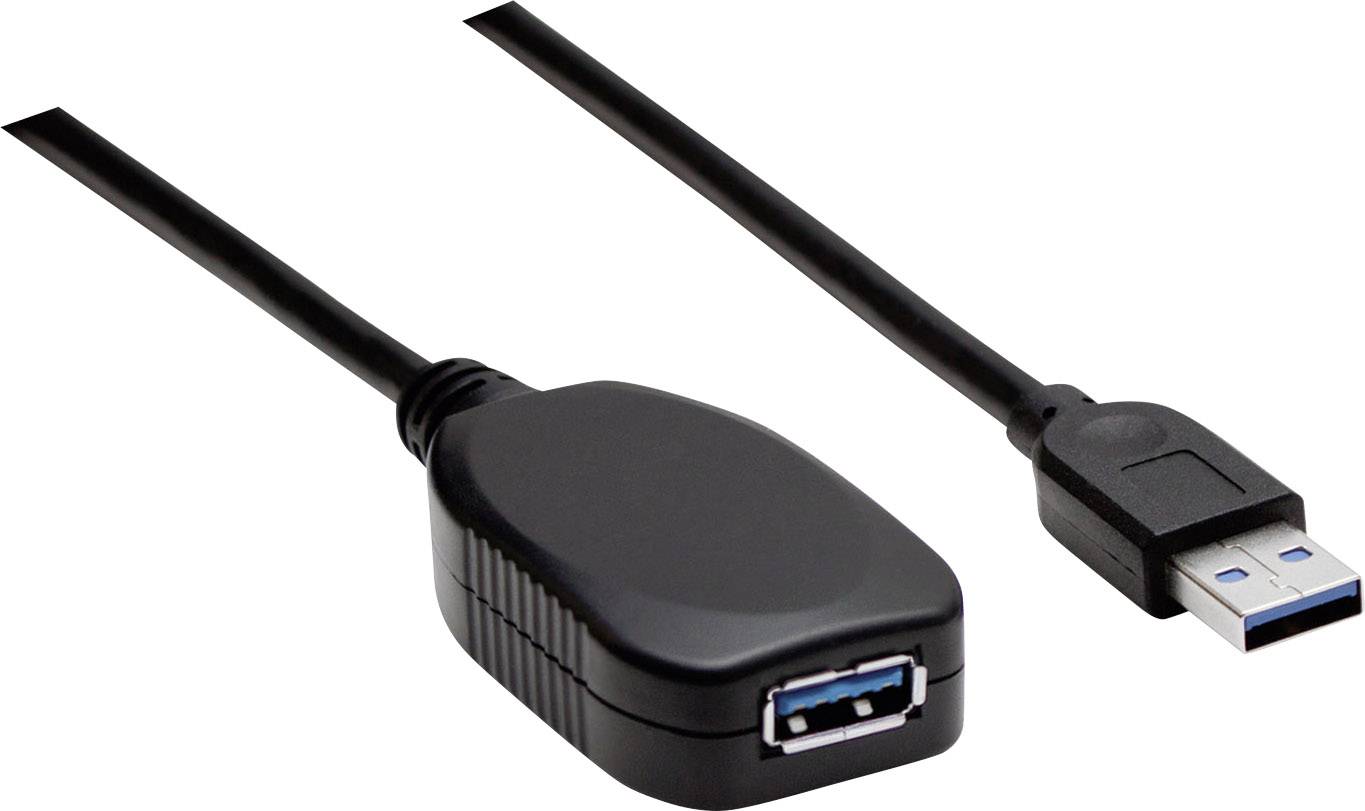

Manhattan SuperSpeed USB Active Extension Cable, A Male / A Female, 5 m (16 ft.)
Highlights & Details
- Extends and boosts the signal to any USB device – supports data transfer speeds up to 5 Gbps
- Built-in repeater helps maintain USB 3.0 signal quality, electrical and timing specifications
- Extends the connections to enclosures and other peripherals up to 5 m (16 ft.) without signal loss
- Plug and play; Windows/7/8 and Mac compatible; bus power requires no external power supply
Technical specifications
- Product type
USB cable
- Cable specs
USB 3.2 1st Gen
- Version
Cable extension
- Connection type
USB-A to USB-A
- Connections
USB-A plug
USB-A socket
- Factory colour
Black
- Cable length
5.00 m
- Shielding
Shielding film
28
- Cable design
Round
- Connector version
straight
Copper
- Transfer rate (max.)
5 GBit/s
- Max. power
4.5 W @ 5 V / 0.9 A
- Connection type
USB
- Type A
USB 3.2 1st Gen connector A (USB 3.0)
- Type B
USB 3.2 1st Gen port A (USB 3.0)
- Halogen-free
No
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
USB 3.2 1st Gen (USB 3.0)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1308094 Manhattan USB cable USB 3.2 1st Gen USB-A plug, USB-A socket 5.00 m Black 150712
User & Safety Instructions
User & Safety Instructions 1308094 Manhattan USB cable USB 3.2 1st Gen USB-A plug, USB-A socket 5.00 m Black 150712
Description
Easily overcome distance limitations to connect USB devices.
Use the Manhattan SuperSpeed USB Active Extension Cable to connect a computer USB port to a USB device almost anywhere in the room. Extend 5 meters more to the existing connection without signal loss. Manhattan SuperSpeed USB Active Extension Cable with built-in repeater is fully compliant with USB 3.0 and earlier specifications to help devices operate at maximum performance levels. Plug-and-play capability, Windows/7/8/Macintosh versatility and no external power or driver requirements help provide greater flexibility in computer and peripheral placement and office layout.
Use the Manhattan SuperSpeed USB Active Extension Cable to connect a computer USB port to a USB device almost anywhere in the room. Extend 5 meters more to the existing connection without signal loss. Manhattan SuperSpeed USB Active Extension Cable with built-in repeater is fully compliant with USB 3.0 and earlier specifications to help devices operate at maximum performance levels. Plug-and-play capability, Windows/7/8/Macintosh versatility and no external power or driver requirements help provide greater flexibility in computer and peripheral placement and office layout.
Features
- Standards and Certifications
- USB 3.0
- CE
- RoHS
- WEEE
- Electrical:
- USB power output: 5 V ±5% / 269 mA
- General
- Throughput: 5 Gbps
- Bus powered
- All USB-supported operating systems
- Connectors
- USB 3.0 Standard-A male
- USB 3.0 Standard-A female
- Nickel plated
- Molded PVC boot
- Cable
- 28 AWG conductors
- Shielded
- Withstanding voltage: 300 V DC 10 ms
- Insulation resistance: 5 MΩ
- Contact resistance: 10 Ω
- Thermal plastic casing
