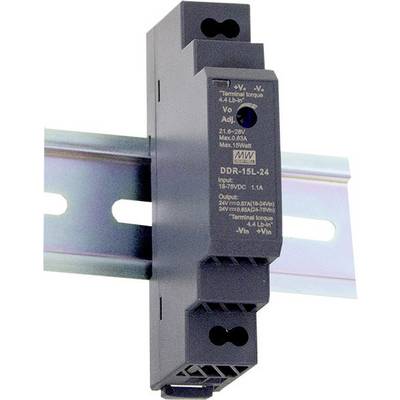

MEAN WELL DDR-15L-24 Rail mounted DC/DC converter (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€
Highlights & Details
MEANWELL DC/DC converter series DDR-15 for DIN rail Single Output Input voltage ratio: 4:1 Power: 15 W
- For DIN rail mounting.
- Can be used on DIN-rail TS-35/7.5 or 15 can be installed
- Very narrow: width only 17.5 mm
- Wide input voltage range 4:1
- No minimum load required
- Regulated output voltage (±10%)
- Cooling by free air convection
- Input/output insulation 4000 V
- Protection: short circuit, overload, over voltage, input polarity, input under voltage protection
- This text is machine translated.
Technical specifications
- Nominal input voltage
48 V/DC
- Product type
Rail mounted DC/DC converter (DIN)
- Min. input voltage
18 V DC
- Output voltage
24 V DC
- Input voltage
18-75 V DC
- Input voltage (max.)
75 V DC
- Max. output current
0.63 A
- Output current (max.) - rounded
630 mA
15 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Clamp
- Dim
(L x W x H) 17.5 x 54.5 x 90 mm
- Weight
68 g
- Output voltage (max.)
28 V DC
- Output voltage (min.)
21.6 V DC
- Operating temperature (max.)
+85 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
DDR-15L-24
- Content
1 pc(s)
- MTBF
907000 h
- PSU features
DC-to-DC converter
Regulated
Adjustable voltage output
- Width
54.5 mm
- Height
90 mm
- Length
17.5 mm
- Type
DDR-15L-24
- Efficiency
87 %
Documents & Downloads
Datasheet
Datasheet 2113542 MEAN WELL DDR-15L-24 Rail mounted DC/DC converter (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2113542 MEAN WELL DDR-15L-24 Rail mounted DC/DC converter (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2113542 MEAN WELL DDR-15L-24 Rail mounted DC/DC converter (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)
Description
Features
- Can be used on DIN-rail TS-35/7.5 or 15 can be installed
- Wide input voltage range 4:1
- No minimum load required
- Regulated output voltage (±10%)
- Cooling by free air convection
- Input/output insulation 4000 V
- Protection: short circuit, overload, over voltage, input polarity, input under voltage protection
