Name: MEAN WELL DDR-30L-15 Rail mounted DC/DC converter (DIN) 15 V DC 2 A 30 W No. of outputs:1 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2113500
Availability: InStock

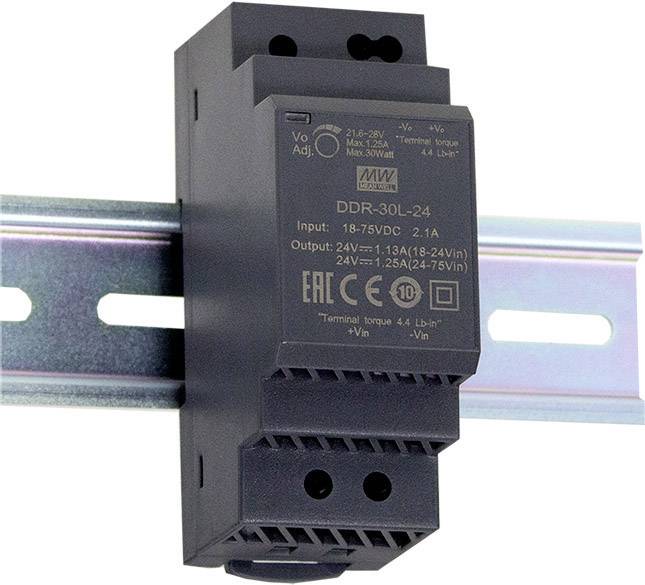

'DDR-30L-24' DIN rail power supply, 24V output at 1.25A, mounted on metal bracket. Black housing with technical details.

Datasheet (PDF)

Dispatches on Mon 19 Oct

64 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 29.99 / piece)

€ 29.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter series DDR-30 for DIN rail Single Output Input voltage ratio: 4:1 Power: 30 W

For DIN rail mounting.
Can be used on DIN-rail TS-35/7.5 or 15 can be installed
Width of only 35 mm
Wide input voltage range 4:1
No minimum load required
Regulated output voltage (±10%)
Cooling by free air convection
Input/output insulation 4000 V
Protection: short circuit, overload, over voltage, input polarity, input under voltage protection
This text is machine translated.

Technical specifications

Nominal input voltage: 48 V/DC

Product type: Rail mounted DC/DC converter (DIN)

Min. input voltage: 18 V DC

Output voltage: 15 V DC

Input voltage: 18-75 V DC

Input voltage (max.): 75 V DC

Max. output current: 2 A

Output current (max.) - rounded: 2 A

: 30 W

Output type (power supply units): Adjustable

Output voltage (nominal): 15 V DC

No. of outputs: 1 x

Connection: Clamp

Dim: (L x W x H) 35 x 54.5 x 90 mm

Weight: 120 g

Output voltage (max.): 16.5 V DC

Output voltage (min.): 13.5 V DC

Operating temperature (max.): +85 °C

Operating temperature (min.): -40 °C

Manufacturer part #: DDR-30L-15

Content: 1 pc(s)

MTBF: 483300 h

PSU features: DC-to-DC converter
Regulated
Adjustable voltage output

Width: 54.5 mm

Height: 90 mm

Length: 35 mm

Type: DDR-30L-15

Efficiency: 90 %

UKCA: yes

Compliance & Certifications

Certified by EU Garan
