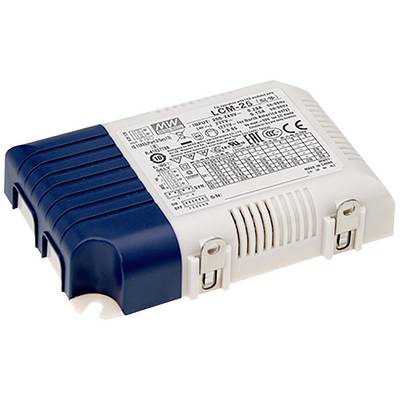

MEAN WELL LCM-25DA2 LED driver Constant current 25 W 0.7 A 6 - 36 V DALI 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 36.99 / piece)
€ 36.99
incl. VAT
14-day return policy included
Highlights & Details
Mean Well AC/DC-LED-power supply CC 25 W Dali-2 push-DIMM
- Constant current
- 6 - 36 V
- 0.7 A
Technical specifications
- Connector type, input: Plug-in terminalInput current 0.17 AConnector type, output: Plug-in terminalEfficiency 86 %Leakage current, max. 0.5 mASwitch-on current, max. 20 A
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 105 x 68 x 23 mm
- Output voltage (max.)
36 V
- Output voltage (min.)
6 V
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- Protection class
IP20
- LED driver features
DALI
- Max. power
25 W
- No. of outputs
1 x
- Input voltage (max.)
277 V AC
375 V DC
- Min. input voltage
180 V AC
254 V DC
- Weight
170 g
- Power range
25 W (max)
- Width
68 mm
- Height
23 mm
- Length
105 mm
- Max. temperature
+85 °C
- Min. temperature
-30 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749184 MEAN WELL LCM-25DA2 LED driver Constant current 25 W 0.7 A 6 - 36 V DALI 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749184 MEAN WELL LCM-25DA2 LED driver Constant current 25 W 0.7 A 6 - 36 V DALI 1 pc(s)
Warranty Terms
Warranty Terms 2749184 MEAN WELL LCM-25DA2 LED driver Constant current 25 W 0.7 A 6 - 36 V DALI 1 pc(s)
Description
Features
- Application: LightingHousing: Enclosed plastic
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
