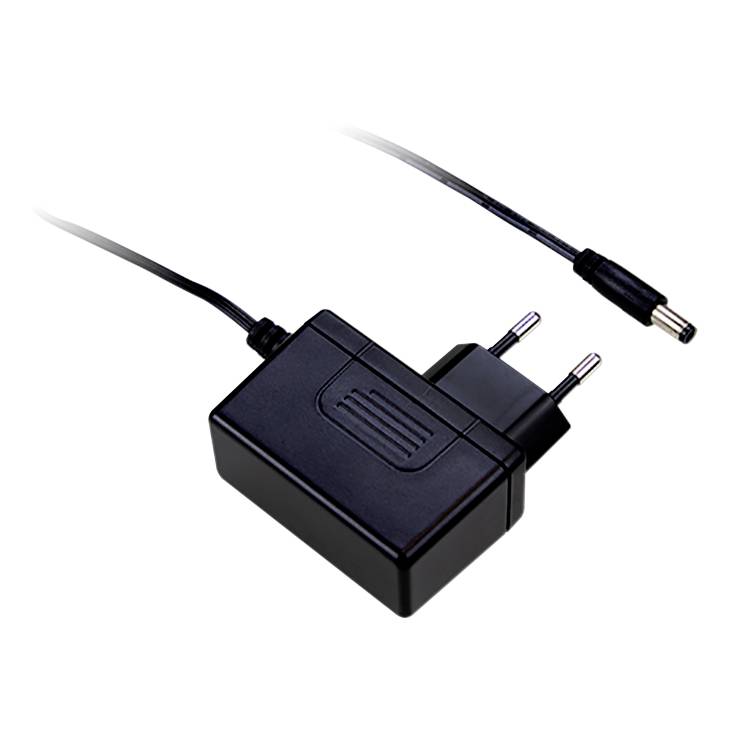

MEAN WELL LED transformer Constant voltage 30 W 1.25 A not dimmable 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 20.99 / piece)
€ 20.99
incl. VAT
14-day return policy included
Highlights & Details
LED SNT external 30W 24V 1.25A Euro
- Constant voltage
- 1.25 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Operating current
1.25 A
- Dim
(L x W x H) 75.5 x 32 x 47.5 mm
- Test mark
MM-Zeichen; SELV
- Max. output current
1.25 A
- Output current (max.) - rounded
1.25 A
- Operating voltage
24 V
- Protection class
II
- LED driver features
not dimmable
- Connection
Low power socket 5.5/2.1 mm
- Max. power
30 W
- No. of outputs
1 x
- Input voltage (max.)
373 V DC
264 V AC
- Min. input voltage
255 V DC
180 V AC
- Weight
200 g
- Power (min.)
30 W
- Power range
30 up to 30 W
- Width
32 mm
- Height
47.5 mm
- Length
75.5 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900946 MEAN WELL LED transformer Constant voltage 30 W 1.25 A not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900946 MEAN WELL LED transformer Constant voltage 30 W 1.25 A not dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900946 MEAN WELL LED transformer Constant voltage 30 W 1.25 A not dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
