Buy MEAN WELL MFM-20-3.3 SMPSU 3.3 V DC 4.5 A 14.9 W

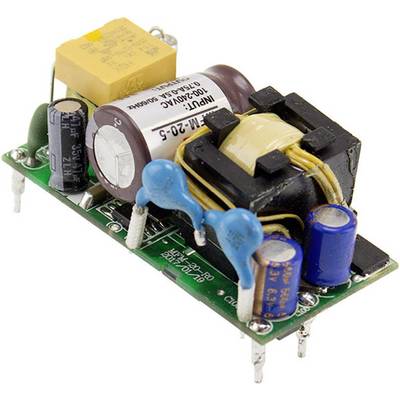

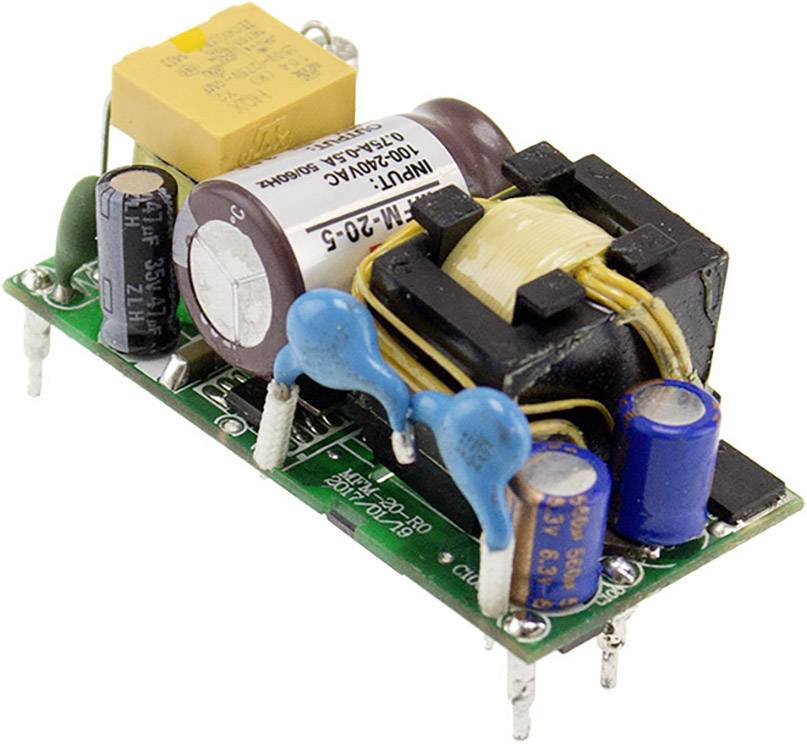

A small electronic circuit board with multiple capacitors, inductors and resistors, typical of power supply modules.

Datasheet (PDF)

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 11.76 / piece)

€

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

MEANWELL power supply series MFM-20 Medical open-frame (On Board) Single Output Power: 20 W

Output 3.3 V DC / 4.5 A
Power 14.9 W
Solder pins

Technical specifications

Max. output current: 4.5 A

Output current (max.) - rounded: 4.5 A

Dim: (L x W x H) 49 x 23.8 x 23 mm

Height: 23 mm

Length: 49 mm

Width: 23.8 mm

Connection: Solder pins

Type: open

PSU features: Adjustable voltage output

Type: MFM-20-3.3

MTBF: 121000 h

Input voltage (max.): 264 V AC

Min. input voltage: 80 V AC

Output voltage (max.): 3.3 V DC

No. of inputs: 1 x

No. of outputs: 1 x

: 14.9 W

Type: Pulsed

PFC: No

Max. temperature: +85 °C

Min. temperature: -35 °C

Weight: 28 g

Product type: SMPSU

Documents & Downloads

Datasheet

Datasheet 2142588 MEAN WELL MFM-20-3.3 SMPSU 3.3 V DC 4.5 A 14.9 W

User & Safety Instructions

User & Safety Instructions 2142588 MEAN WELL MFM-20-3.3 SMPSU 3.3 V DC 4.5 A 14.9 W

Warranty Terms

Warranty Terms 2142588 MEAN WELL MFM-20-3.3 SMPSU 3.3 V DC 4.5 A 14.9 W

Description

Mean corrugated represents a new power supply series with high power density: the on-board type series MFM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (less than 80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.
