Buy MEAN WELL SPBW06G-05 DC/DC converter (module) 1.2 A 6 W No. of outputs: 1 x Content 1 pc(s)

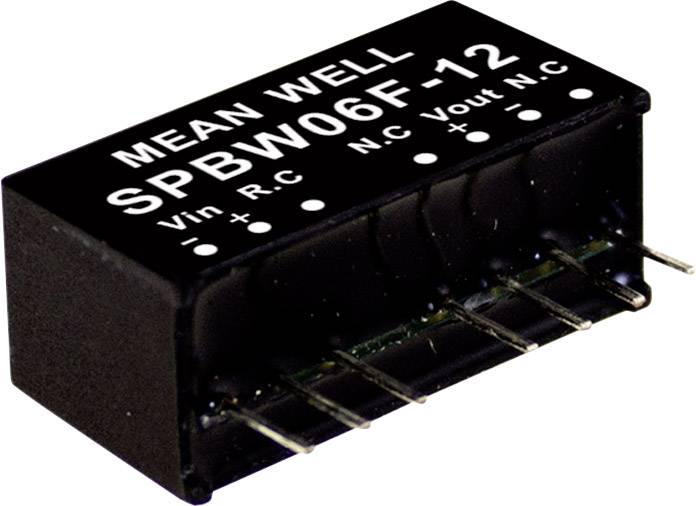

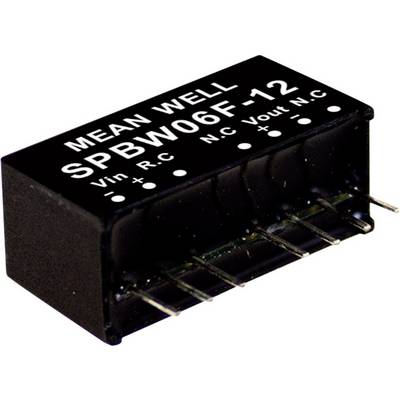

An electronic component with the inscription 'MEAN WELL SPBW06F-12', showing several connection pins for electrical connection.

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 13.44 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules series SPBW06 SIP8/SIL 8 Case Single Output Input voltage ratio: 4:1 Power: 6 W regulated

In the SIP8/SIL8-casing
For direct PCB mounting
Wide input voltage range 4:1
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously) and overload
Efficiency up to 89%

Technical specifications

Product type: DC/DC converter (module)

Type: SPBW06G-05

Min. input voltage: 18 V DC

Input voltage (max.): 75 V DC

No. of outputs: 1 x

Max. output current: 1.2 A

Output current (max.) - rounded: 1.2 A

Efficiency (max.): 85 %

: 6 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 21.8 x 9.2 x 11.1 mm

Height: 11.1 mm

Length: 21.8 mm

Width: 9.2 mm

Output voltage (max.): 5 V DC

Weight: 4.8 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2143551 MEAN WELL SPBW06G-05 DC/DC converter (module) 1.2 A 6 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143551 MEAN WELL SPBW06G-05 DC/DC converter (module) 1.2 A 6 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143551 MEAN WELL SPBW06G-05 DC/DC converter (module) 1.2 A 6 W No. of outputs: 1 x Content 1 pc(s)

Description

With the launch of eight new series of unsettled (SPU 01, DPU01) and regulated DC/DC converters (02, 02, 03, 03, SPBW DPBW SPBW DPAN06 and DPBW06) in the area of up to 10 W now offers mean corrugated a complete range of power supply solutions. These eight series are designed so that a standard SIP Pin assignment. In addition to a wide input range (2:1 and 4:1) and a wide operating temperature range from -40 up to +90 °C, all with 1500 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.

This text is machine translated.
