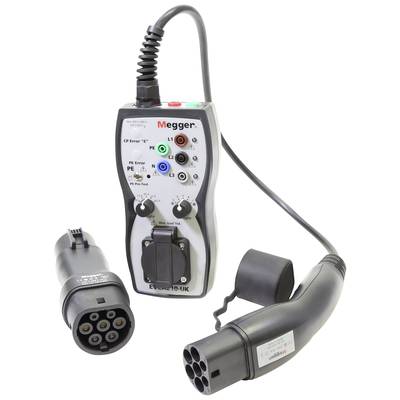

Megger EVCA210-CH Adapter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 587.39 / piece)
€
Highlights & Details
EV-Adapter for loading column test, Swiss design
Technical specifications
- Input voltage: Single-phase system up to 250 V; three-phase system up to 430 V.
- Measurement category CAT II 300V
- Operating temperature 0 to +40 oC
- Protection class: IP54
- Product type
Adapter
- Dim
(L x W x H) 6.2 x 22.5 x 14.5 cm
- Weight
780 g
- Width
22.5 cm
- Height
14.5 cm
- Length
6.2 cm
Documents & Downloads
Datasheet
Datasheet 3027885 Megger EVCA210-CH Adapter
User & Safety Instructions
User & Safety Instructions 3027885 Megger EVCA210-CH Adapter
Description
The EVCA210 was specially developed to meet European and other international standards. They can be used with all single and three-phase charging stations of electric vehicles with the corresponding plug connectors. They are designed to check the function and safety of a charging station. Using the adapters you can test with suitable single or multi-function measuring devices at EV charging stations in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722. Charging stations should be checked and regularly checked during the initial installation.
This text is machine translated.
This text is machine translated.
Features
- Push button for PE pre-test
- Pushbutton for CP error simulation "E"
- Pushbutton for PE fault simulation (ground fault)
- Rotary switch for PP status simulation
- Rotary switch for CP status simulation

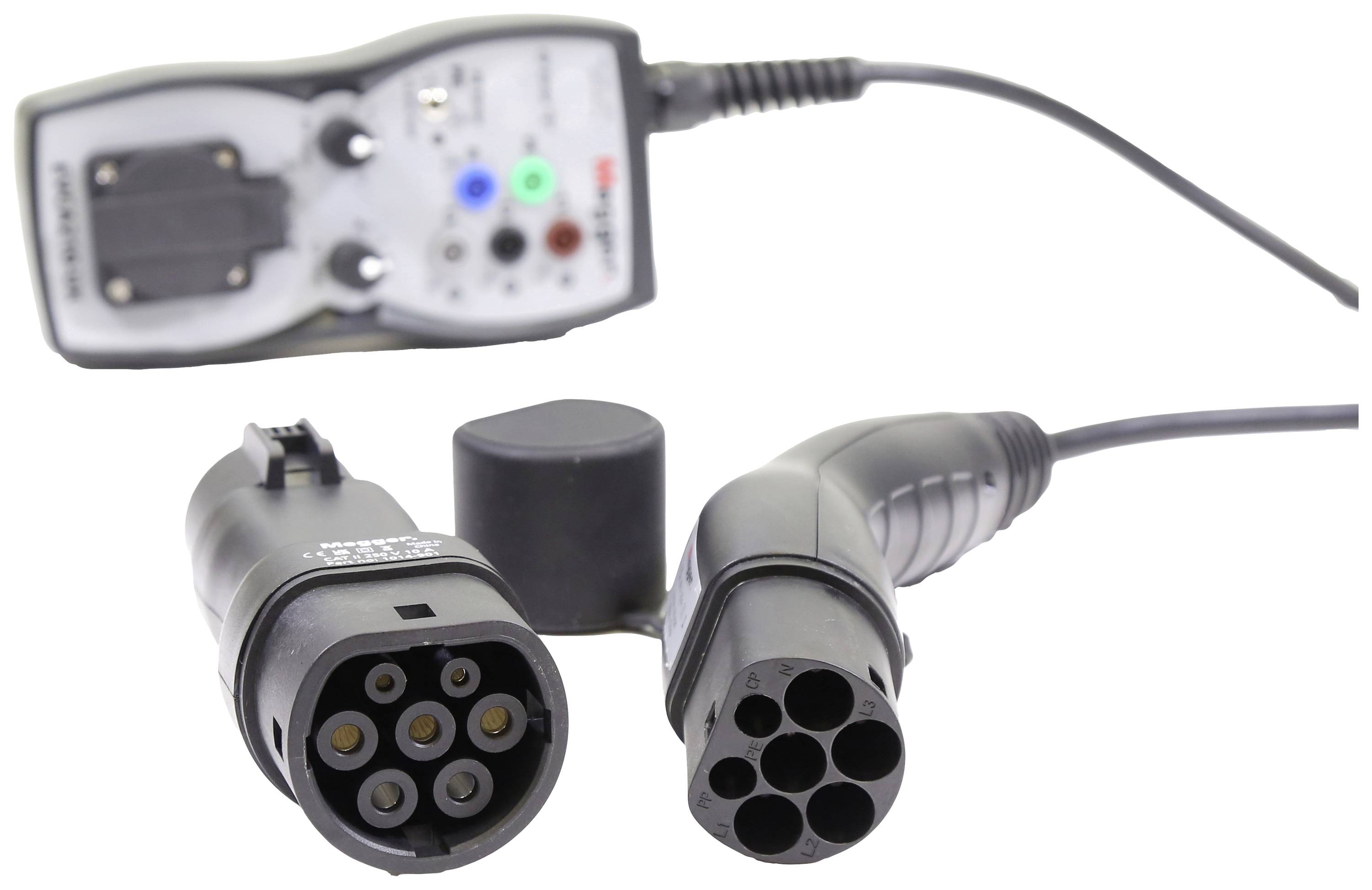

- Type 2 charging plugs for charging stations with a socket in control panel mounting or fixed cables with vehicle connectors

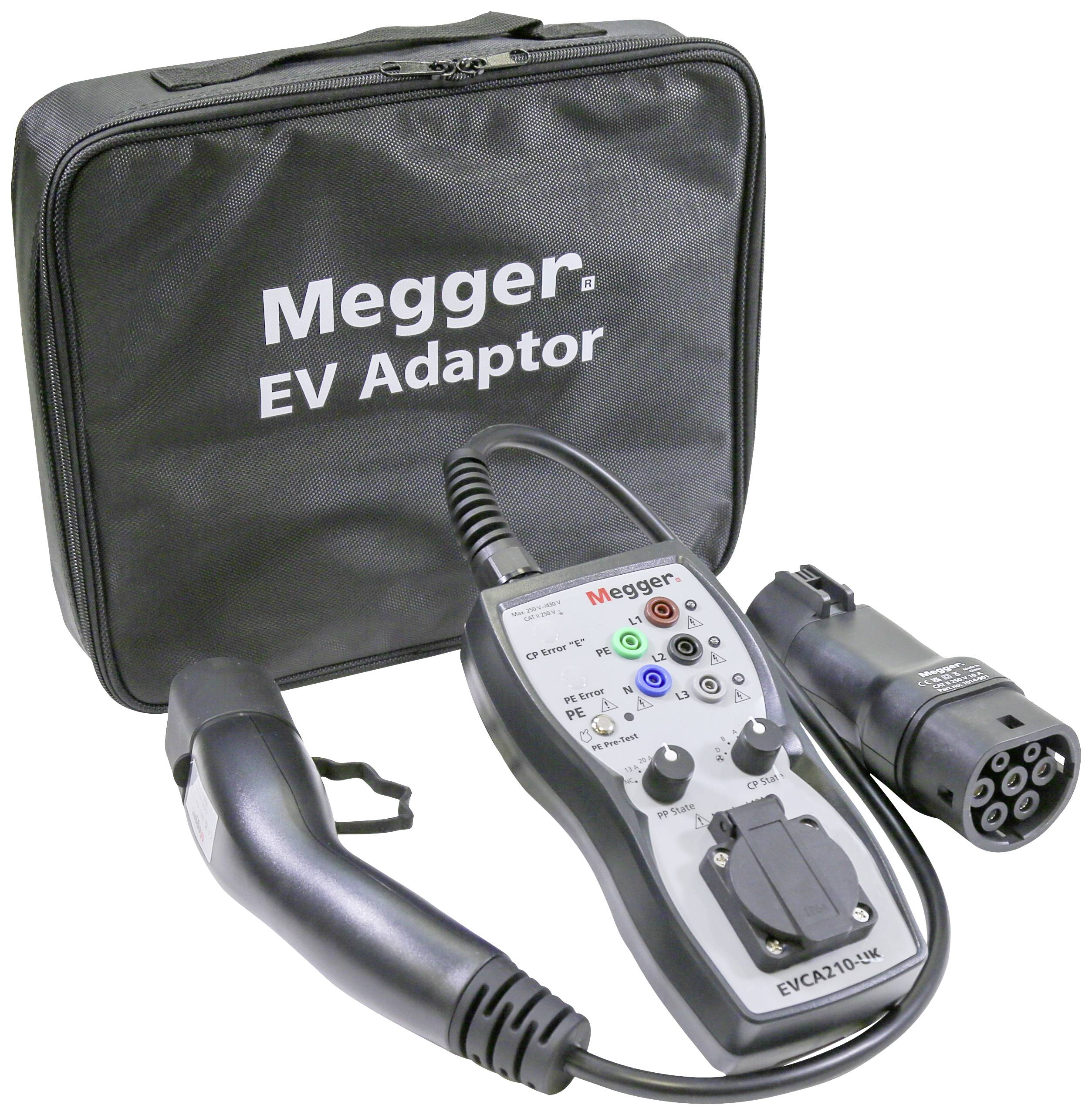

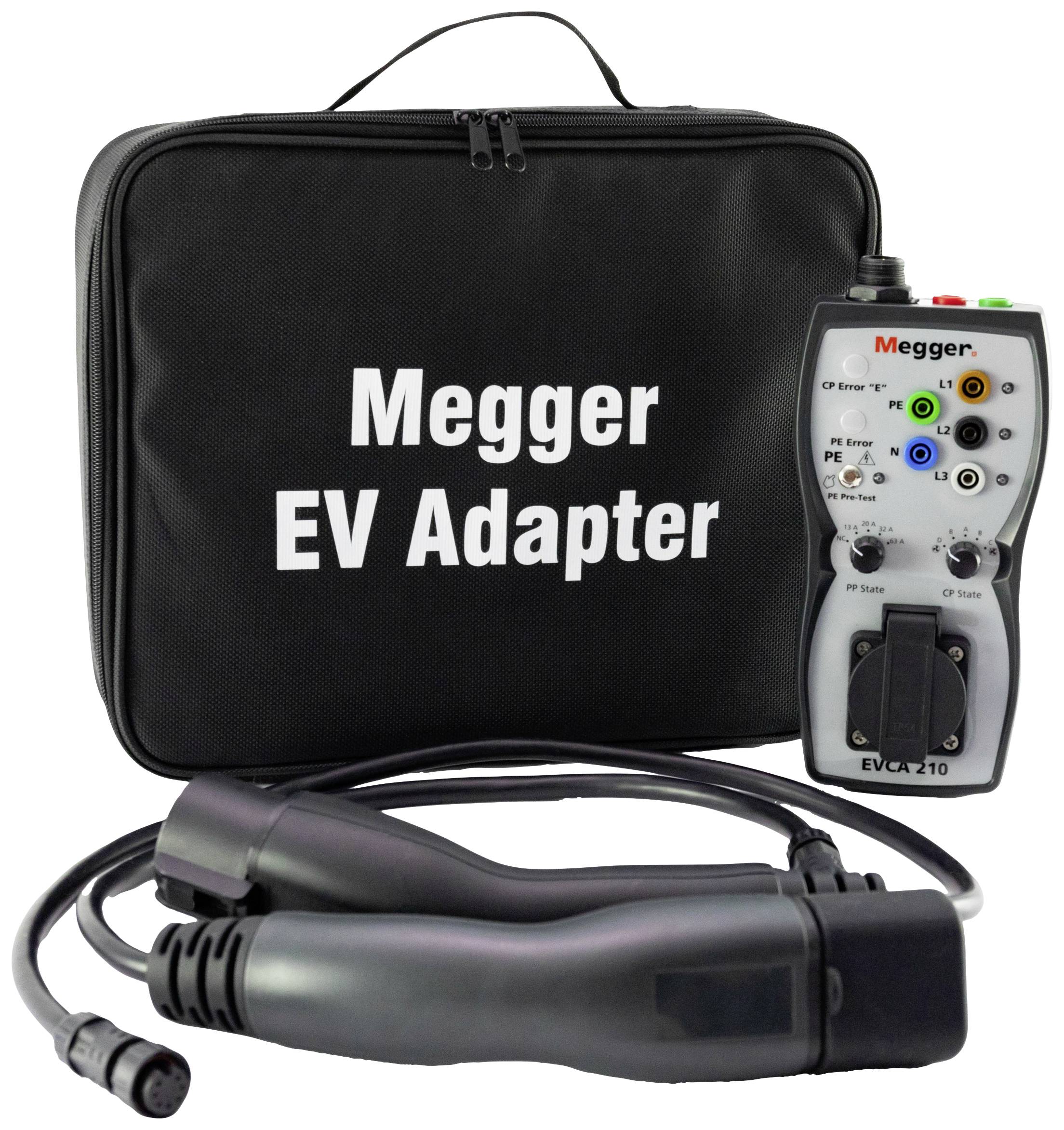

- Carrying case
- Compliance with Low Voltage Directive LVD 2014/35/EU
Scope of delivery
- Type 2 charger plug

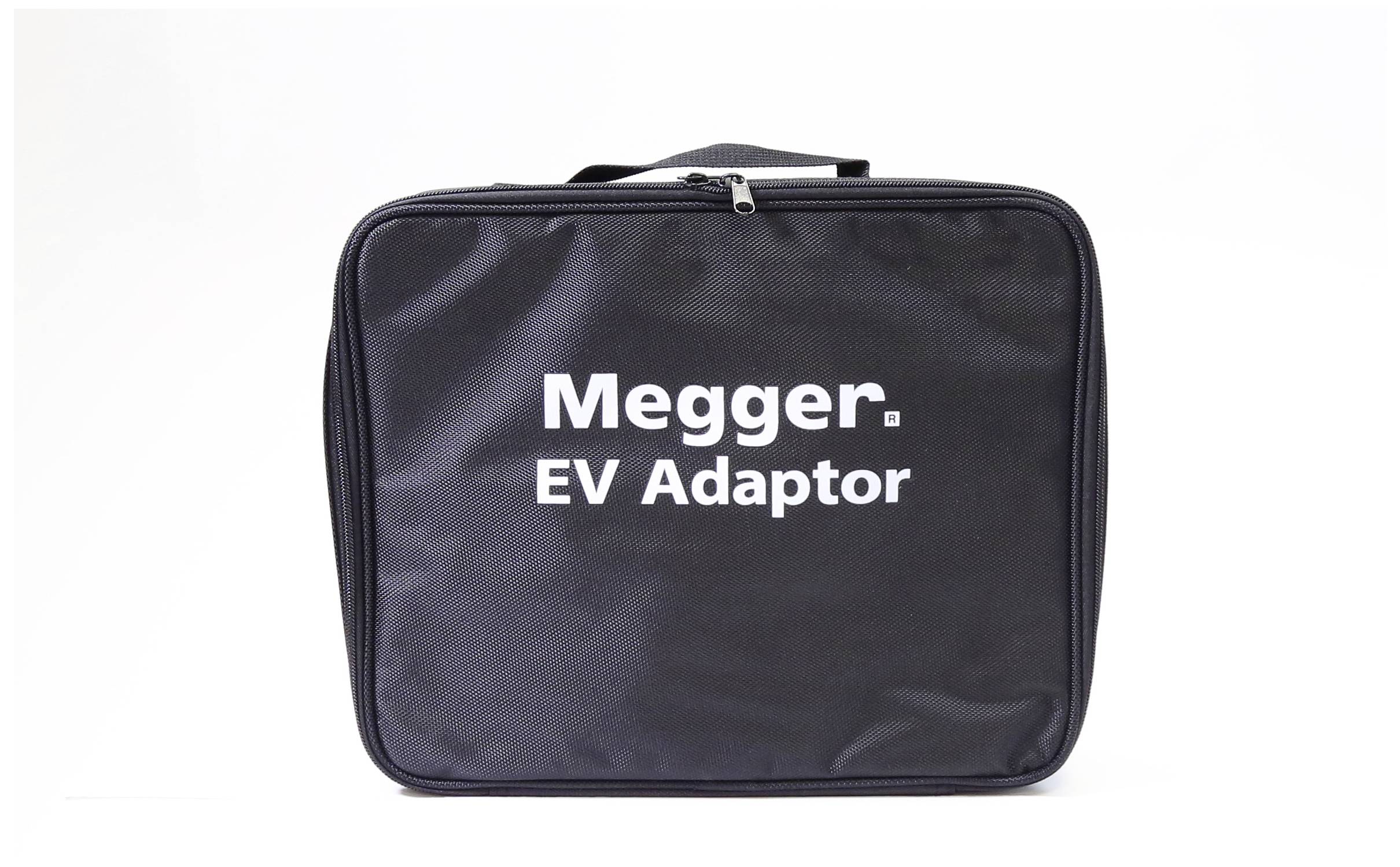

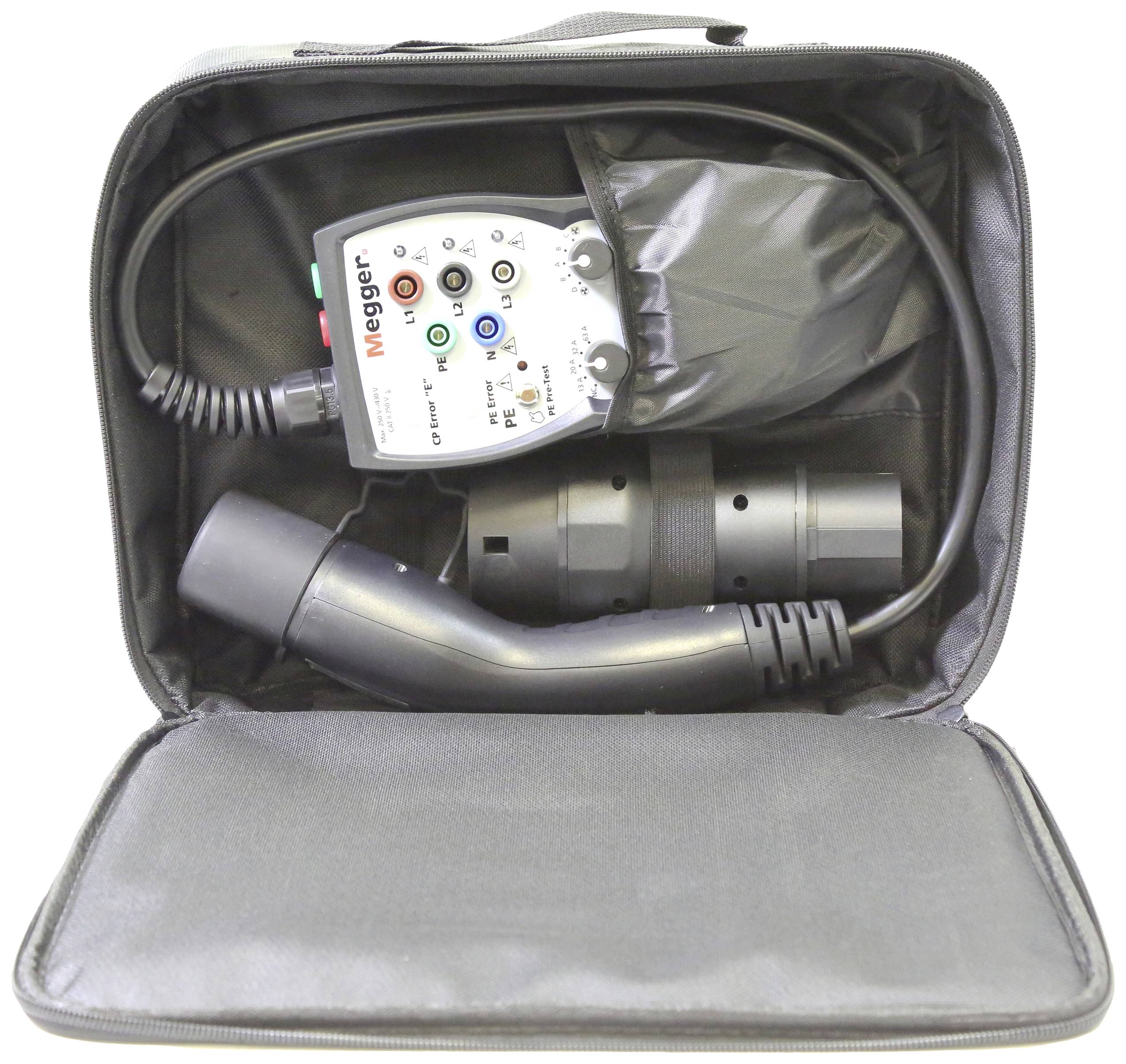

- Padded carrying case
- User manual
