Mentor 1275.1001 Vertical Fibre Optic Cable For SMD
EAN:
Part number:
Item no:
Product type
Light pipe
Mounting type
Panel-fit
Press-fit
Width
10 mm
Height
5 mm
Length
18.1 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.61
15
8% = € 0.05
€ 0.56
25
10% = € 0.06
€ 0.55
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.61 / piece)
€ 3.05
plus VAT.
14-day return policy included
Highlights & Details
Mentor 1275.1001 Vertical Fibre Optic Cable For SMD
Our service for you
Technical specifications
- Type
1275.1001
- Product type
Light pipe
- Mounting type
Panel-fit
Press-fit
- Manufacturer
Mentor
- Configuration
1 x 1
- Type
Rigid
- Lens shape
Dome
- Factory colour
Transparent
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Lens size (Ø)
3 mm
- Width
10 mm
- Height
5 mm
- Length
18.1 mm
- (Ø)
3 mm
- Dim
(Ø x H) 3 mm x 5 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 183453 Mentor 1275.1001 Vertical Fibre Optic Cable For SMD
User & Safety Instructions
User & Safety Instructions 183453 Mentor 1275.1001 Vertical Fibre Optic Cable For SMD
Description

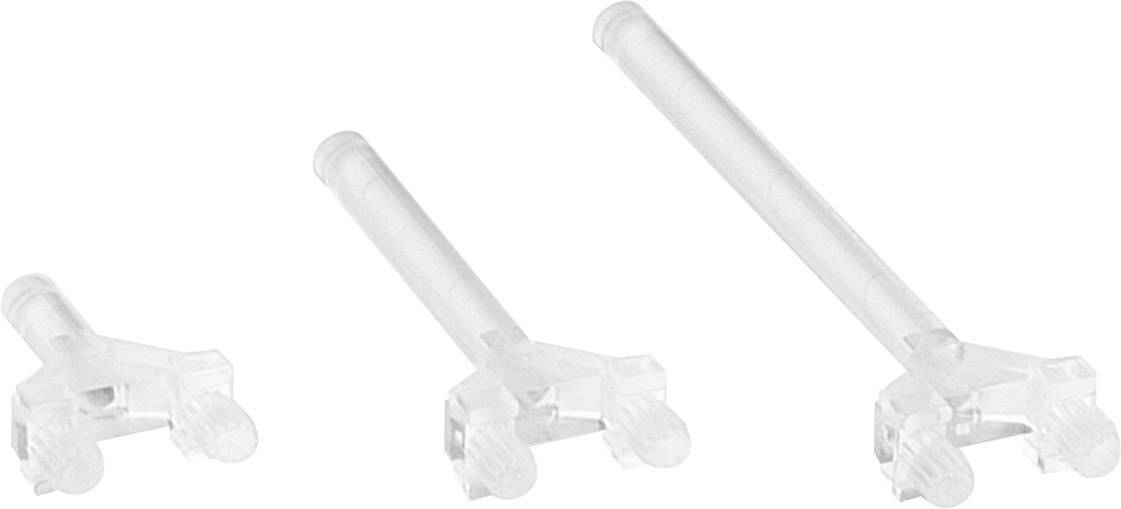

This fibre optic cable component with a 3 mm dia. is press fitted onto the circuit board by means of pins. It can be combined with a range of SMD LEDs and is supplied in this case in a length of A = 15 mm.
