Mentor 1316.2001 Flexible Fibre Optic Cable System With THT LEDs
Product type
Light pipe
Mounting type
Panel-fit
Press-fit
Width
6 mm
Height
6 mm
Length
80 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2.99 / piece)
€ 2.99
incl. VAT
14-day return policy included
Highlights & Details
Mentor 1316.2001 Flexible Fibre Optic Cable System With THT LEDs
Our service for you
Technical specifications
- Type
1316.2001
- Product type
Light pipe
- Mounting type
Panel-fit
Press-fit
- Manufacturer
Mentor
- Configuration
1 x 1
- Type
Flexible
- Lens shape
Circular
- Factory colour
Transparent
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Lens size (Ø)
4.2 mm
- Width
6 mm
- Height
6 mm
- Length
80 mm
- Dim
(L x W x H) 80 x 6 x 6 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 183638 Mentor 1316.2001 Flexible Fibre Optic Cable System With THT LEDs
User & Safety Instructions
User & Safety Instructions 183638 Mentor 1316.2001 Flexible Fibre Optic Cable System With THT LEDs
Description

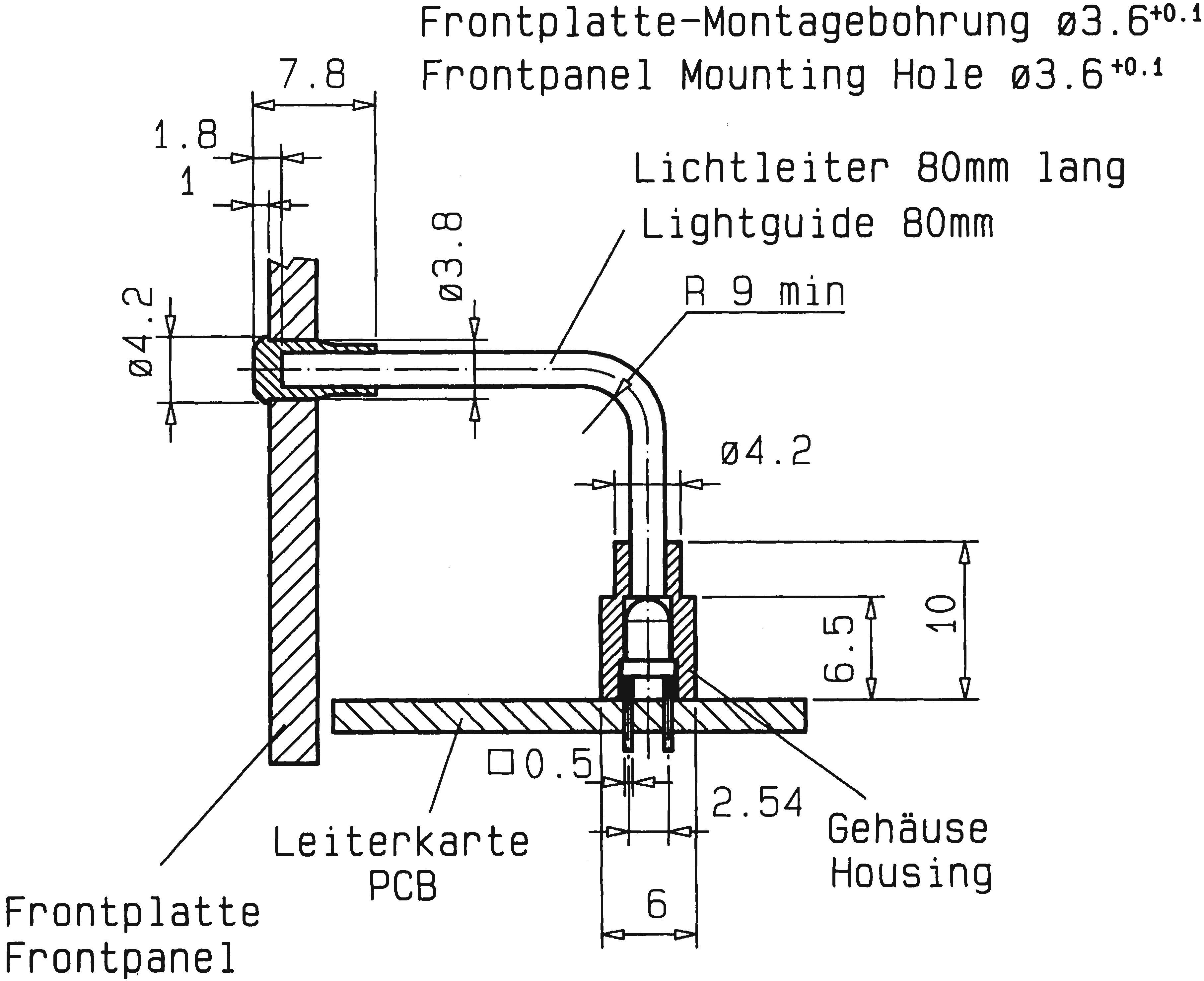

The system includes a standing fibre optic record in connection with a red THT LED for a outlet voltage of 2 - 2.6 V at a current of 40 mA. Also includes a 2000 µm fibre optic and lens that, together with a clamp, forms the mounting on the front plate.
Scope of delivery

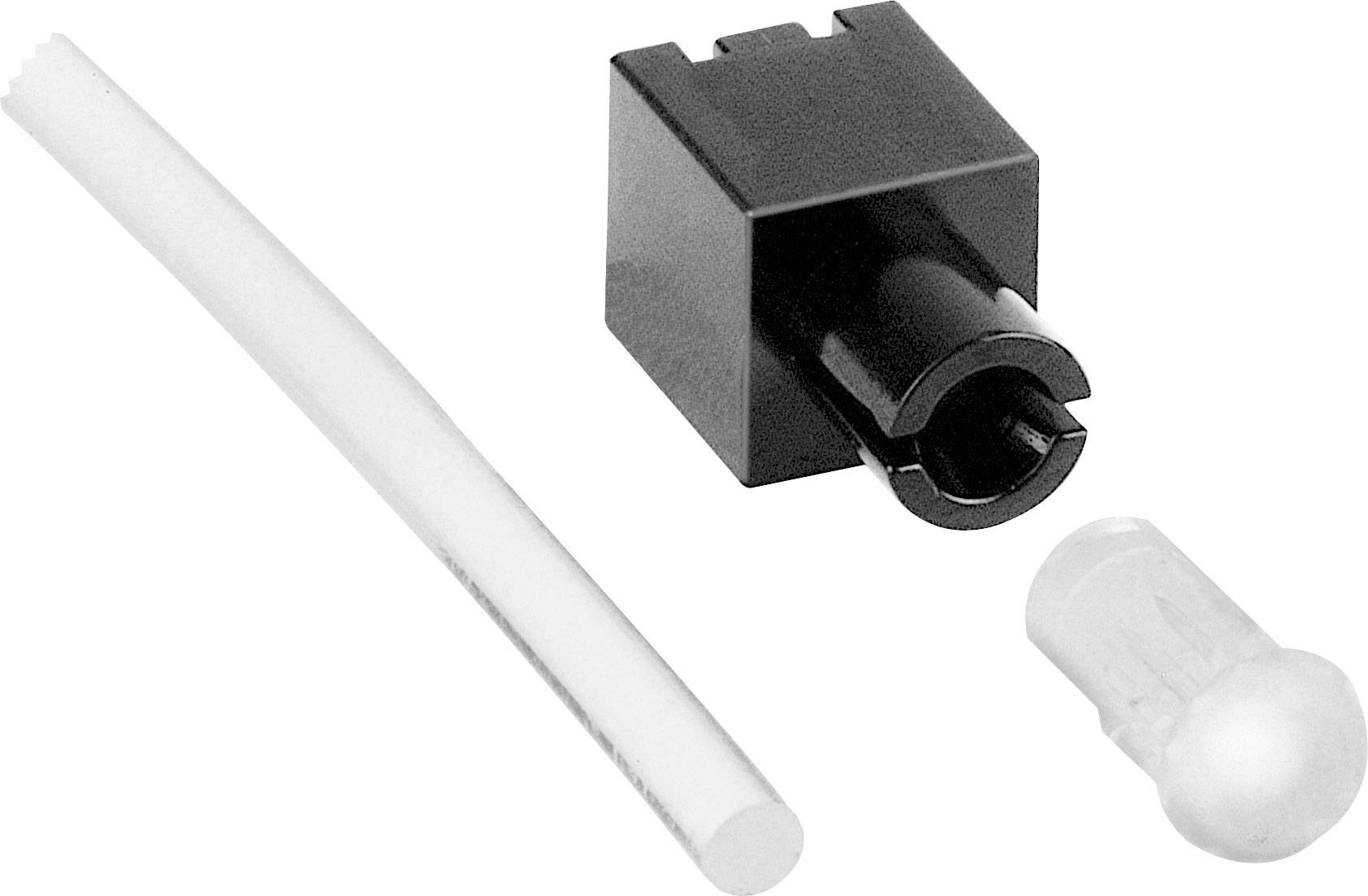

- Red THT LED UF 2 - 2.6 V/40 mA, 2000 µm fibre optic, lens
Hints
Individual components are supplied unassembled.
