Buy Mentor 1847.1032 Toggle switch 60 V 0.5 A IP50 latch 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

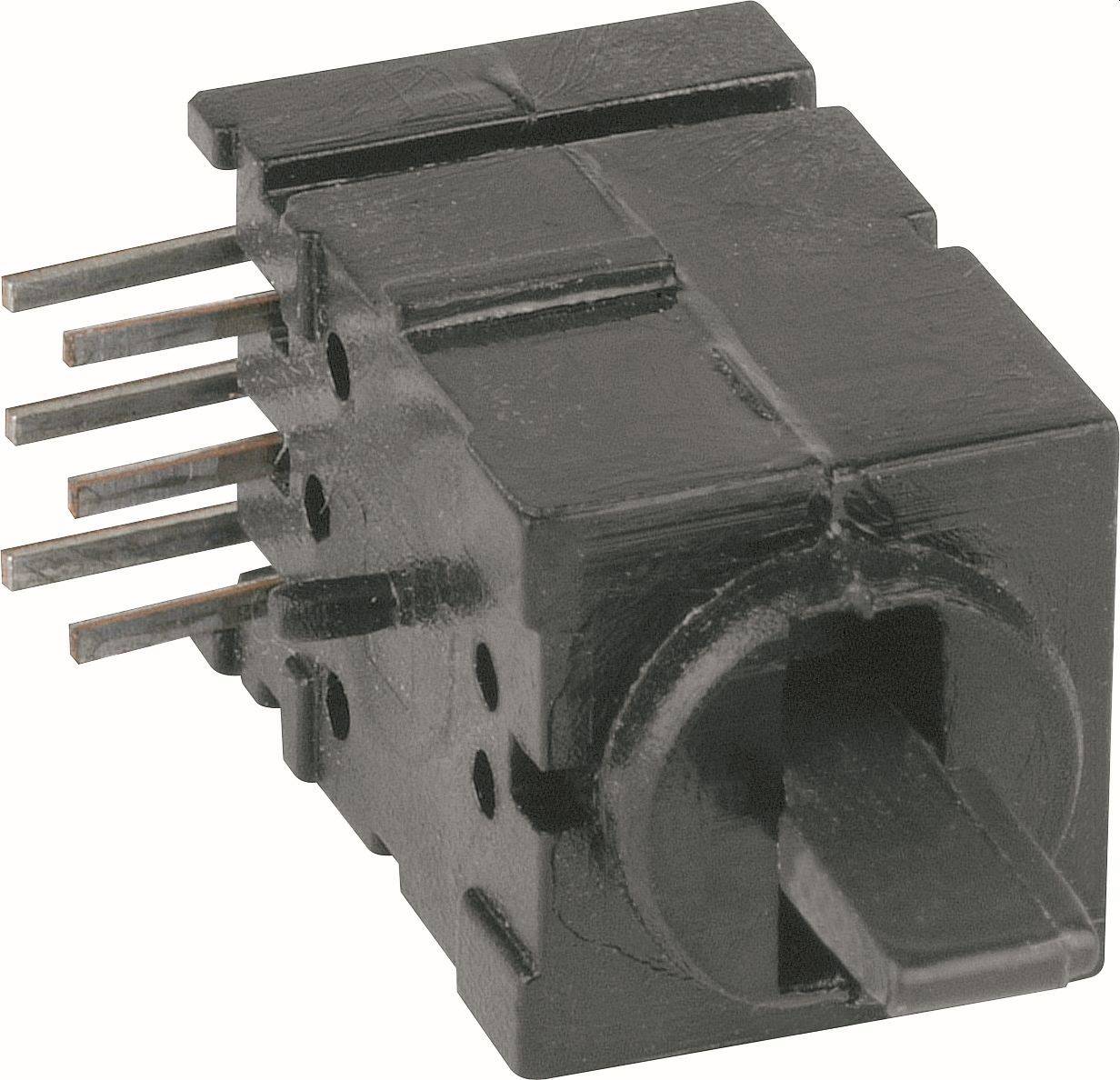

Close-up of a black panel-mount electrical connector with six metal pins and a round front socket opening.

Close-up of a black panel-mount electrical connector with six metal pins and a round front socket opening.

Image similar

Mentor

Product type

Toggle switch

Casing/button colour

Black

Functions

latch

Lighting type

None

Connection

THT

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 6.54 / piece)

€ 6.54

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Toggle Switches

()

Technical specifications

Product type: Toggle switch

Casing/button colour: Black

Type: Toggle switch (toggle switch) , FEL THT technology.

Functions: latch

Lighting type: None

Material: PC

Contact material: Tin plated

Connection: THT

Number of pins: 2

Switching voltage: 60 V

Switching current (max.): 0.5 A

Min. temperature: -40 °C

Max. temperature: 85 °C

Length: 15.2 mm

Width: 10.1 mm

Height: 10.1 mm

CS: 2.54 mm

: IP50

Insulation resistance: 10¹⁰ Ω

Dim: (L x W x H) 15.2 x 10.1 x 10.1 mm

Industrial packaging: Yes

Type: 1847.1032

Documents & Downloads

Datasheet

Datasheet 3788276 Mentor 1847.1032 Toggle switch 60 V 0.5 A IP50 latch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3788276 Mentor 1847.1032 Toggle switch 60 V 0.5 A IP50 latch 1 pc(s)

Description

Connection tin plated, horizontal/horizontal orientation, resistance < 30 mΩ, IP protection class IP50, Insulation resistance: >10^10 Ω, Mechanical life: 2 x 10^4 operations, ambient temperature: -40°C ... +85°C

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

Connection tin plated, horizontal/horizontal orientation, resistance < 30 mΩ, IP protection class IP50, Insulation resistance: >10^10 Ω, Mechanical life: 2 x 10^4 operations, ambient temperature: -40°C ... +85°C

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
