Mentor M-Fibre RGB LED Module HighPower LED module Blue 3 W 2.3 V, 3.0 V, 3.1 V
Part number:
Item no:
Product type
HighPower LED module
Forward voltage U(F)
2.3 V
3.0 V
3.1 V
Power
3 W
Energy efficiency rating
n.rel.
Type
M-Fibre RGB LED Module
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Highlights & Details
M-Fibre RGB LED module, 3W
- Connector plug
- Horizontal alignment
- Ambient temperature: -20°C ... +70°C
- RGB
Technical specifications
- Product type
HighPower LED module
- Type
M-Fibre RGB LED Module
- Factory colour
Blue
- Forward voltage U(F)
2.3 V
3.0 V
3.1 V
- Operating current
350 mA
- Wavelength
623 nm
525 nm
462 nm
3 W
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Dim
(L x W x H) 122 x 38 x 20.2 mm
- Width
38 mm
- Height
20.2 mm
- Length
122 mm
n.rel.
Documents & Downloads
Datasheet
Datasheet 3788254 Mentor M-Fibre RGB LED Module HighPower LED module Blue 3 W 2.3 V, 3.0 V, 3.1 V
User & Safety Instructions
User & Safety Instructions 3788254 Mentor M-Fibre RGB LED Module HighPower LED module Blue 3 W 2.3 V, 3.0 V, 3.1 V
Description
The 3 Watt M-Fibre RGB LED module is specifically designed for use with M-Fibre side light fibers. The inside of the LED module mixes a mixing lens varying in diameter the light of the individual RGB LED chips in such a way that a constant color impression over the length of the side light fibers is ensured. When defining the thermal management and dimensioning of the heat sink, the life of the LED was given highest priority. When connected to a suitable plug socket, the coded ribbon cable provides optimum electrical connection. The modules can be fastened on a flat surface with two screws using mounting holes in the housing. The ferrule of the side light fiber is clipped into the half-shell geometry of the LED module and held in position by the securing clip even with the strongest vibrations. Customized mode adjustments are possible on request.
This text is machine translated.
This text is machine translated.
Hints

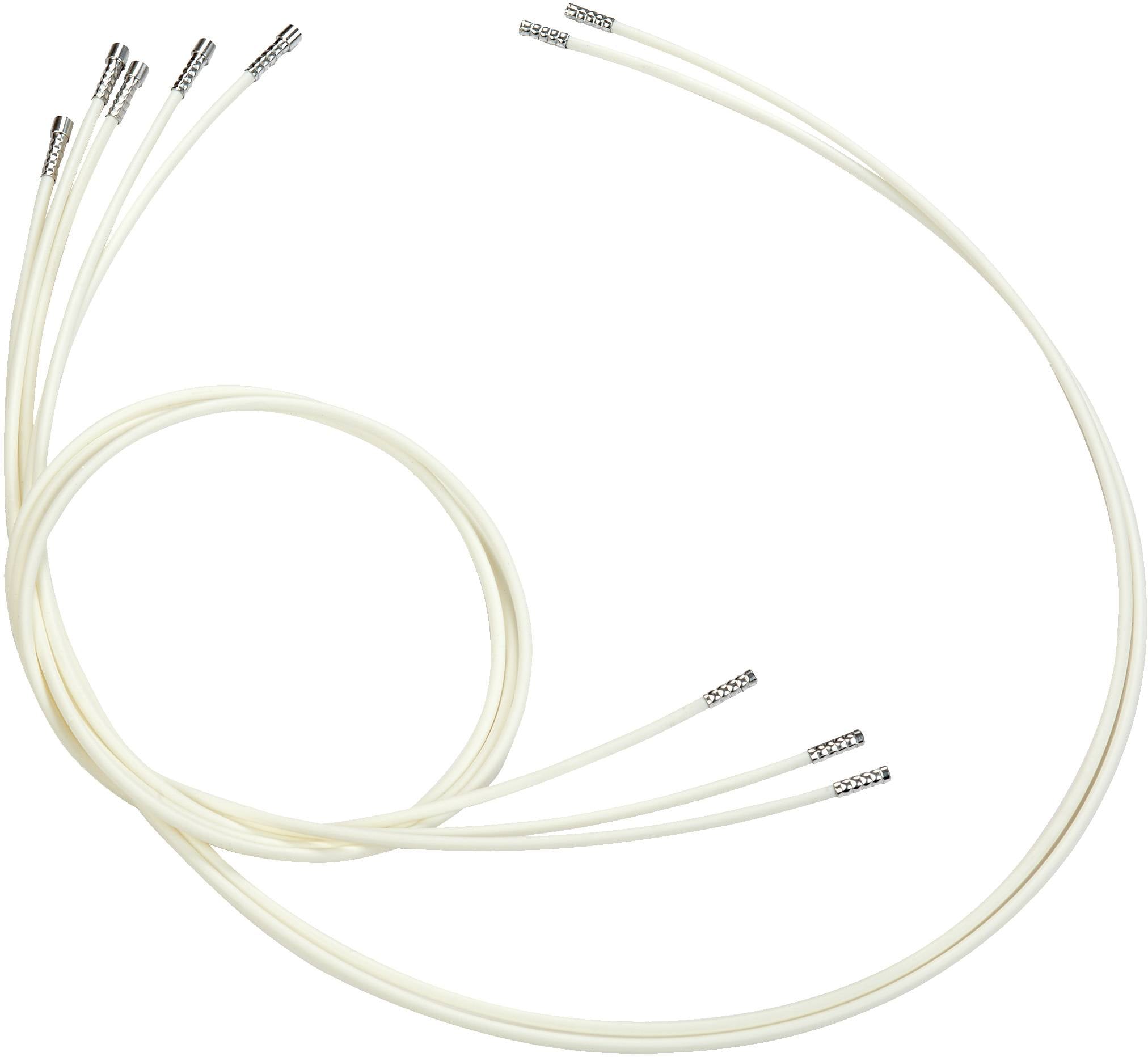

Figure shows other product variants or other products from the product family, if applicable.
