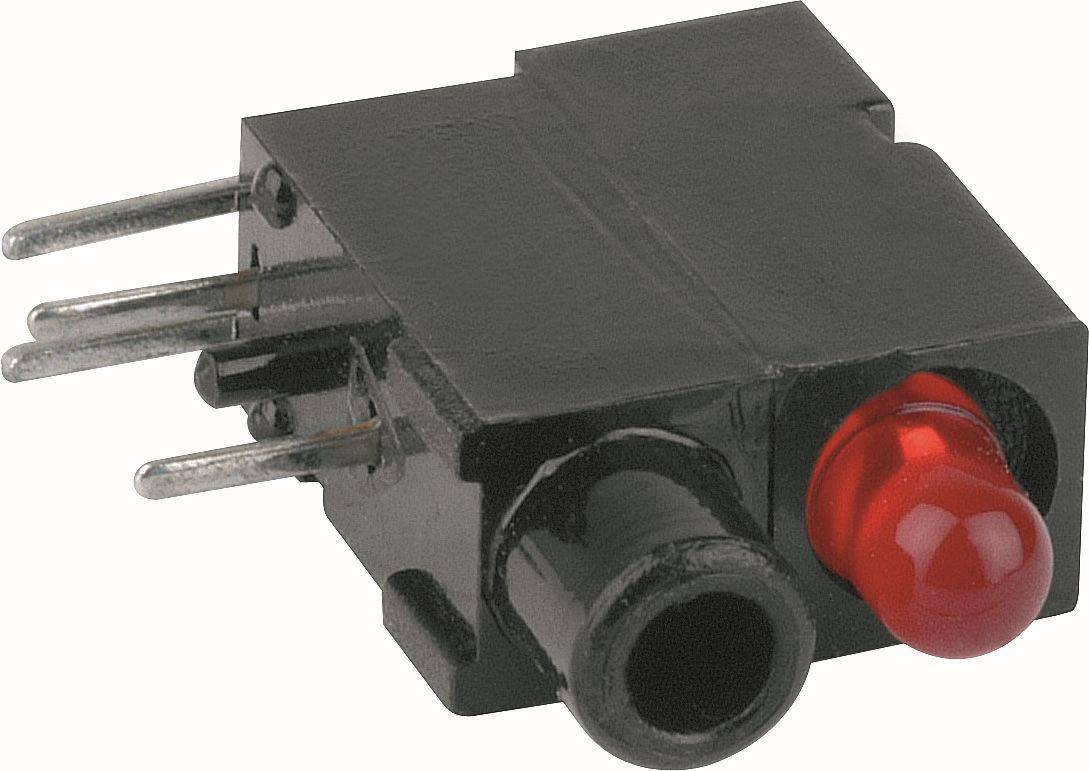

Close-up of a black electronic sensor module with three metal pins, a front-facing port, and a red indicator LED.

Close-up of a black electronic sensor module with three metal pins, a front-facing port, and a red indicator LED.

Image similar

Product type

Socket

Connector type

Socket, built-in

Nominal current - rounded value

500 mA

Outside Ø

3

Inside diameter

2

Datasheet (PDF)

Mentor

Fast track dispatch on Mon 19 Oct

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Switch jack

3
2

Technical specifications

Product type: Socket

Nominal current: 0.5 A

Connector type: Socket, built-in

Nominal current - rounded value: 500 mA

Outside Ø: 3

Inside diameter: 2

Connection: THT

Nominal voltage: 60 V

Content: 1 pc(s)

Manufacturer part #: 1816.2138

Type: Schaltbuchse

Factory colour: Green

Industrial packaging: Yes

Width: 5 mm

Height: 10 mm

Length: 11 mm

Temperature range: -40 ... +85 °C

Documents & Downloads

Datasheet

Datasheet 3788270 Mentor Schaltbuchse Socket Socket, built-in 3 2 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3788270 Mentor Schaltbuchse Socket Socket, built-in 3 2 1 pc(s)

Description

Connection tin plated, orientation horizontal, design with LED, continuous resistance: ≤ 30 mΩ, insulation resistance: >10^10 Ω, mechanical life: 2 x 10^4 switching cycles, ambient temperature: -40°C ... +85°C

This text is machine translated.

Hints

Figure shows other product variants or other products from the product family, if applicable.

Description

Connection tin plated, orientation horizontal, design with LED, continuous resistance: ≤ 30 mΩ, insulation resistance: >10^10 Ω, mechanical life: 2 x 10^4 switching cycles, ambient temperature: -40°C ... +85°C

This text is machine translated.

Hints

Figure shows other product variants or other products from the product family, if applicable.
