Metrel MI 3280 VDE tester kit
EAN:
Part number:
Item no:
Number
Total (€ 7,365.00 / piece)
€ 7,365.00
incl. VAT
14-day return policy included
Highlights & Details
Digital Transformer Analyzer - Standard Set
- Turn ratio diagnosis; phase deviation measurement; excitation current measurement; winding resistance measurement; Works with single or three phase transformers; IP 65 case closed, IP 54 case open; portable; Li-Ion battery;
Technical specifications
- Product type
VDE tester kit
Manufacturer's standards (no certificate)
- Interfaces
Bluetooth®
- Display type
LCD Touch
- Test procedure
automated
- Voltage supply
Rechargeable
- Memory
Yes
- Type
MI 3280
- Features
Touchscreen
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2536355 Metrel MI 3280 VDE tester kit
Information
Test Summary Report 2536355 Metrel MI 3280 VDE tester kit
Description

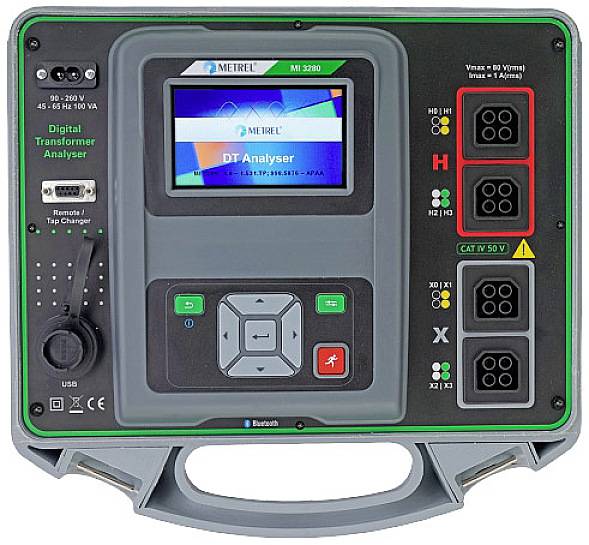

The Digital Transformer MI 3280 Analyzer is a portable battery (Li-Ion) powered test instrument designed for diagnosing the winding ratio, phase deviation, excitation current and winding resistance of individual and three-phase transformers. It has excellent IP protection: IP65 (lid closed), IP54 (case open). This allows the instrument to be used in harsh environments. The operation is simple and clear for the user without a special training.FOR advanced users THE AUTO SEQUENCES and visual inspections are available.
This text is machine translated.
This text is machine translated.
Features
- A 3.4" color LCD display with touch screen provides easy-to-read results and all associated parameters.The operations are straightforward and allow the user to operate the instrument without any special instructions.Test results can be stored on the instrument.PC software, which is part of the standard set, allows the transfer of measured results to the PC, where they can be analyzed or printed.Built-in help screens.Autotest sequences.Built-in charger and rechargeable batteries are standard accessories.Built-in BT communication with PC, Android tablet and smartphones is possible.PC SW Meterl ES Manager (MESM) for creating structures, uploading or downloading tests and results, an Autotest editor and for reporting.High degree of protection IP 65 (housing closed), IP 54 (cover open).
Scope of delivery
- Instrument MI 32804-wire test lead with Kelvin terminals, 2.5 m 4-pcs.USB cablePower cable;Soft carrying caseMeterl ES Manager PRO (optional)User manualCalibration certificate
Hints
Supplied with German license.
