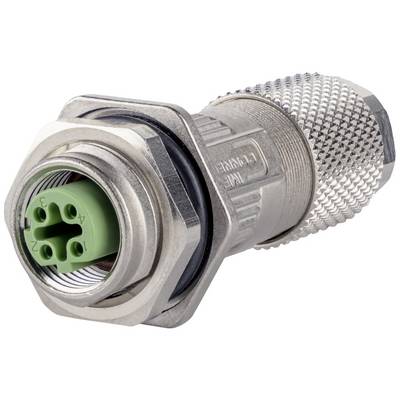

Metz Connect MMF881A115-0001 Connector Socket Total number of pins: 4 1 pc(s)
Product type
Connector
Connector type
Socket
Total no. of pins
4
Connection
M12 socket
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 14.99 / piece)
€ 14.99
incl. VAT
Only 7 Piece(s) available
Highlights & Details
M12 socket D-coded IP67, field mountable with flange
- Cable connectorM12 cable connectorM12 plug connectorM12 D-codedD-codedBTR Netcom
Technical specifications
- Type
MMF881A115-0001
- Product type
Connector
- Connector type
Socket
- Total no. of pins
4
- Connection
M12 socket
- Factory colour
Multicolour
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Contact material
Copper
- Case material
Diecast zinc
- Weight
0.032
- Manufacturer part #
MMF881A115-0001
- Number of pins
4
- Width
16.80 mm
- Height
16.80 mm
- Length
49 mm
- Feature
shielded
D-coded
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2860665 Metz Connect MMF881A115-0001 Connector Socket Total number of pins: 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2860665 Metz Connect MMF881A115-0001 Connector Socket Total number of pins: 4 1 pc(s)
Description
4-pin field-installable Cat.5e socket, M12 connector according to DIN EN 61076-2-101:2012 with mounting flange, 100 MBit fast Ethernet suitable according to IEEE 802.3an, connection of AWG 26/1 - 22/1; AWG 26/7 - 22/7 possible, full wire Cu-conductor diameter 0.41 - 0.64 mm, stranded wire Cu-conductor diameter 0.48 - 0.76 mm, wire diameter with insulation up to 1.6 mm, cable sheath from 6.0 to 9.7 mm, consists of only 2 parts, simplest construction - without connecting special tools, industrial-grade zinc die-cast housing, suitable for applications in the railway industry according to data sheet.
This text is machine translated.
This text is machine translated.
