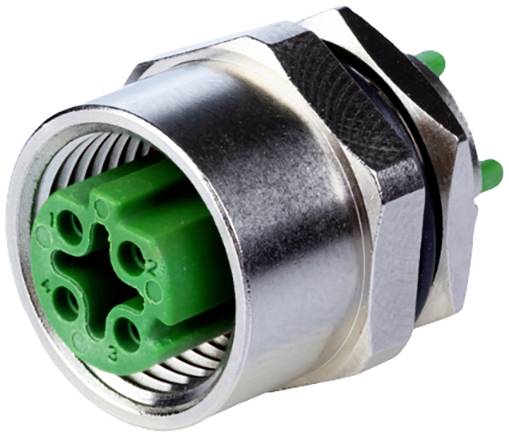

Metz Connect MMT361A115-0009 PCB terminal M12 Socket No. of pins (RJ): 4 1 pc(s)
Product type
PCB terminal
Connector type
Socket
Connector standard
Ethernet
Connection side A
M12
Connection side B
M12
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 20.99 / piece)
€ 20.99
incl. VAT
14-day return policy included
Highlights & Details
M12 PCB socket, D coded, 4 pin, IP67 not connected, potted
- M12 PCB socketM12 EthernetBTR Netcom
Technical specifications
- Dimensions (DxH) 16.50 x 20.50 mm
- Type
MMT361A115-0009
- Product type
PCB terminal
- Connector type
Socket
- Connector standard
Ethernet
- Connection side A
M12
- Connection side B
M12
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Outside Ø
16.50 mm
- Connection
M12 socket
- Factory colour
Metal
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
D
IP67
- Features
D-coded
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Manufacturer part #
MMT361A115-0009
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2861146 Metz Connect MMT361A115-0009 PCB terminal M12 Socket No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2861146 Metz Connect MMT361A115-0009 PCB terminal M12 Socket No. of pins (RJ): 4 1 pc(s)
Description
PCB socket M12, Cat. 5, 4-pin, D-coded in accordance with IEC 61076-2-101, 100 MBit Fast Ethernet suitable in accordance with IEEE 802.3an, wave-solderable, vertical plug-in direction, contact carrier green, protection class IP67 in not connected state, suitable for applications in the railway industry in accordance with data sheet.
This text is machine translated.
This text is machine translated.
