Highlights & Details

M12 PCB socket, X coded, 8 pin, IP67, rear panel fitting, cast

M12 PCB socketM12 EthernetRear panelBTR Netcom

Technical specifications

Dimensions (DxH) 21.50 x 20.50 mm

Packaging type: Piece

Type: MMT371A3B5-0009

Product type: PCB terminal

Connector type: Socket

Connector standard: Ethernet

Connection side A: M12

No. of pins: 8

Nominal voltage: 60 V DC

Nominal current: 0.5 A

Nominal current - rounded value: 500 mA

Outside Ø: 21.5 mm

Connection: Socket

Factory colour: Metal

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: X

: IP67

Features: Suitable for railway use

Min. temperature: -25 °C

Max. temperature: +85 °C

Manufacturer part #: MMT371A3B5-0009

Content: 1 pc(s)

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connector standard

Metz Connect MMT371A3B5-0009 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

Metz Connect MMT371A3B5-0009 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

Item no:2861151

Available soon

Conrad Electronic

This article

Ethernet

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

Metz Connect MMT361A315 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

Metz Connect MMT361A315 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

Item no:2860676

Fast track dispatch on Thu 29 Oct

20 Piece(s)Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Metz Connect MMT361A315-0001 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s)

Metz Connect MMT361A315-0001 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s)

Item no:2860677

Available soon

Conrad Electronic

Ethernet

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

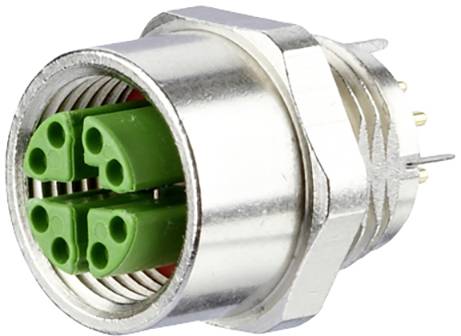

Metz Connect MMT361A315-0009 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

Metz Connect MMT361A315-0009 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

Item no:2861150

Available soon

Conrad Electronic

Ethernet

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

Metz Connect MMT371A3B5 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s)

Metz Connect MMT371A3B5 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s)

Item no:2860674

Available soon

Conrad Electronic

Ethernet

Piece(s)

Minimum order quantity: 10

Multiple: 10

€ 33.47^*

Metz Connect MMT371A3B5-0001 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s)

Metz Connect MMT371A3B5-0001 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s)

Item no:2860675

Available soon

Conrad Electronic

Ethernet

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Metz Connect MMT471A315 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s)

Metz Connect MMT471A315 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s)

Item no:2860678

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

Ethernet

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

Metz Connect MMT471A315-0002 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

Metz Connect MMT471A315-0002 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

Item no:2860680

Fast track dispatch on Thu 29 Oct

18 Piece(s)Conrad Electronic

Ethernet

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

Metz Connect MMT471A315-0003 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Single

Metz Connect MMT471A315-0003 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Single

Item no:2860681

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

Ethernet

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

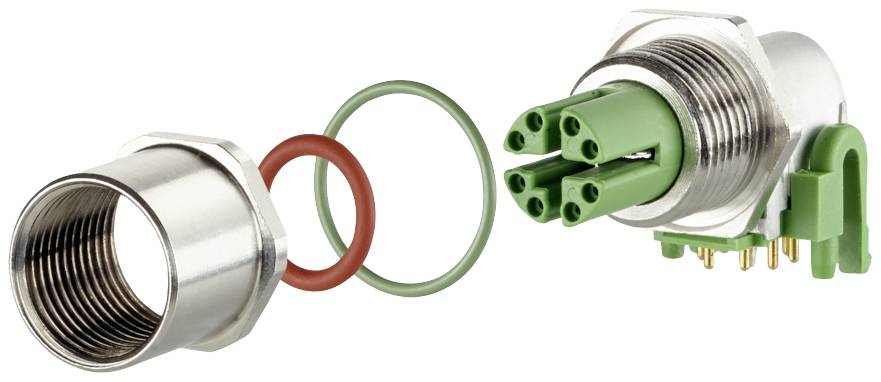

Metz Connect MMT471A315-0004 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Single

Metz Connect MMT471A315-0004 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Single

Item no:2860682

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

Ethernet

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

Documents & Downloads

Datasheet

Datasheet 2861151 Metz Connect MMT371A3B5-0009 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2861151 Metz Connect MMT371A3B5-0009 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece

Description

M12 PCB socket, 8-pin, X-coded in accordance with IEC 61076-2-109, rear wall mounting, 10-Gbit Ethernet suitable in accordance with IEEE 802.3an, wave-solderable, plug-in direction vertical, contact carrier green, protection class IP67 not connected, encapsulated, suitable for applications in the railway industry in accordance with data sheet.

This text is machine translated.

Description

M12 PCB socket, 8-pin, X-coded in accordance with IEC 61076-2-109, rear wall mounting, 10-Gbit Ethernet suitable in accordance with IEEE 802.3an, wave-solderable, plug-in direction vertical, contact carrier green, protection class IP67 not connected, encapsulated, suitable for applications in the railway industry in accordance with data sheet.

This text is machine translated.
