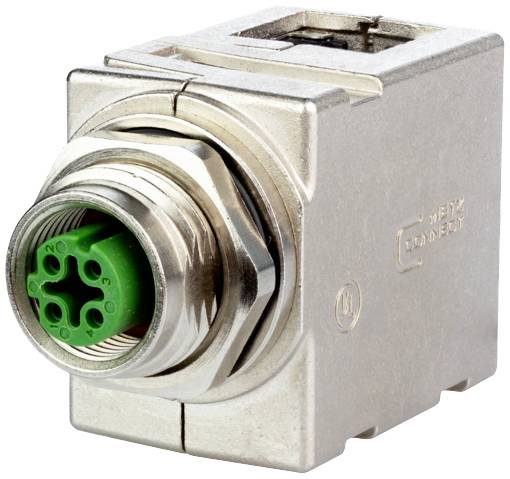

A rectangular, metallic connector with a green internal component, designed for industrial or electronic applications.

A rectangular, metallic connector with a green internal component, designed for industrial or electronic applications.

Metz Connect

Product type

Sensor/actuator built-in connector

Connector type

Switchboard grommet

Connector standard

RJ45

Connection side A

M12

Connection side B

RJ45

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Enclosure gland M12 D-coded to RJ45 - angled

Panel adapterRJ45 adapterRJ45 adapterM12 D-codedM12-RJ45BTR Netcom

Technical specifications

Dimensions (LxWxH) 46.35 x 21.60 x 29 mmHalogen-free

Packaging type: Piece

Type: MWN911A115

Product type: Sensor/actuator built-in connector

Connector type: Switchboard grommet

Connector standard: RJ45

Connection side A: M12

Connection side B: RJ45

Nominal voltage: 60 V DC

Nominal current: 0.5 A

Nominal current - rounded value: 500 mA

Connection: M12 socket

Factory colour: Metal

Thread type connection side: M12

Coding: D

: IP67

Features: Shielded

Manufacturer part #: MWN911A115

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2860661 Metz Connect MWN911A115 Sensor/actuator built-in connector M12 Switchboard grommet 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2860661 Metz Connect MWN911A115 Sensor/actuator built-in connector M12 Switchboard grommet 1 pc(s) Piece

Description

Enclosure gland M12 to RJ45, socket M12 D-coded, IP67, according to IEC/PS 61076-2-101, socket RJ45, IP20, according to IEC 60603-7-51, 100 MBit Fast Ethernet suitable according to IEEE 802.3an, Cat.5, mating direction angled, robust casing made of zinc die-cast, nickel-plated, suitable for applications in the railway industry according to data sheet.

This text is machine translated.

Description

Enclosure gland M12 to RJ45, socket M12 D-coded, IP67, according to IEC/PS 61076-2-101, socket RJ45, IP20, according to IEC 60603-7-51, 100 MBit Fast Ethernet suitable according to IEEE 802.3an, Cat.5, mating direction angled, robust casing made of zinc die-cast, nickel-plated, suitable for applications in the railway industry according to data sheet.

This text is machine translated.
