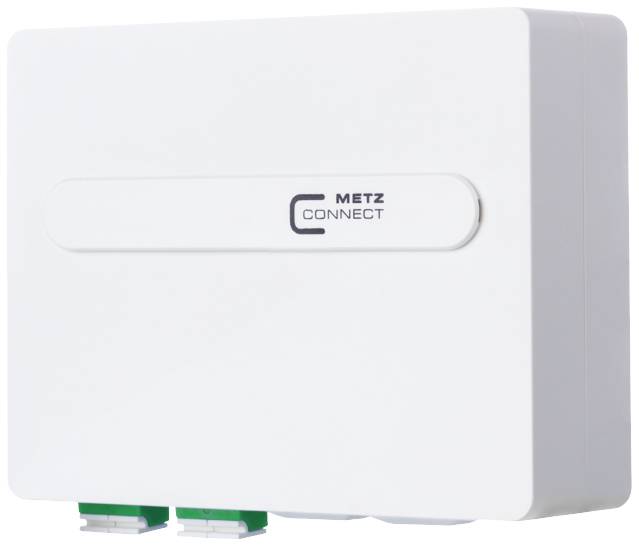

Metz Connect OpDAT ADT VIK 2xLC-D APC OS2 FO splice box LC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 3 Piece(s) available
Highlights & Details
OpDAT ADT VIK 2xLC-D APC OS2
- OpDAT ADT VIK
- 2 X LC-D APC OS2
Technical specifications
- Product type
FO splice box
LC
- Patch panel design
Equipped
- Width
100 mm
- Height
35 mm
- Length
85 mm
- Version
Adapter
- Factory colour
Multicolour
- Cable use
PC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2899175 Metz Connect OpDAT ADT VIK 2xLC-D APC OS2 FO splice box LC
User & Safety Instructions
User & Safety Instructions 2899175 Metz Connect OpDAT ADT VIK 2xLC-D APC OS2 FO splice box LC
Description
Compact, universal glass-fiber connection unit for the mounting at flush-mounted or hollow wall sockets, for the surface mounting or mounting rail mounting, for connecting pre-fabricated installation cables with mini-breakout cable or for integrating Pigtail, equipped with laser protection couplings, not assigned outbreaks with blind plugs, cable entry options: Back, top, bottom, left or right, With integrated clips for mounting rail in two directions, swiveling removable splice box for up to 8 crimp splice protectors, cover removable without tools, plug-in direction 90°, color of cover plates pure white RAL 9010, variants: Equipped with SC APC, SC UPC, LC-D APC or LC-D UPC couplers
This text is machine translated.
This text is machine translated.
Features
- Compact, universal glass fiber connection unit for mounting in flush- or hollow wall sockets
- For surface or mounting rail mounting
- For connection of pre-fabricated installation cables with mini-breakout cables or for mounting pigtail
- Equipped with couplings with laser protection
- Unoccupied outbursts are sealed with filler plugs
- Cable input options: Rear, top, bottom, left or right
- With built-in clips for rail mounting in two directions
- Swivelling removable splice box for up to 8 crimp splice protectors
- Lid can be removed without tools
- Plug-in direction 90°
- Colour of the cover plates pure white RAL 9010
- Variants: Equipped with SC APC, SC UPC, LC-D APC or LC-D UPC couplings
Scope of delivery
- OpDAT ADT VIK 2xLC-D APC OS2
