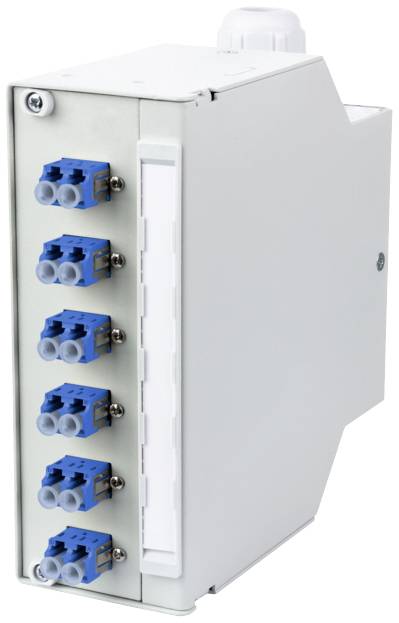

Metz Connect OpDAT REGpro splice 6xLC-Duplex OS2 FO patch panel 6 ports LC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Only 5 Piece(s) available
Highlights & Details
OpDAT Regpro split 6xLC-duplex OS2
- OpDAT REGpro split
- 6xLC duplex OS2
Technical specifications
- Product type
FO patch panel
- Port
6 ports
LC
- Patch panel design
Equipped
- Width
134 mm
- Height
137 mm
- Length
50 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2899177 Metz Connect OpDAT REGpro splice 6xLC-Duplex OS2 FO patch panel 6 ports LC
User & Safety Instructions
User & Safety Instructions 2899177 Metz Connect OpDAT REGpro splice 6xLC-Duplex OS2 FO patch panel 6 ports LC
Description
Compact distribution housing for TH35 rail systems, suitable for splicing installation cables, quicker installation by pigtails prepared for splicing, equipped with LC-D couplings and LC-pigments, Pigtails with compact wire ø 0.9 mm, 12 colors, secondary and primary coating as straight colored, length 2.0 m, Pigtails in splice box with crimp splice holders inserted and offset, Pigtails cleaned and plugged into couplings, front area with labeling strips, different mounting positions possible on top hat rail system, cable inlet from top or bottom, straight or angled, with M20 screw connection (up to 2 possible), cable entry M20 with strain relief included in delivery, free coupling recesses equipped with blind covers, casing made of sheet steel, powder-coated (light gray, RAL 7035), variants: Equipped with a maximum of 6 LC-D couplings
This text is machine translated.
This text is machine translated.
Features
- Compact distributor housing for TH35 rail systems
- Suitable for splitting installation cables
- Faster installation through pigtails prepared for splicing
- Built-in LC-D couplings and LC pigments
- Pigtail with compact wire ø 0.9 mm
- 12 colours:
- Secondary and primary coating, dyed the same
- Length 2.0 m
- Pigtails in splice stand with crimp splice holders inserted and set off
- Pigtails cleaned and plugged into couplers
- Front area with labeling strips
- Various mounting positions possible on the DIN rail system
- Cable routing from top or bottom, straight or diagonal with M20 screw connection (up to 2 possible)
- A M20 cable entry with strain relief is included in the delivery
- Free coupler pocket with blind covers fitted
- Powder-coated steel plate housing (light gray RAL 7035)
- Variants: Fitted with maximum 6 LC-D couplings
Scope of delivery
- OpDAT Regpro split 6xLC-duplex OS2
