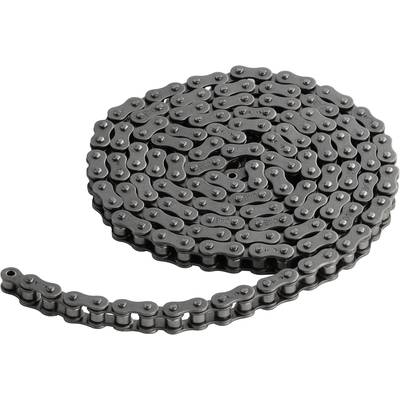

Modelcraft Steel Roller chain 1 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 18.48
-18 %
€ 15.12
plus VAT.
Technical specifications
- Product type
Roller chain
- Material
Steel
- Length
1 m
- Content
1 pc(s)
- Material (details)
Steel
- No. of cogs (details)
-
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 237167 Modelcraft Steel Roller chain 1 m
Description
The individual parts are hardened and case hardened. Closed roller.
Features
- Internal diameter x pitch: 6 x 2.8 mm
- internal width: 4.1 mm
- roll Ø: 4 mm
- Bolt length: 7.4 mm
- supernatant: 2.9 mm
- breaking load: Approx. 300 kg.
Hints
10 teeth (Part no. 23 71 32-62)
15 teeth (Part no. 23 71 36-62)
20 teeth (Part no. 23 71 40-62)
25 teeth (Part no. 23 71 49-62)
30 teeth (Part no. 23 71 59-62)
35 teeth (Part no. 23 71 69-62)
40 teeth (Part no. 23 71 79-62)
45 teeth (Part no. 23 71 89-62).
